ZCM

-Pump

1. Cast iron pump body and support under
    special anti-rust treatment

2. Stainless steel impeller/Brass impeller

3. AISI 304 shaft

4. Max.liquid temperature: +40 ℃

5. Max.suction: +8 m

-Motor

1. High efficiency bearing

2. Motor with copper winding

3. Built-in thermal protector for single phase motor

4. Insulation class: F

5. Protection class: IPX4

6. Max.ambient temperature: +40℃

MODELPOWERAMPEREMax.FLOW
(L/Min)
Max.HEAD
(m)
SUCT.MAX
(m)
PIPEG.W.
(Kg)
Q(m3/h)0121824303648607296
KwHpQ(L/min)0200300400500600800100012001600
ZCM 1100BF21.11.58.555019.582″×2″21H
(m)
19.518.516.5138.5-----
ZCM 1100BF31.11.58.590012.583″×3″2312.512.521.111.510.59.57.1---
ZCM 1500BF21.52115502282″×2″302220.518.314.59.5-----
ZCM 1500BF31.5211100014.583″×3″3114.514.31413.512.8129.96--
ZCM 2200BF32.2315110017.583″×3″4017.517.317.116.51615.214.210--

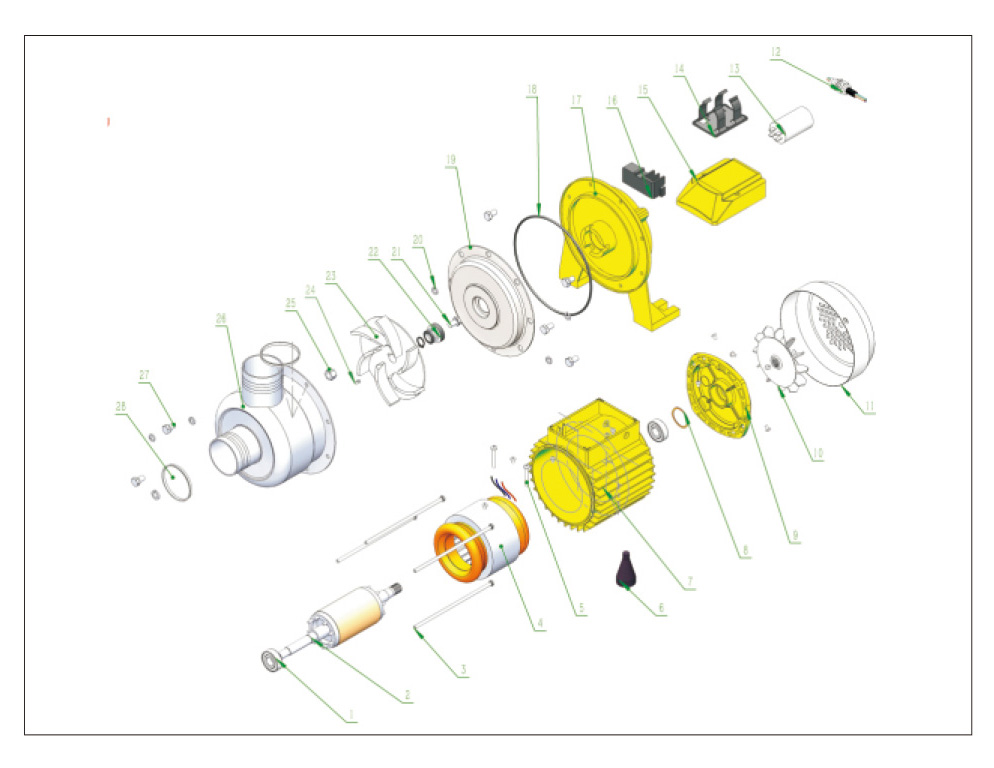

N0.DescriptionN0.DescriptionN0.Description
1Screw18Cable35Key
2Screw19Stator36Mechanical seal
3Flange20Motor end cover37Oil seal
4Flange washer21Fan38Flange washer
5Pump body22Screw39Air screw
6Impeller nut23Fan cover40Washer
7Plain washer24Motor tie-rod41
8Impeller25Capacitor42
9O-ring26Capacitor holder43
10Splash guard27Screw44
11Motor front bracket28Wire sheath45
12Plain washer29Adjusting ring46
13Screw30Screw47
14Bearing31Terminal box48
15Rotor32Handle sheath49
16Bearing33Screw50
17Foot34Terminal board51
