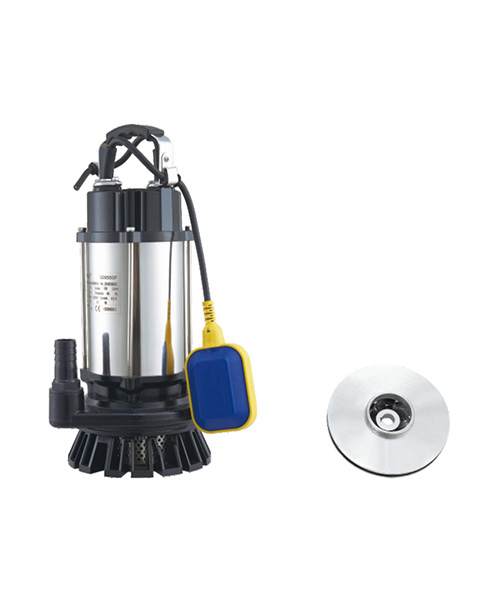

From ltaly to serve the world
Cast iron pump body under special
anti-rust treatment
Max.immersion depth: 5 m
Max.liquid temperature: + 40 ℃
Liquid pH value: 6.5-8
Copper winding
Built-in thermal protector
Stainless steel welded shaft
Insulation class: B
Protection class: IP68

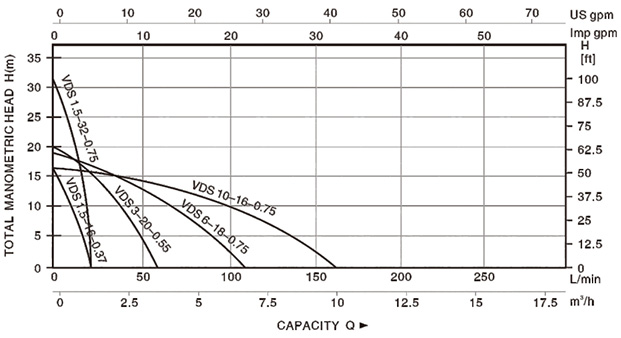

MODEL | POWER | AMPERE | PIPE | RATEDFLOW (m³/h) | RATEDHEAD (m) | G. W (kg) | PACKING DIMENSION (mm) | |
KW | HP | |||||||

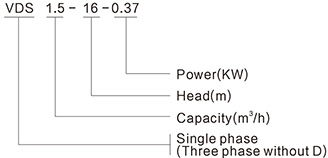

VDS 1.5-16-0.37 | 0.37 | 0.5 | 2.5 | 1" | 1.5 | 16 | 10 | 410×170×235 |
VDS3-20-0.55 | 0.55 | 0.75 | 3.5 | 1" | 3 | 20 | 14 | 415×190×230 |
VDS6-18-0.75 | 0.75 | 1 | 6.2 | 1.5" | 6 | 18 | 16 | 420×200×220 |
VDS1.5-32-0.75 | 0.75 | 1 | 6.5 | 1" | 1.5 | 32 | 16 | 420×200×220 |
VDS 10-16-0.75 | 0.75 | 1 | 6.8 | 2" | 10 | 16 | 16 | 430×200×250 |

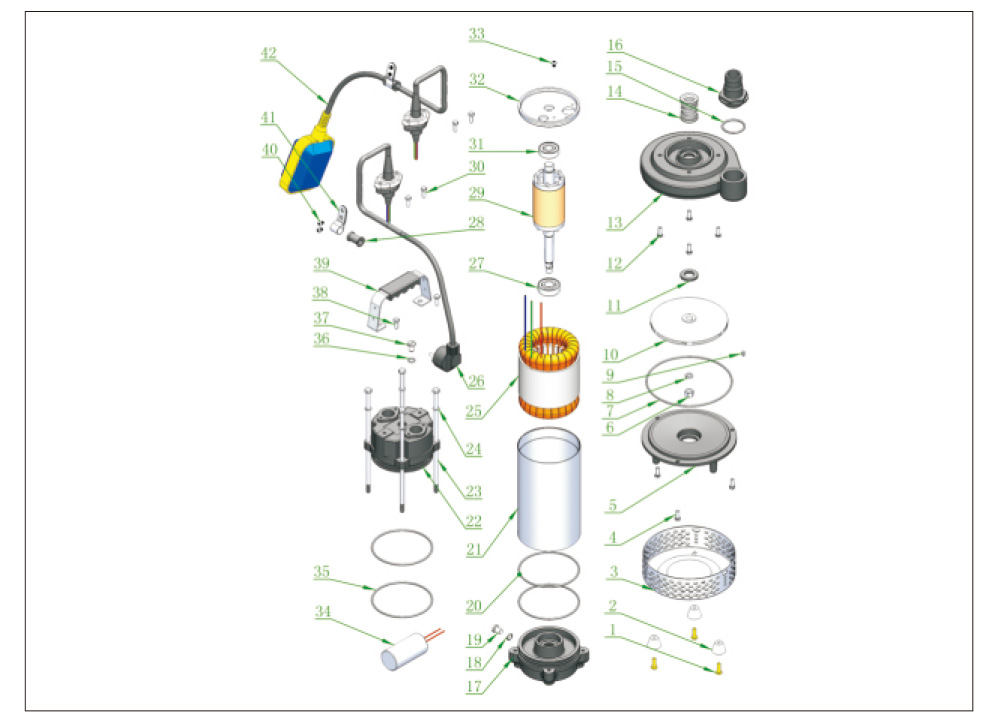

N0. | Description | N0. | Description | N0. | Description |
---|---|---|---|---|---|
1 | Screw | 18 | O-ring | 35 | O-ring |
2 | Foot sheath | 19 | Screw | 36 | Washer |
3 | Strainer | 20 | O-ring | 37 | Screw |
4 | Screw | 21 | Motor case | 38 | Screw |
5 | Pump foot | 22 | Upper cover | 39 | Handle |
6 | Impeller nut | 23 | Hexagon screw | 40 | Screw |
7 | O-ring | 24 | Washer | 41 | Cable sheath |
8 | Plain washer | 25 | Stator | 42 | Float switch |
9 | Key | 26 | Plug | 43 | |
10 | Impeller | 27 | Bearing | 44 | |
11 | Oil seal | 28 | Rubber cable sheath | 45 | |
12 | Screw | 29 | Rotor | 46 | |
13 | Pump base | 30 | Screw | 47 | |
14 | Mechanical seal | 31 | Bearing | 48 | |
15 | O-ring | 32 | Upper lid | 49 | |
16 | Outlet | 33 | Screw | 50 | |
17 | Oil chamber | 34 | Capacitor | 51 |
