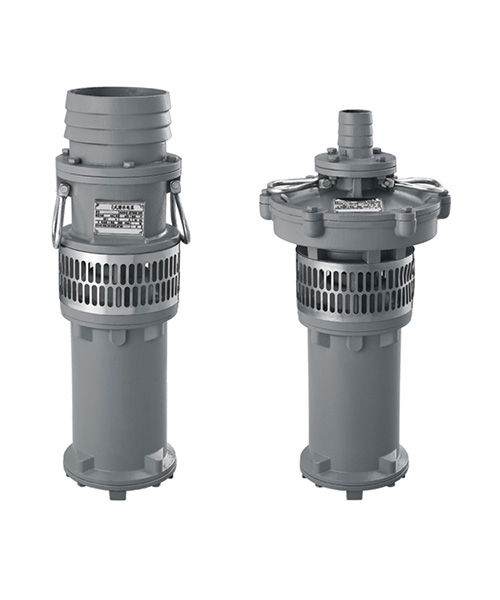

QY

TECHNICAL DATA:

Application Range

◎ This series of products is suitable for farmland irrigation,drainage,garden

sprinkler irrigation,underground water pumping,water tower water supply,

urban construction water and other purposes.

Working Conditions

◎ Maximum liquid temperature +40℃

◎ PH level from 6.5-8.5

◎ Maximum sand content is 0.1%.Passage of suspended solids up to 0.2mm

◎ Power frequency is 50Hz.Nominal voltage is 220VAC for single phase and

380VAC for three phase with the range from -10% to 10%

◎ Immersion depth from 0.5m-5m

Motor and Pump Body

◎ The water pump is located on the upper part of the pump,which is a

centrifugal/mixed-flow/axial-flow structure;the motor is located at the lower

part of the pump,which is an oil-filled three-phase asynchronous motor;

O-shaped oil-resistant rubber sealing ring is used for static sealing.

◎ Impeller:Cast lron

◎ Mechanical seal:Carbon/Ceramic

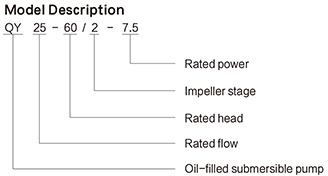

MODEL	POWER		Rated flow	Rated head	Voltage	Current	Speed	Diameter	Weight	Sco pe of use	Size
MODEL	KW	HP	m³/h	m	V	A	r/ min	mm	kg	m	mm
QY15-26-2.2	2.2	3	15	26	380	5.4	3000	51	42	0-30	φ255×570
QY25-17-2.2	2.2	3	25	17	380	5.4	3000	64	41	0-20	中255×565
QY38-14-2.2	2.2	3	38	14	380	5.4	3000	76	42	/	/
QY65-7-2.2	2.2	3	65	7	380	5.4	3000	102	44	0-10	φ245×610
QY100-4.5-2.2	2.2	3	100	4.5	380	5.4	3000	152	41	1.5-4.5	φ245×640
QY15-36-3	3	4	15	36	380	7.2	3000	51	43	0-30	φ280×600
QY25-26-3	3	4	25	26	380	7.2	3000	64	45	0-30	φ255×600
QY40-16-3	3	4	40	16	380	7.2	3000	76	44	0-22	φ260×615
QY65-10-3	3	4	65	10	380	7.2	3000	102	46	0-17	φ240×635
QY100-6-3	3	4	100	6	380	7.2	3000	152	/	1.5-6	φ245×660
QY20-36/2-3	3	4	20	36	380	7.2	3000	65	/	/	/
QY10-51/3-3	3	4	10	51	380	7.2	3000	51	61	45-60	245×705
QY160-4-3	3	4	160	4	380	7.2	3000	152	51	1.5-4	245×690
QY30-30-3.7	3.7	5	30	30	380	8.7	3000	64	59	18-31	625×275
QY65-14-4	4	5.5	65	14	380	9.3	3000	102	59	8-20	270×680
QY40-21-4	4	5.5	40	21	380	9.3	3000	76	55	0-26	260×655
QY100-9-4	4	5.5	100	9	380	9.3	3000	152	61	0-14	255×700
QY10-60/2-4	4	5.5	10	60	380	9.3	3000	51	66	45-61	675×260
QY200-4-4	4	5.5	200	4	380	9.3	3000	203	60	2.5-4	2245×745
QY20-40/2-4	4	5.5	20	40	380	9.3	3000	64	64	0-48	255×690
QY40-28-5.5	5.5	7.5	40	28	380	12.6	3000	76	79	19-34	275×690
QY100-13-5.5	5.5	7.5	100	13	380	12.6	3000	152	86	0-19	265×750
QY10-83/3-5.5	5.5	7.5	10	83	380	12.6	3000	51	106	62-85	280×970
QY25-40-5.5	5.5	7.5	25	40	380	12.6	3000	64	77	33-43	285×690
QY65-18-5.5	5.5	7.5	65	18	380	12.6	3000	102	84	0-19	265×735
QY160-8-5.5	5.5	7.5	160	8	380	12.6	3000	152	77	1.5-8	265×790
QY200-6-5.5	5.5	7.5	200	6	380	12.6	3000	203	85	0-6	270×785
QY250-5-5.5	5.5	7.5	250	5	380	12.6	3000	203	79	3.5-5	275×815
QY350-3.5-5.5	5.5	7.5	350	3.5	380	12.6	3000	203	79	2-3.5	275×820
QY10-110/4-7.5	7.5	10	10	110	380	16.8	3000	51	14/	84-115	270×1060
QY15-95/4-7.5	7.5	10	15	95	380	16.8	3000	64	128	80-98	270×1080
QY18-84/4-7.5	7.5	10	18	84	380	16.8	3000	64	128	70-88	275×1065
QY25-60/2-7.5	7.5	10	20	60	380	16.8	3000	64	101	45-66	275×825
QY65-25-7.5	1.5	10	65	20	380	16.8	3000	102	yo	0=26	265×790
QY80-20-7.5	1.5	10	80	20	380	16.8	3000	102	95	0-24	270×750

MODEL	POWER		Rated flow	Rated head	Voltage	Current	Speed	Diameter	Weight	Scope of use	Size
MODEL	KW	HP	m³/h	m	V	A	r/ min	mm	kg	m	mm
QY40-38-7.5	7.5	10	40	38	380	16.8	3000	76	86	28-44	295×735
QY50-30-7.5	7.5	10	50	30	380	16.8	3000	76	90	0-32	280×760
QY100-17-7.5	7.5	10	100	17	380	16.8	3000	152	99	0-25	270×800
QY160-11-7.5	7.5	10	160	11	380	16.8	3000	152	104	2.5-11	270×885
QY200-9-7.5	7.5	10	200	9	380	16.8	3000	203	104	3-9	270×900
QY250-7-7.5	7.5	10	250	7	380	16.8	3000	203	91	3-7	270×860
QY350-7-11	11	15	350	7	380	24.3	3000	203	102	2.5-7	280×825
QY450-6-11	11	15	450	6	380	24.3	3000	253	116	2-6	315×1030
QY10-165/6-11	11	15	10	165	380	24.3	3000	51	151	130-170	270×1200
QY15-142/6-11	11	15	15	142	380	24.3	3000	64	153	130-157	270×1200
QY25-90/3-11	11	15	25	90	380	24.3	3000	64	122	68-95	275×925
QY40-56/2-11	11	15	40	56	380	24.3	3000	76	107	0-65	275×835
QY65-42/2-11	11	15	65	42	380	24.3	3000	102	111	0-54	280×885
QY100-25-11	11	15	100	25	380	24.3	3000	102	104	0-40	295×820
QY18-126/6-11	11	15	18	126	380	24.3	3000	64	122	68-95	274×925
QY600-4.5-11/4P	11	15	600	4.5	380	24.3	1500	356	190	2-4.5	440×1250
QY25-120/3-15	15	20	25	120	380	33	3000	64	194	100-132	325×1185
QY40-84/3-15	15	20	40	84	380	33	3000	76	173	67-97	325×1030
QY65-60/3-15	15	20	65	60	380	33	3000	102	177	18-78	325×1120
QY100-36-15	15	20	100	36	380	33	3000	102	157	0-42	360×910
QY250-14-15	15	20	250	14	380	33	3000	203	161	0-29	320×1075
QY160-23-15	15	20	160	23	380	33	3000	152	162	0-39	350×990
QY600-6.5-15/4P	15	20	600	6.5	380	33	1500	356	220	1-6.5	440×1320
QY80-50-18.5	18.5	25	80	50	380	40.4	3000	102	170	0-53	335×950
QY800-6-18.5/4P	18.5	25	800	6	380	40.4	1500	356	280	1-6	440×1285
QY15-200/10-18.5	18.5	25	15	200	380	40.4	3000	51	249	0-212	320×1490
QY25-135/3-18.5	18.5	25	25	135	380	40.4	3000	64	203	105-142	330×1225
QY65-69/3-18.5	18.5	25	65	69	380	40.4	3000	102	192	0-87	325×1125
QY160-28-18.5	18.5	25	160	28	380	40.4	3000	152	176	0-42	350×1030
QY250-18-18.5	18.5	25	250	18	380	40.4	3000	203	176	0-33	320×1115
QY65-84/3-22	22	30	65	84	380	48.1	3000	102	223	0-110	330×1270
QY200-26-22	22	30	200	26	380	48.1	3000	152	188	0-38	325×1145
QY25-180/4-22	22	30	25	180	380	48.1	3000	64	259	114-183	330×1335
QY40-114/3-22	22	30	40	114	380	48.1	3000	76	232	70-127	330×1295
QY800-7.5-22/4P	22	30	800	/.5	380	48.1	1500	356	295	1-7.5	440×1325
