From ltaly to serve the world
Max.immersion depth: 5 m
Max.liquid temperature: +40 ℃
Liquid pH value: 4-10
Liquid kinematic viscosity: 7×10-7~23×10-6m2/s
Max.liquid density: 1.2×103kg/m3
Copper winding
Built-in thermal protector
Stainless steel welded shaft
Insulation class: B
Protection class: IP68

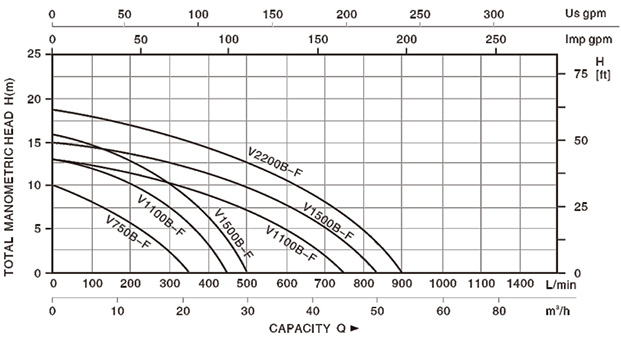

MODEL | POWER | AMPERE | OUTLET (inch) | VOLTAGE (V/HZ) | MAX. FLOW (L/MIN) | MAX. HEAD (M) | G. W. (Kg) | DIMENSIONS. (mm) | |
KW | HP | ||||||||

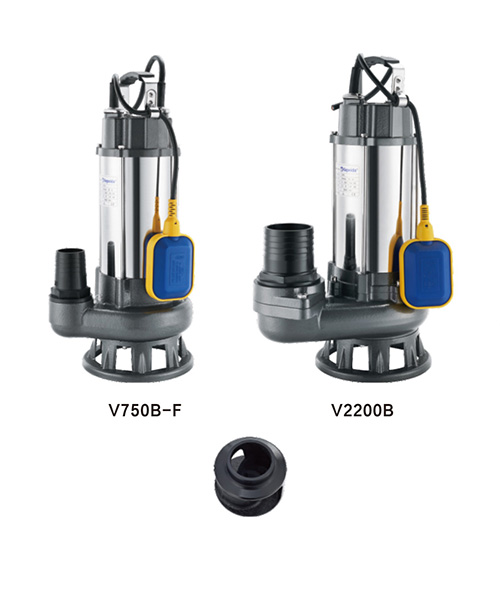

V750B-F | 0.75 | 1.0 | 3.3 | 2" | 220/50 | 350 | 10 | 16.5 | 460×225×215 |
V1100B-F2 | 1.1 | 1.5 | 6 | 2" | 220/50 | 450 | 13 | 17.03 | 485×225×215 |
V1500B-F2 | 1.5 | 2.0 | 7.5 | 2" | 220/50 | 500 | 16 | 19.8 | 510×225×215 |
V1100B-F3 | 1.1 | 1.5 | 6.8 | 3" | 220/50 | 760 | 13 | 21 | 485×300×215 |
V1500B-F3 | 1.5 | 2.0 | 8 | 3" | 220/50 | 830 | 15 | 22 | 510×300×215 |
V2200B-F | 2.2 | 3.0 | 10 | 3" | 220/50 | 900 | 18 | 31.2 | 540×320×230 |

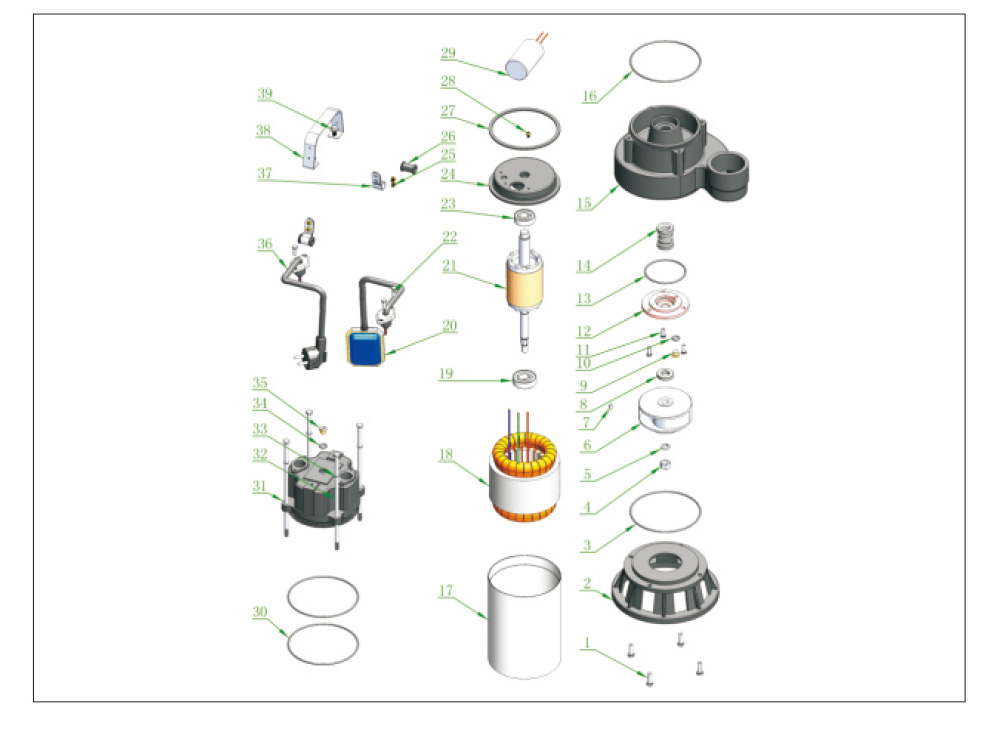

N0. | Description | N0. | Description | N0. | Description |
---|---|---|---|---|---|
1 | Screw | 18 | Stator | 35 | Screw |
2 | Pump foot | 19 | Bearing | 36 | Cable and plug |
3 | O-ring | 20 | Float switch | 37 | Cable sheath |
4 | Impeller nut | 21 | Rotor | 38 | Handle |
5 | Plain washer | 22 | Screw | 39 | Screw |
6 | Impeller | 23 | Bearing | 40 | |
7 | Key | 24 | Motor rear cover | 41 | |
8 | Oil seal | 25 | Screw | 42 | |
9 | Screw | 26 | Rubber sheath | 43 | |
10 | Washer | 27 | Rubber washer | 44 | |
11 | Screw | 28 | Screw | 45 | |
12 | Oil chamber cover | 29 | Capacitor | 46 | |
13 | O-ring | 30 | O-ring | 47 | |
14 | Mechanical seal | 31 | Screw | 48 | |
15 | Pump base | 32 | Top cover | 49 | |
16 | O-ring | 33 | Washer | 50 | |
17 | Motor case | 34 | O-ring | 51 |
