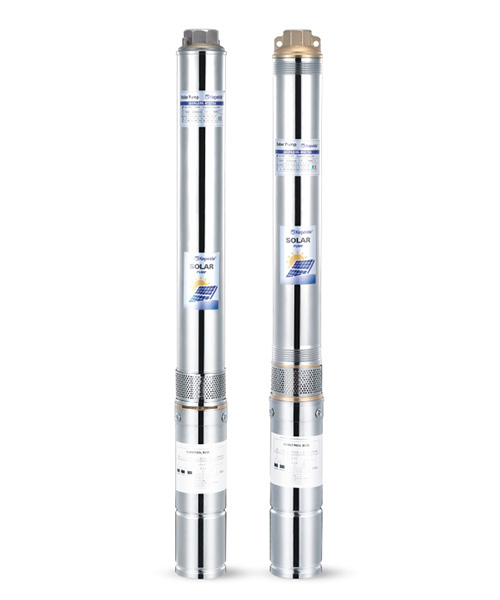

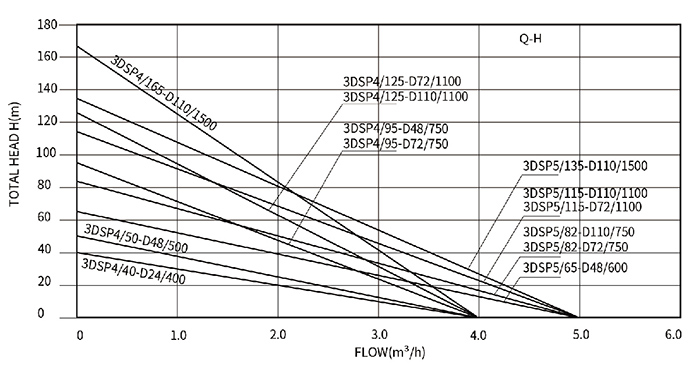

3DSP(4/5)

rpm:4000

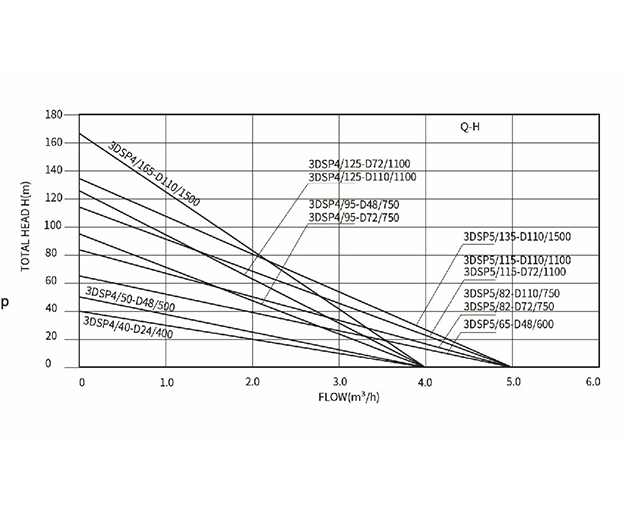

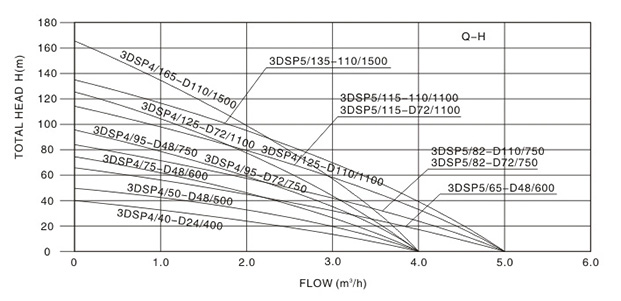

Model	(DC) Voltage (V)	Best input voltage(DC) (V)	Motor power		Max Flow (M³/H)	Max Head (M)	Outlet (IN)	Cable (m)	Solar Panels Suggestion(≥1.3*PUMP POWER)
			Motor power						Open circuit voltage(VOC)(V)	Quantity(pcs)
			KW	HP					Open circuit voltage(VOC)(V)	Quantity(pcs)

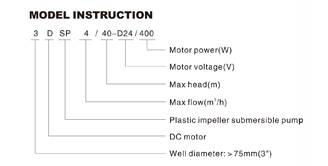

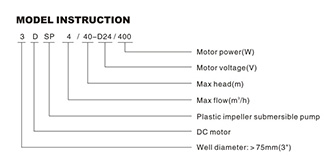

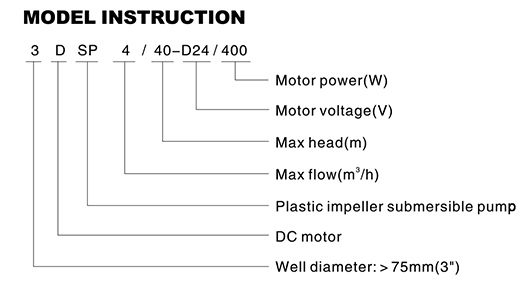

3DSP4/40-D24/400	24V	18-55V	0.4	0.54	4	40	1.25"	2m	<55V	1
3DSP4/50-D48/750	48V	40-110V	0.5	0.68	4	50	1.25"	2m	<110V	2
3DSP4/75-D48/600	48V	40-110V	0.75	1	4	95	1.25"	2m	<110V	2
3DSP4/95-D72/750	72V	60-165V	0.75	1.0	4	95	1.25"	2m	<165V	3
3DSP4/125-D72/1100	72V	60-165V	1.1	1.5	4	125	1.25"	2m	<165V	3
3DSP4/125-D110/1100	110V	80-220V	1.1	1.5	4	125	1.25"	2m	<220V	4
3DSP4/165-D110/1500	110V	80-220V	1.5	2.0	4	165	1.25"	2m	<220V	4
3DSP5/65-D48/600	48V	40-110V	0.6	0.82	5	65	1.5°	2m	<110V	2
3DSP5/82-D72/750	72V	60-165V	0.75	1	5	82	1.5"	2m	<165V	3
3DSP5/82-D110/750	110V	80-220V	0.75	1	5	82	1.5°	2m	<220V	4
3DSP5/115-D72/1100	72V	60-165V	1.1	1.5	5	115	1.5°	2m	<165V	3
3DSP5/115-110/1100	110V	80-220V	1.1	1.5	5	115	1.5"	2m	<220V	4
3DSP5/135-110/1500	110V	80-220V	1.5	2	5	135	1.5"	2m	<220V	4
