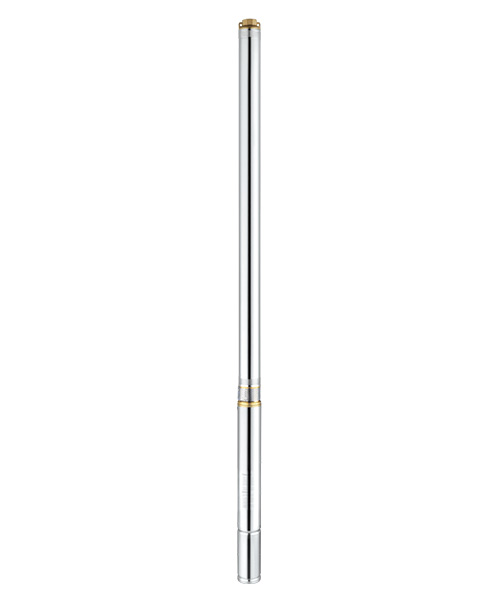

2.5SPM2
TECHNICAL DATA:
-Pump/Motor
Qmax: 2.6(m³/h)
lnsulation class: B
Protection grade: IP 68
Maximum diameter: φ65mm
Highest temperature of liquid: 35℃
Options of different materials are available.

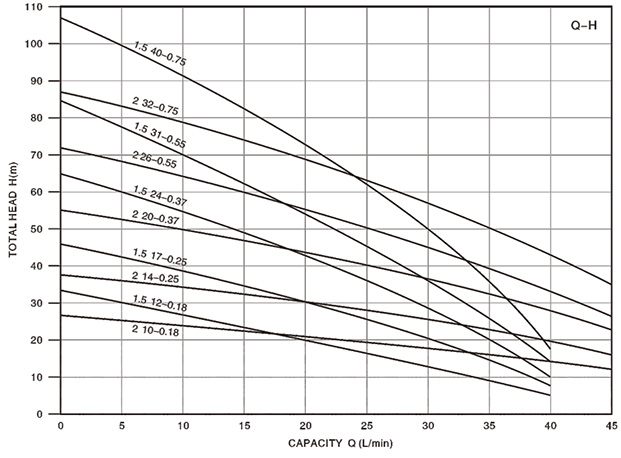

| Type single phase 220-240V~ Hz50 | Motor power | Capacity and head | Length | |||||||||||
| L/ min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | ||||
| KW | HP | m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | mm | |
| 2.5SPM1.5 12-0.18 | 0.18 | 0.25 | Head (m) | 33 | 30 | 28 | 26 | 23 | 20 | 17 | 11 | 5 | — | 855 |
| 2.5SPM1.5 17-0.25 | 0.25 | 0.33 | 46 | 42 | 39 | 37 | 33 | 29 | 24 | 16 | 7 | — | 1035 | |
| 2.5SPM1.5 24-0.37 | 0.37 | 0.5 | 65 | 60 | 56 | 52 | 46 | 40 | 33 | 22 | 10 | — | 1306 | |
| 2.5SPM1.5 31-0.55 | 0.55 | 0.75 | 84 | 77 | 72 | 67 | 60 | 52 | 43 | 29 | 13 | — | 1554 | |
| 2.5SPM1.5 40-0.75 | 0.75 | 1 | 108 | 99 | 93 | 87 | 77 | 67 | 55 | 37 | 17 | — | 1823 | |
| 2.5SPM2 10-0.18 | 0.18 | 0.25 | 27 | 26 | 25 | 24 | 23 | 21 | 19 | 17 | 14 | 11 | 848 | |
| 2.5SPM2 14-0.25 | 0.25 | 0.33 | 38 | 37 | 35 | 34 | 32 | 29 | 27 | 24 | 20 | 15 | 1028 | |
| 2.5SPM2 20-0.37 | 0.37 | 0.5 | 54 | 53 | 50 | 48 | 45 | 41 | 38 | 34 | 29 | 22 | 1276 | |
| 2.5SPM2 26-0.55 | 0.55 | 0.75 | 71 | 68 | 65 | 63 | 59 | 54 | 50 | 44 | 37 | 28 | 1351 | |
| 2.5SPM2 32-0.75 | 0.75 | 1 | 87 | 84 | 80 | 77 | 72 | 66 | 61 | 54 | 46 | 35 | 1568 | |
rpm:2850 Outlet:G1"~1¼"
| N0. | Description | N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|---|---|
| 1 | Clamping spring | 14 | O-ring | 27 | Suction support | 40 | Bearing bush |
| 2 | End cover | 15 | Oil chamber | 28 | Strainer | 41 | Screw |
| 3 | Rubber cup | 16 | O-ring | 29 | Screw | 42 | Screw |
| 4 | Motor body | 17 | Screw | 30 | Screw | 43 | Diffuser |
| 5 | Screw | 18 | Sand proof sheath | 31 | Coupling | 44 | Guide bush |
| 6 | Washer | 19 | Washer | 32 | Bearing bush | 45 | Valve seat |
| 7 | Bearing seat | 20 | Sand proof cap | 33 | Intermediate support | 46 | Check valve |
| 8 | Stator | 21 | Screw | 34 | Guide bush | 47 | Screw |
| 9 | Ball bearing | 22 | Oil chamber cover | 35 | Shaft | 48 | Holder pipe |
| 10 | Rotor | 23 | Cable | 36 | Shaft ring | 49 | Cable cover |
| 11 | Ball bearing | 24 | Stud | 37 | Diffuser cover | 50 | Pump bod |
| 12 | Gasket | 25 | washer | 38 | Impeller | 51 | Outlet |
| 13 | Thrust bearing | 26 | Nut | 39 | Diffuser | 52 | Control box |
