From ltaly to serve the world
Qmax: 1.7(m³/h)
lnsulation class: B
Protection grade: IP 68
Maximum diameter: φ50mm
Highest temperature of liquid: 35℃

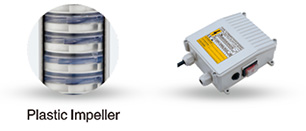

Options of different materials are available.

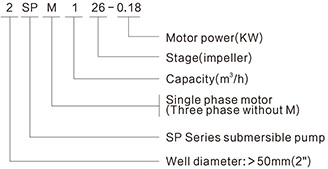

Type single phase 220-240V~ Hz50 | Motor power | Capacity and head | Length | ||||||||

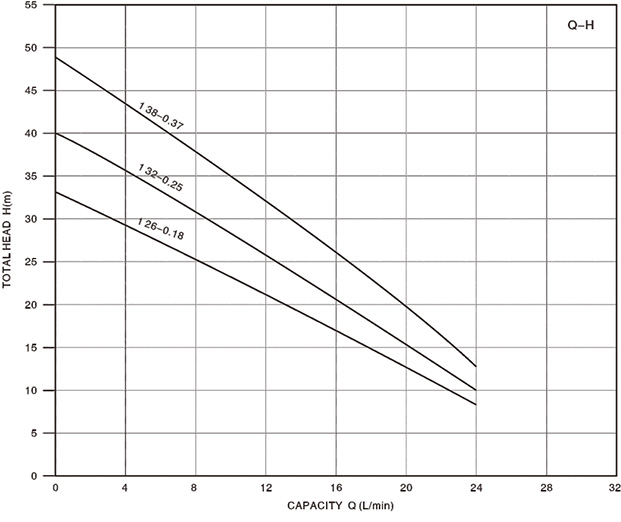

L/ min | 0 | 4 | 8 | 12 | 16 | 20 | 24 | ||||
KW | HP | m³/h | 0 | 0.24 | 0.48 | 0.72 | 0.96 | 1.2 | 1.44 | mm | |
2SPM1 26-0.18 | 0.18 | 0.25 | Head (m) | 33 | 29 | 25 | 22 | 19 | 14 | 8 | 1298 |
2SPM1 32-0.25 | 0.25 | 0.33 | 40 | 36 | 31 | 27 | 23 | 17 | 10 | 1512 | |
2SPM1 38-0.37 | 0.37 | 0.5 | 48 | 43 | 37 | 32 | 27 | 20 | 12 | 1690 |
rpm:2850 Outlet:G½"
N0. | Description | N0. | Description | N0. | Description | N0. | Description |
---|---|---|---|---|---|---|---|
1 | Clamping spring | 14 | O-ring | 27 | Suction support | 40 | Bearing bush |
2 | End cover | 15 | Oil chamber | 28 | Strainer | 41 | Screw |
3 | Rubber cup | 16 | O-ring | 29 | Screw | 42 | Screw |
4 | Motor body | 17 | Screw | 30 | Screw | 43 | Diffuser |
5 | Screw | 18 | Sand proof sheath | 31 | Coupling | 44 | Guide bush |
6 | Washer | 19 | Washer | 32 | Bearing bush | 45 | Valve seat |
7 | Bearing seat | 20 | Sand proof cap | 33 | Intermediate support | 46 | Check valve |
8 | Stator | 21 | Screw | 34 | Guide bush | 47 | Screw |
9 | Ball bearing | 22 | Oil chamber cover | 35 | Shaft | 48 | Holder pipe |
10 | Rotor | 23 | Cable | 36 | Shaft ring | 49 | Cable cover |
11 | Ball bearing | 24 | Stud | 37 | Diffuser cover | 50 | Pump bod |
12 | Gasket | 25 | washer | 38 | Impeller | 51 | Outlet |
13 | Thrust bearing | 26 | Nut | 39 | Diffuser | 52 | Control box |
