3SPM4

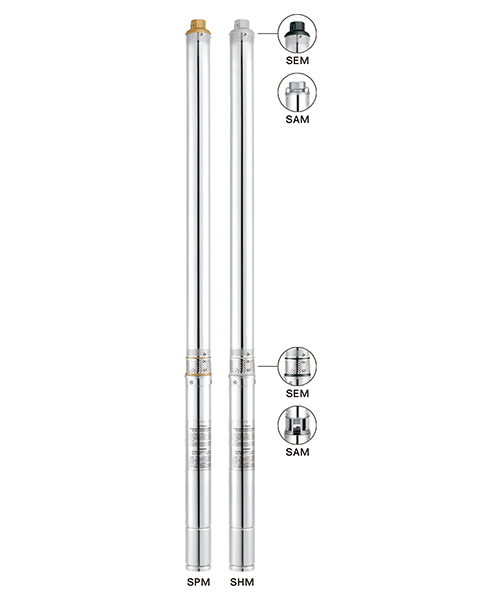

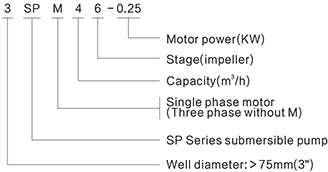

TECHNICAL DATA:
-Pump/Motor
Qmax: 5.4(m³/h)
lnsulation class: B
Protection grade: IP 68
Maximum diameter: φ75mm
Highest temperature of liquid: 35℃

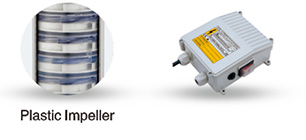

Options of different materials are available.

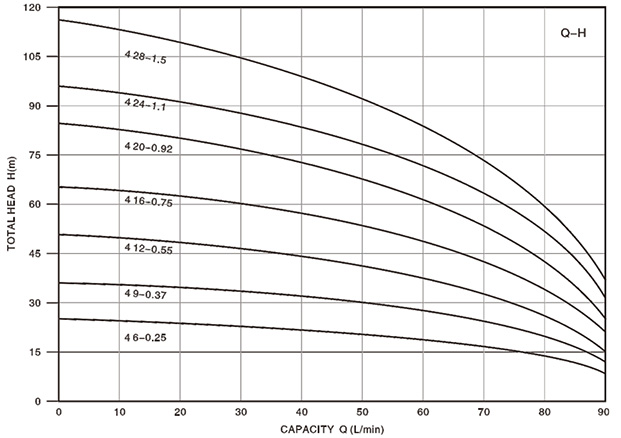

| Type | Motor power | Capacity and head | Length | ||||||||||||
| single phase 220-240V~ Hz50 | Three phase 380-415V~ Hz50 | ||||||||||||||
| L/ min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | |||||
| KW | HP | m³/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | 5.4 | mm | ||
| 3S□M4 6-0.25 | 3S□4 6-0.25 | 0.25 | 0.33 | Head (m) | 25 | 25 | 24 | 23 | 22 | 21 | 19 | 16 | 13 | 8 | 701 |
| 3S□M4 9-0.37 | 3S□4 9-0.37 | 0.37 | 0.5 | 37 | 37 | 36 | 35 | 33 | 32 | 28 | 24 | 19 | 12 | 822 | |
| 3S□M4 12-0.55 | 3S□4 12-0.55 | 0.55 | 0.75 | 49 | 49 | 48 | 47 | 45 | 42 | 37 | 32 | 25 | 15 | 953 | |
| 3S□M4 16-0.75 | 3S□4 16-0.75 | 0.75 | 1 | 66 | 66 | 65 | 62 | 59 | 56 | 50 | 42 | 34 | 21 | 1141 | |
| 3S□M4 20-0.92 | 3S□4 20-0.92 | 0.92 | 1.25 | 82 | 82 | 81 | 78 | 74 | 70 | 62 | 53 | 42 | 25 | 1316 | |
| 3S□M4 24-1.1 | 3S□4 24-1.1 | 1.1 | 1.5 | 99 | 99 | 97 | 93 | 89 | 84 | 75 | 63 | 51 | 31 | 1455 | |
| 3S□M4 28-1.5 | 3S□4 28-1.5 | 1.5 | 2 | 115 | 115 | 113 | 109 | 104 | 98 | 87 | 74 | 59 | 36 | 1657 | |
rpm:2850 Outlet:G1"~1½"
●3S□ in the above table can be replaced by any of 3SP,3SE,3SH
| N0. | Description | N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|---|---|
| 1 | Clamping spring | 14 | O-ring | 27 | Suction support | 40 | Bearing bush |
| 2 | End cover | 15 | Oil chamber | 28 | Strainer | 41 | Screw |
| 3 | Rubber cup | 16 | O-ring | 29 | Screw | 42 | Screw |
| 4 | Motor body | 17 | Screw | 30 | Screw | 43 | Diffuser |
| 5 | Screw | 18 | Sand proof sheath | 31 | Coupling | 44 | Guide bush |
| 6 | Washer | 19 | Washer | 32 | Bearing bush | 45 | Valve seat |
| 7 | Bearing seat | 20 | Sand proof cap | 33 | Intermediate support | 46 | Check valve |
| 8 | Stator | 21 | Screw | 34 | Guide bush | 47 | Screw |
| 9 | Ball bearing | 22 | Oil chamber cover | 35 | Shaft | 48 | Holder pipe |
| 10 | Rotor | 23 | Cable | 36 | Shaft ring | 49 | Cable cover |
| 11 | Ball bearing | 24 | Stud | 37 | Diffuser cover | 50 | Pump bod |
| 12 | Gasket | 25 | washer | 38 | Impeller | 51 | Outlet |
| 13 | Thrust bearing | 26 | Nut | 39 | Diffuser | 52 | Control box |
