From ltaly to serve the world
Qmax: 7.5(m³/h)
lnsulation class: B
Protection grade: IP 68
Maximum diameter: φ75mm
Highest temperature of liquid: 35℃

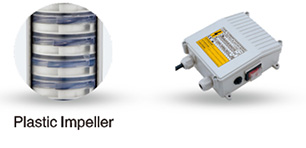

Options of different materials are available.
Type | Motor power | Capacity and head | Length | ||||||||||||
single phase 220-240V~ Hz50 | Three phase 380-415V~ Hz50 | ||||||||||||||

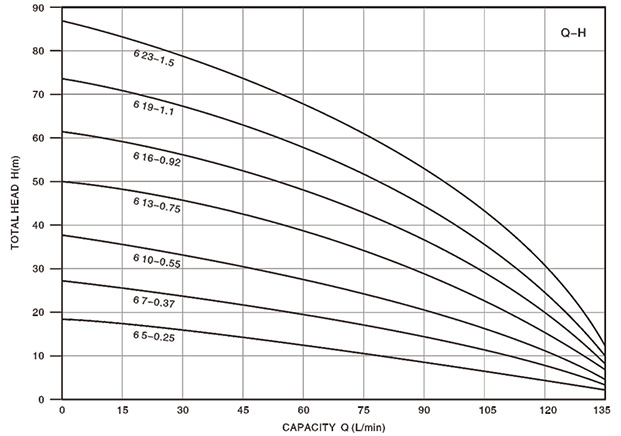

L/ min | 0 | 15 | 30 | 45 | 60 | 75 | 90 | 105 | 120 | 135 | |||||
KW | HP | m³/h | 0 | 0.9 | 1.8 | 2.7 | 3.6 | 4.5 | 5.4 | 6.3 | 7.2 | 8.1 | mm | ||
3S□M6 5-0.25 | 3S□6 5-0.25 | 0.25 | 0.33 | Head (m) | 19 | 18 | 17 | 16 | 15 | 13 | 11 | 9 | 5 | 3 | 739 |
3S□M6 7-0.37 | 3S□6 7-0.37 | 0.37 | 0.5 | 27 | 26 | 24 | 22 | 20 | 18 | 15 | 12 | 8 | 4 | 846 | |
3S□M6 10-0.55 | 3S□6 10-0.55 | 0.55 | 0.75 | 38 | 37 | 34 | 31 | 29 | 25 | 21 | 17 | 11 | 5 | 1026 | |
3S□M6 13-0.75 | 3S□6 13-0.75 | 0.75 | 1 | 50 | 49 | 45 | 41 | 38 | 33 | 28 | 23 | 14 | 7 | 1220 | |
3S□M6 16-0.92 | 3S□6 16-0.92 | 0.92 | 1.25 | 61 | 60 | 55 | 50 | 47 | 40 | 34 | 28 | 17 | 8 | 1375 | |
3S□M6 19-1.1 | 3S□6 19-1.1 | 1.1 | 1.5 | 73 | 71 | 65 | 59 | 55 | 48 | 40 | 33 | 21 | 10 | 1525 | |
3S□M6 23-1.5 | 3S□6 23-1.5 | 1.5 | 2 | 88 | 86 | 79 | 72 | 67 | 58 | 49 | 40 | 25 | 12 | 1757 |
rpm:2850 Outlet:G1"~1½"

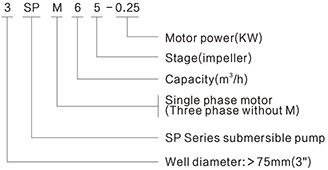

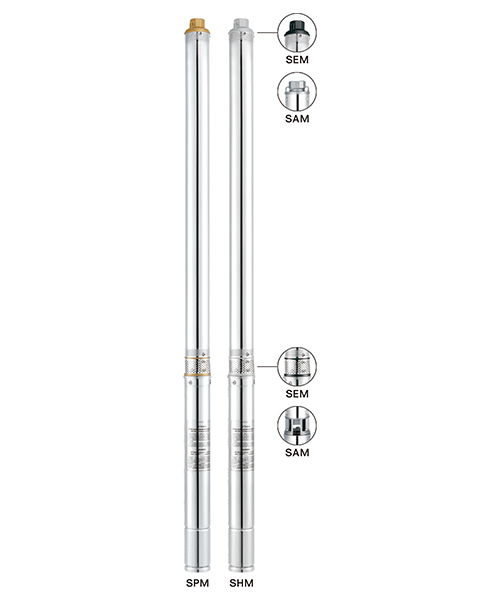

●3S□ in the above table can be replaced by any of 3SP,3SE,3SH

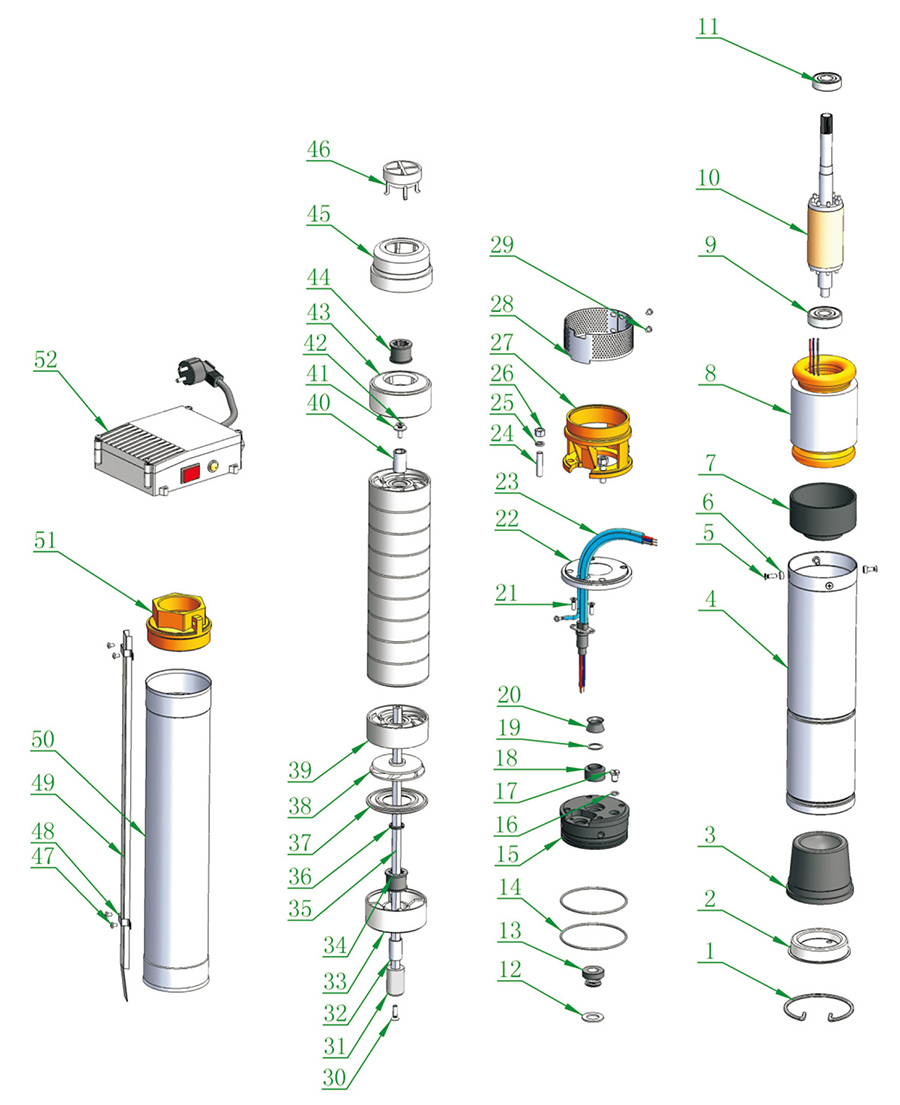

N0. | Description | N0. | Description | N0. | Description | N0. | Description |
---|---|---|---|---|---|---|---|
1 | Clamping spring | 14 | O-ring | 27 | Suction support | 40 | Bearing bush |
2 | End cover | 15 | Oil chamber | 28 | Strainer | 41 | Screw |
3 | Rubber cup | 16 | O-ring | 29 | Screw | 42 | Screw |
4 | Motor body | 17 | Screw | 30 | Screw | 43 | Diffuser |
5 | Screw | 18 | Sand proof sheath | 31 | Coupling | 44 | Guide bush |
6 | Washer | 19 | Washer | 32 | Bearing bush | 45 | Valve seat |
7 | Bearing seat | 20 | Sand proof cap | 33 | Intermediate support | 46 | Check valve |
8 | Stator | 21 | Screw | 34 | Guide bush | 47 | Screw |
9 | Ball bearing | 22 | Oil chamber cover | 35 | Shaft | 48 | Holder pipe |
10 | Rotor | 23 | Cable | 36 | Shaft ring | 49 | Cable cover |
11 | Ball bearing | 24 | Stud | 37 | Diffuser cover | 50 | Pump bod |
12 | Gasket | 25 | washer | 38 | Impeller | 51 | Outlet |
13 | Thrust bearing | 26 | Nut | 39 | Diffuser | 52 | Control box |
