From ltaly to serve the world
Qmax: 9.6(m³/h)
lnsulation class: B
Protection grade: IP 68
Maximum diameter: φ90mm
Highest temperature of liquid: 35℃

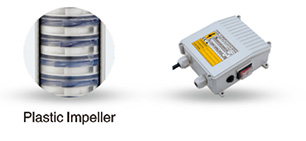

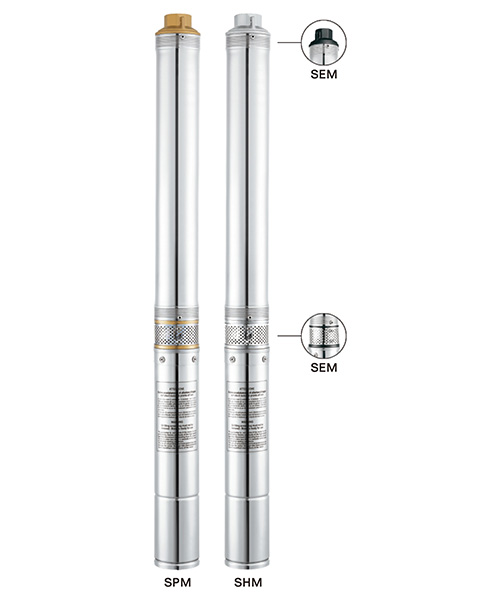

Options of different materials are available.

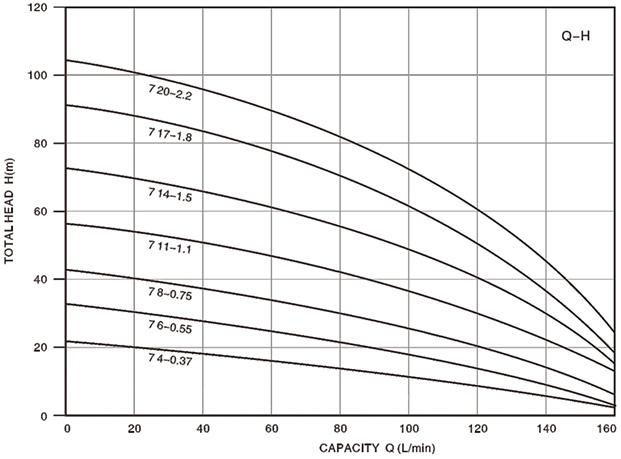

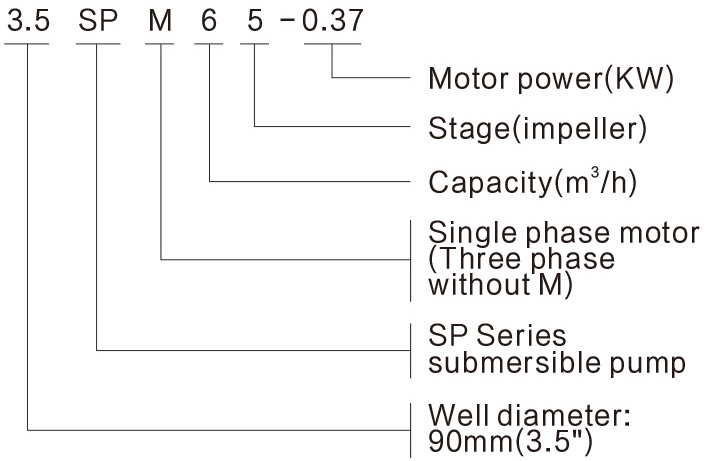

Type | Motor power | Capacity and head | Length | |||||||||||
single phase 220-240V~ Hz50 | Three phase 380-415V~ Hz50 | |||||||||||||
L/ min | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | |||||
KW | HP | m³/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6.0 | 7.2 | 8.4 | 9.6 | mm | ||
3.5S□M7 4-0.37 | 3.5S□7 4-0.37 | 0.37 | 0.5 | Head (m) | 21 | 20 | 19 | 18 | 17 | 14 | 12 | 8 | 5 | 648 |
3.5S□M7 6-0.55 | 3.5S□7 6-0.55 | 0.55 | 0.75 | 32 | 30 | 29 | 27 | 25 | 22 | 17 | 12 | 7 | 734 | |
3.5S□M7 8-0.75 | 3.5S□7 8-0.75 | 0.75 | 1 | 42 | 41 | 40 | 37 | 33 | 29 | 23 | 17 | 9 | 830 | |
3.5S□M7 11-1.1 | 3.5S□7 11-1.1 | 1.1 | 1.5 | 58 | 56 | 54 | 50 | 46 | 39 | 32 | 23 | 13 | 990 | |
3.5S□M7 14-1.5 | 3.5S□7 14-1.5 | 1.5 | 2 | 74 | 71 | 67 | 64 | 58 | 50 | 40 | 29 | 16 | 1174 | |
— | 3.5S□7 17-1.8 | 1.8 | 2.5 | 90 | 86 | 81 | 78 | 71 | 61 | 49 | 35 | 19 | 1274 | |
一 | 3.5S□7 20-2.2 | 2.2 | 3 | 105 | 102 | 94 | 91 | 83 | 72 | 58 | 41 | 23 | 1423 |
rpm:2850 Outlet:G1"~1½"
N0. | Description | N0. | Description | N0. | Description | N0. | Description |
---|---|---|---|---|---|---|---|
1 | Clamping spring | 14 | O-ring | 27 | Suction support | 40 | Bearing bush |
2 | End cover | 15 | Oil chamber | 28 | Strainer | 41 | Screw |
3 | Rubber cup | 16 | O-ring | 29 | Screw | 42 | Screw |
4 | Motor body | 17 | Screw | 30 | Screw | 43 | Diffuser |
5 | Screw | 18 | Sand proof sheath | 31 | Coupling | 44 | Guide bush |
6 | Washer | 19 | Washer | 32 | Bearing bush | 45 | Valve seat |
7 | Bearing seat | 20 | Sand proof cap | 33 | Intermediate support | 46 | Check valve |
8 | Stator | 21 | Screw | 34 | Guide bush | 47 | Screw |
9 | Ball bearing | 22 | Oil chamber cover | 35 | Shaft | 48 | Holder pipe |
10 | Rotor | 23 | Cable | 36 | Shaft ring | 49 | Cable cover |
11 | Ball bearing | 24 | Stud | 37 | Diffuser cover | 50 | Pump bod |
12 | Gasket | 25 | washer | 38 | Impeller | 51 | Outlet |
13 | Thrust bearing | 26 | Nut | 39 | Diffuser | 52 | Control box |
