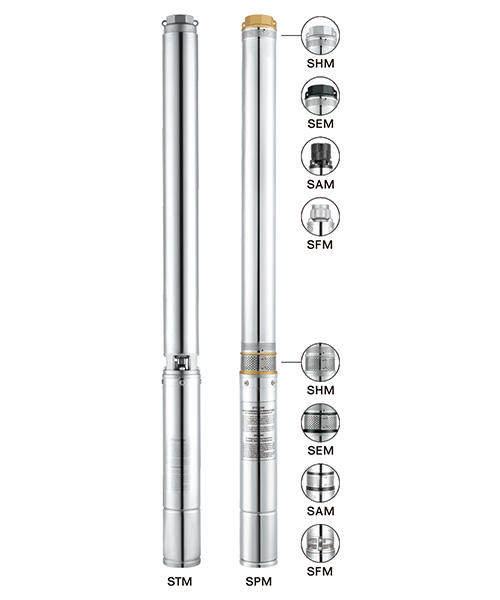

4SPM20
TECHNICAL DATA:
-Pump/Motor
Qmax: 27~30(m³/h)
lnsulation class: B
Protection grade: IP 68
Maximum diameter: φ100mm
Highest temperature of liquid: 35℃

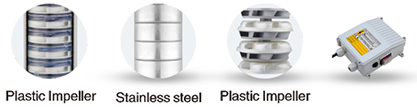

Options of different materials are available.

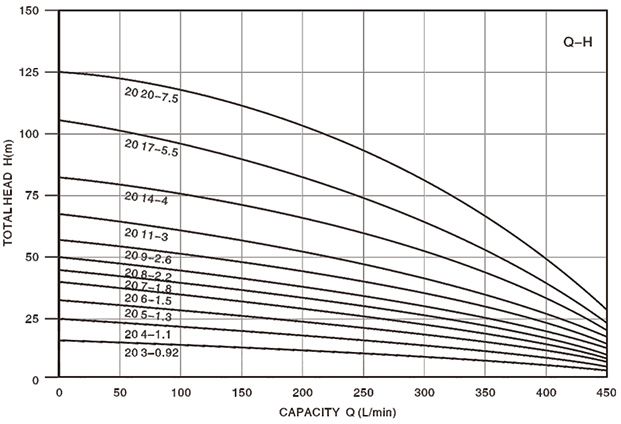

| Type | Motor power | Capacity and head | Length | ||||||||||||
| single phase 220-240V~ Hz50 | Three phase 380-415V~ Hz50 | ||||||||||||||
| L/ min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | |||||
| KW | HP | m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | mm | ||
| 4S□M20 3-0.92 | 4S□20 3-0.92 | 0.92 | 1.25 | Head (m) | 19 | 18 | 17 | 15 | 13 | 12 | 10 | 9 | 7 | 4 | 886 |
| 4S□M20 4-1.1 | 4S□20 4-1.1 | 1.1 | 1.5 | 25 | 24 | 23 | 20 | 18 | 16 | 14 | 12 | 9 | 5 | 985 | |
| 4S□M20 5-1.3 | 4S□20 5-1.3 | 1.3 | 1.75 | 31 | 30 | 29 | 25 | 22 | 20 | 17 | 15 | 11 | 6 | 1090 | |
| 4S□M20 6-1.5 | 4S□20 6-1.5 | 1.5 | 2 | 38 | 37 | 35 | 31 | 27 | 24 | 21 | 18 | 13 | 8 | 1226 | |
| 4S□M20 7-1.8 | 4S□20 7-1.8 | 1.3 | 2.5 | 44 | 43 | 40 | 36 | 31 | 28 | 24 | 21 | 15 | 9 | 1340 | |
| 4S□M20 8-2.2 | 4S□20 8-2.2 | 2.2 | 3 | 50 | 49 | 46 | 41 | 35 | 32 | 28 | 23 | 17 | 10 | 1465 | |
| 4S□M20 9-2.6 | 4S□20 9-2.6 | 2.6 | 3.5 | 56 | 55 | 52 | 46 | 40 | 36 | 31 | 26 | 20 | 12 | 1546 | |
| 4S□M20 11-3 | 4S□20 11-3 | 3 | 4 | 69 | 67 | 63 | 56 | 49 | 44 | 38 | 32 | 24 | 14 | 1745 | |
| 一 | 4S□20 14-4 | 4 | 5.5 | 88 | 85 | 81 | 71 | 62 | 56 | 49 | 41 | 31 | 18 | 2054 | |
| 一 | 4S□20 17-5.5 | 5.5 | 7.5 | 106 | 104 | 98 | 87 | 76 | 68 | 60 | 50 | 37 | 22 | 2399 | |
| — | 4S□20 20-7.5 | 7.5 | 10 | 125 | 122 | 115 | 102 | 89 | 80 | 70 | 59 | 44 | 26 | 2712 | |
rpm:2850 Outlet:G2"~3"

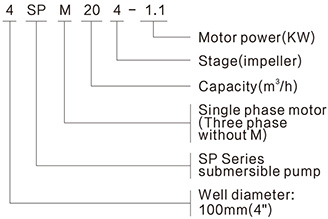

●4S□in the above table can be replaced by any of 4SP,4SE,4SH
| N0. | Description | N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|---|---|
| 1 | Clamping spring | 14 | O-ring | 27 | Suction support | 40 | Bearing bush |
| 2 | End cover | 15 | Oil chamber | 28 | Strainer | 41 | Screw |
| 3 | Rubber cup | 16 | O-ring | 29 | Screw | 42 | Screw |
| 4 | Motor body | 17 | Screw | 30 | Screw | 43 | Diffuser |
| 5 | Screw | 18 | Sand proof sheath | 31 | Coupling | 44 | Guide bush |
| 6 | Washer | 19 | Washer | 32 | Bearing bush | 45 | Valve seat |
| 7 | Bearing seat | 20 | Sand proof cap | 33 | Intermediate support | 46 | Check valve |
| 8 | Stator | 21 | Screw | 34 | Guide bush | 47 | Screw |
| 9 | Ball bearing | 22 | Oil chamber cover | 35 | Shaft | 48 | Holder pipe |
| 10 | Rotor | 23 | Cable | 36 | Shaft ring | 49 | Cable cover |
| 11 | Ball bearing | 24 | Stud | 37 | Diffuser cover | 50 | Pump bod |
| 12 | Gasket | 25 | washer | 38 | Impeller | 51 | Outlet |
| 13 | Thrust bearing | 26 | Nut | 39 | Diffuser | 52 | Control box |
