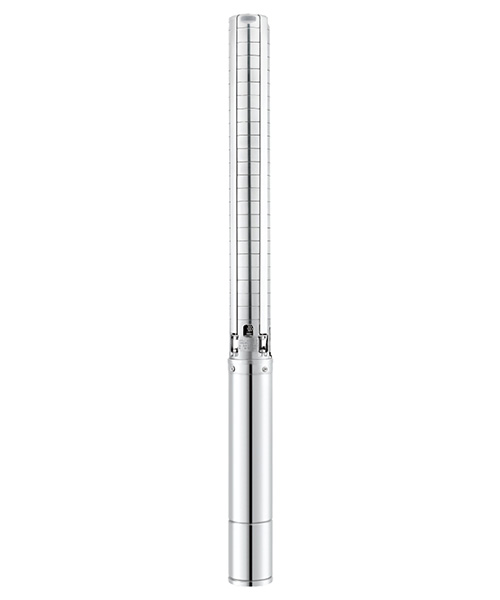

4SSM2
TECHNICAL DATA:
-Pump/Motor
Qmax: 4(m³/h)
Adopted the NEMA standard
lnsulation class: B
Protection grade: IP 68
Maximum diameter: φ100mm
Highest temperature of liquid: 35℃
Options of different materials are available.

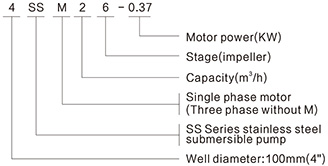

| Type |
Motor power |
Capacity and head | Length | |||||||||||||
|
single phase 220-240V~ Hz50 |
Three phase 380-415V~ Hz50 |
|||||||||||||||

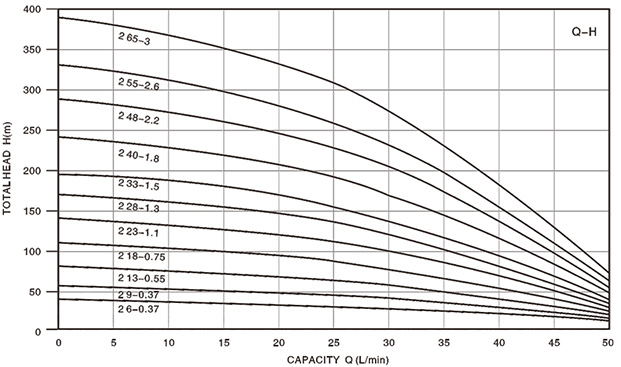

| L/ min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | |||||
| KW | HP | m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.0 | mm | ||
| 4SSM2 6-0.37 | 4SS2 6-0.37 | 0.37 | 0.5 |
Head (m) |
36 | 35 | 34 | 32 | 31 | 28 | 25 | 21 | 16 | 11 | 6 | 590 |
| 4SSM2 9-0.37 | 4SS2 9-0.37 | 0.37 | 0.5 | 54 | 53 | 51 | 48 | 46 | 42 | 37 | 31 | 25 | 17 | 9 | 653 | |
| 4SSM2 13-0.55 | 4SS2 13-0.55 | 0.55 | 0.75 | 78 | 76 | 73 | 70 | 66 | 61 | 54 | 45 | 35 | 24 | 13 | 752 | |
| 4SSM2 18-0.75 | 4SS2 18-0.75 | 0.75 | 1 | 108 | 105 | 102 | 97 | 92 | 85 | 75 | 63 | 49 | 34 | 18 | 872 | |
| 4SSM2 23-1.1 | 4SS2 23-1.1 | 1.1 | 1.5 | 138 | 134 | 130 | 124 | 117 | 108 | 96 | 80 | 63 | 43 | 23 | 1002 | |
| 4SSM2 28-1.3 | 4SS2 28-1.3 | 1.3 | 1.75 | 168 | 164 | 158 | 151 | 143 | 132 | 116 | 97 | 76 | 53 | 28 | 1162 | |
| 4SSM2 33-1.5 | 4SS2 33-1.5 | 1.5 | 2 | 198 | 193 | 186 | 178 | 168 | 155 | 137 | 115 | 90 | 62 | 32 | 1267 | |
| 4SSM2 40-1.8 | 4SS2 40-1.8 | 1.8 | 2.5 | 240 | 234 | 226 | 215 | 204 | 188 | 166 | 139 | 109 | 75 | 39 | 1504 | |
| 4SSM2 48-2.2 | 4SS2 48-2.2 | 2.2 | 3 | 288 | 281 | 271 | 258 | 244 | 226 | 199 | 167 | 131 | 90 | 47 | 1672 | |
| 4SSM2 55-2.6 | 4SS2 55-2.6 | 2.6 | 3.5 | 330 | 322 | 311 | 296 | 280 | 259 | 228 | 191 | 150 | 103 | 54 | 1859 | |
| 4SSM2 65-3 | 4SS2 65-3 | 3 | 4 | 390 | 380 | 367 | 350 | 331 | 306 | 270 | 226 | 177 | 122 | 64 | 2109 | |
rpm:2850 Outlet:G1"~1½"
| N0. | Description | N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|---|---|
| 1 |
Clamping spring |
14 |
O-ring |
27 |
Suction support |
40 |
Bearing bush |
| 2 |
End cover |
15 |
Oil chamber |
28 |
Strainer |
41 |
Screw |
| 3 |
Rubber cup |
16 | O-ring | 29 |
Screw |
42 |
Screw |
| 4 |
Motor body |
17 |
Screw |
30 |
Screw |
43 | Diffuser |
| 5 |
Screw |
18 |
Sand proof sheath |
31 |
Coupling |
44 |
Guide bush |
| 6 |
Washer |
19 |
Washer |
32 |
Bearing bush |
45 |
Valve seat |
| 7 |
Bearing seat |
20 |
Sand proof cap |
33 |
Intermediate support |
46 |
Check valve |
| 8 |
Stator |
21 |
Screw |
34 |
Guide bush |
47 | Screw |
| 9 |
Ball bearing |
22 |
Oil chamber cover |
35 |
Shaft |
48 |
Holder pipe |
| 10 |
Rotor |
23 |
Cable |
36 |
Shaft ring |
49 |
Cable cover |
| 11 |
Ball bearing |
24 |
Stud |
37 |
Diffuser cover |
50 |
Pump bod |
| 12 |
Gasket |
25 |
washer |
38 |
Impeller |
51 |
Outlet |
| 13 |
Thrust bearing |
26 |
Nut |
39 |
Diffuser |
52 |
Control box |
