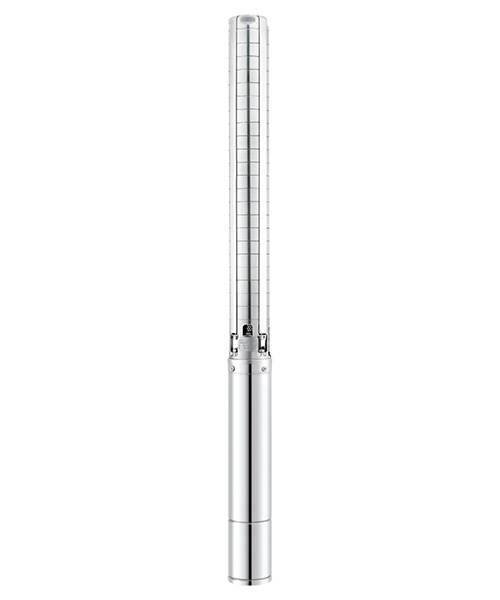

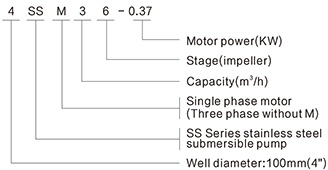

4SSM3
TECHNICAL DATA:
-Pump/Motor
Qmax: 5.6(m³/h)
Adopted the NEMA standard
lnsulation class: B
Protection grade: IP 68
Maximum diameter: φ100mm
Highest temperature of liquid: 35℃
Options of different materials are available.
| Type |
Motor power |
Capacity and head | Length | ||||||||||
|
single phase 220-240V~ Hz50 |
Three phase 380-415V~ Hz50 |
||||||||||||

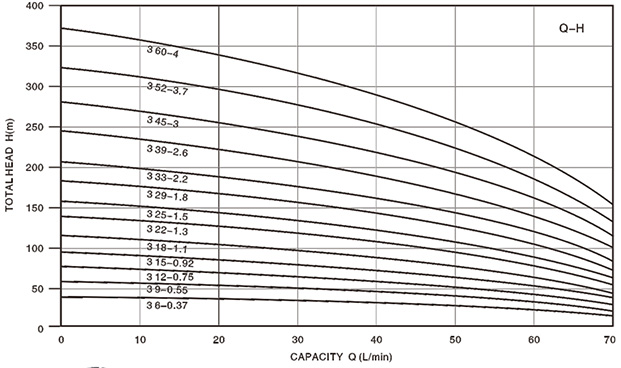

| L/ min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | |||||
| KW | HP | m³/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | mm | ||
| 4SSM3 6-0.37 | 4SS3 6-0.37 | 0.37 | 0.5 |
Head (m) |
37 | 36 | 34 | 32 | 29 | 26 | 21 | 16 | 590 |
| 4SSM3 9-0.55 | 4SS3 9-0.55 | 0.55 | 0.75 | 56 | 54 | 51 | 48 | 44 | 39 | 32 | 23 | 668 | |
| 4SSM3 12-0.75 | 4SS3 12-0.75 | 0.75 | 1 | 74 | 71 | 68 | 64 | 59 | 52 | 43 | 31 | 746 | |
| 4SSM3 15-0.92 | 4SS3 15-0.92 | 0.92 | 1.25 | 93 | 89 | 85 | 80 | 74 | 65 | 54 | 39 | 844 | |
| 4SSM3 18-1.1 | 4SS3 18-1.1 | 1.1 | 1.5 | 112 | 107 | 102 | 96 | 88 | 78 | 64 | 47 | 907 | |
| 4SSM3 22-1.3 | 4SS3 22-1.3 | 1.3 | 1.75 | 136 | 131 | 125 | 117 | 108 | 95 | 78 | 57 | 1036 | |
| 4SSM3 25-1.5 | 4SS3 25-1.5 | 1.5 | 2 | 155 | 149 | 142 | 133 | 123 | 108 | 89 | 65 | 1099 | |
| 4SSM3 29-1.8 | 4SS3 29-1.8 | 1.8 | 2.5 | 180 | 173 | 164 | 154 | 142 | 126 | 103 | 75 | 1273 | |
| 4SSM3 33-2.2 | 4SS3 33-2.2 | 2.2 | 3 | 205 | 196 | 187 | 175 | 162 | 143 | 118 | 85 | 1357 | |
| 4SSM3 39-2.6 | 4SS3 39-2.6 | 2.6 | 3.5 | 242 | 232 | 221 | 207 | 191 | 169 | 139 | 101 | 1523 | |
| 4SSM3 45-3 | 4SS3 45-3 | 3 | 4 | 279 | 268 | 255 | 239 | 221 | 195 | 161 | 116 | 1689 | |
| 一 | 4SS3 52-3.7 | 3.7 | 5 | 322 | 309 | 295 | 276 | 255 | 225 | 185 | 134 | 1900 | |
| — | 4SS3 60-4 | 4 | 5.5 | 372 | 357 | 340 | 319 | 294 | 260 | 214 | 155 | 2108 | |
rpm:2850 Outlet:G1¼"~1½"
| N0. | Description | N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|---|---|
| 1 |
Clamping spring |
14 |
O-ring |
27 |
Suction support |
40 |
Bearing bush |
| 2 |
End cover |
15 |
Oil chamber |
28 |
Strainer |
41 |
Screw |
| 3 |
Rubber cup |
16 | O-ring | 29 |
Screw |
42 |
Screw |
| 4 |
Motor body |
17 |
Screw |
30 |
Screw |
43 | Diffuser |
| 5 |
Screw |
18 |
Sand proof sheath |
31 |
Coupling |
44 |
Guide bush |
| 6 |
Washer |
19 |
Washer |
32 |
Bearing bush |
45 |
Valve seat |
| 7 |
Bearing seat |
20 |
Sand proof cap |
33 |
Intermediate support |
46 |
Check valve |
| 8 |
Stator |
21 |
Screw |
34 |
Guide bush |
47 | Screw |
| 9 |
Ball bearing |
22 |
Oil chamber cover |
35 |
Shaft |
48 |
Holder pipe |
| 10 |
Rotor |
23 |
Cable |
36 |
Shaft ring |
49 |
Cable cover |
| 11 |
Ball bearing |
24 |
Stud |
37 |
Diffuser cover |
50 |
Pump bod |
| 12 |
Gasket |
25 |
washer |
38 |
Impeller |
51 |
Outlet |
| 13 |
Thrust bearing |
26 |
Nut |
39 |
Diffuser |
52 |
Control box |
