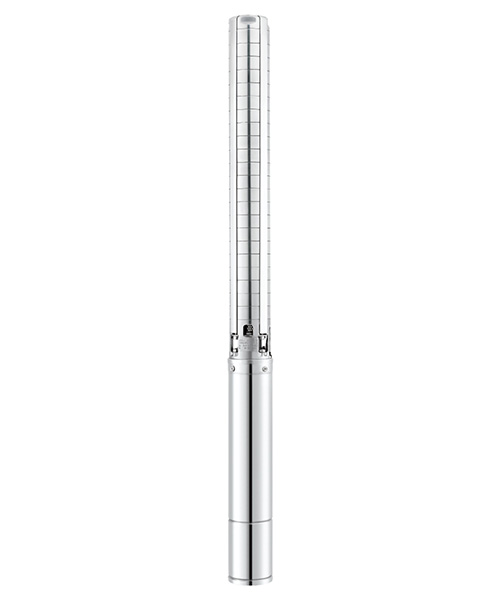

4SSM8
TECHNICAL DATA:

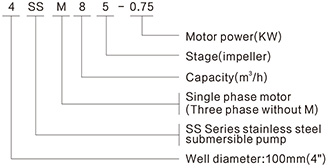

-Pump/Motor
Qmax: 12.5(m³/h)
Adopted the NEMA standard
lnsulation class: B
Protection grade: IP 68
Maximum diameter: φ100mm
Highest temperature of liquid: 35℃
Options of different materials are available.
| Type |
Motor power |
Capacity and head | Length | ||||||||||||
|
single phase 220-240V~ Hz50 |
Three phase 380-415V~ Hz50 |
||||||||||||||

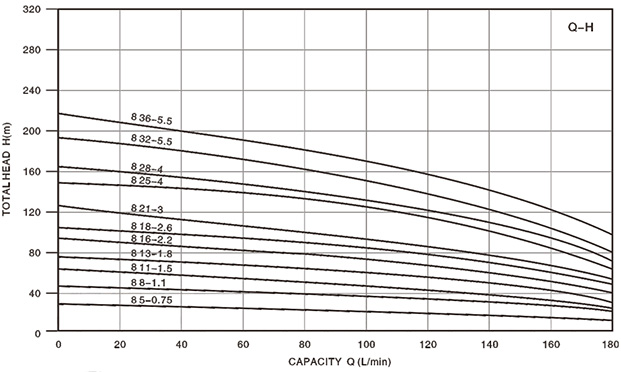

| L/ min | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | |||||
| KW | HP | m³/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6.0 | 7.2 | 8.4 | 9.6 | 10.8 | mm | ||
| 4SSM8 5-0.75 | 4SS8 5-0.75 | 0.75 | 1 |
Head (m) |
30 | 28 | 27 | 26 | 25 | 24 | 22 | 20 | 17 | 13 | 754 |
| 4SSM8 8-1.1 | 4SS8 8-1.1 | 1.1 | 1.5 | 48 | 45 | 44 | 42 | 40 | 38 | 35 | 32 | 27 | 20 | 873 | |
| 4SSM8 11-1.5 | 4SS8 11-1.5 | 1.5 | 2 | 66 | 62 | 61 | 58 | 55 | 52 | 48 | 44 | 37 | 28 | 1044 | |
| 4SSM8 13-1.8 | 4SS8 13-1.8 | 1.8 | 2.5 | 78 | 73 | 72 | 68 | 65 | 62 | 57 | 52 | 44 | 33 | 1218 | |
| 4SSM8 16-2.2 | 4SS8 16-2.2 | 2.2 | 3 | 96 | 90 | 88 | 84 | 80 | 76 | 70 | 64 | 54 | 40 | 1344 | |
| 4SSM8 18-2.6 | 4SS8 18-2.6 | 2.6 | 3.5 | 107 | 102 | 98 | 94 | 90 | 85 | 79 | 72 | 61 | 46 | 1550 | |
| 4SSM8 21-3 | 4SS8 21-3 | 3 | 4 | 125 | 119 | 115 | 110 | 105 | 100 | 92 | 84 | 71 | 53 | 1740 | |
| — | 4SS8 25-4 | 4 | 5.5 | 149 | 142 | 137 | 131 | 125 | 118 | 110 | 99 | 85 | 63 | 1906 | |
| — | 4SS8 28-4 | 4 | 5.5 | 168 | 158 | 154 | 147 | 140 | 133 | 123 | 112 | 95 | 70 | 2198 | |
| — | 4SS8 32-5.5 | 5.5 | 7.5 | 192 | 180 | 176 | 168 | 160 | 152 | 140 | 128 | 108 | 80 | 2500 | |
| — | 4SS8 36-5.5 | 5.5 | 7.5 | 214 | 204 | 197 | 189 | 180 | 171 | 158 | 143 | 122 | 91 | 2896 | |
rpm:2850 Outlet:1½"~G2"
| N0. | Description | N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|---|---|
| 1 |
Clamping spring |
14 |
O-ring |
27 |
Suction support |
40 |
Bearing bush |
| 2 |
End cover |
15 |
Oil chamber |
28 |
Strainer |
41 |
Screw |
| 3 |
Rubber cup |
16 | O-ring | 29 |
Screw |
42 |
Screw |
| 4 |
Motor body |
17 |
Screw |
30 |
Screw |
43 | Diffuser |
| 5 |
Screw |
18 |
Sand proof sheath |
31 |
Coupling |
44 |
Guide bush |
| 6 |
Washer |
19 |
Washer |
32 |
Bearing bush |
45 |
Valve seat |
| 7 |
Bearing seat |
20 |
Sand proof cap |
33 |
Intermediate support |
46 |
Check valve |
| 8 |
Stator |
21 |
Screw |
34 |
Guide bush |
47 | Screw |
| 9 |
Ball bearing |
22 |
Oil chamber cover |
35 |
Shaft |
48 |
Holder pipe |
| 10 |
Rotor |
23 |
Cable |
36 |
Shaft ring |
49 |
Cable cover |
| 11 |
Ball bearing |
24 |
Stud |
37 |
Diffuser cover |
50 |
Pump bod |
| 12 |
Gasket |
25 |
washer |
38 |
Impeller |
51 |
Outlet |
| 13 |
Thrust bearing |
26 |
Nut |
39 |
Diffuser |
52 |
Control box |
