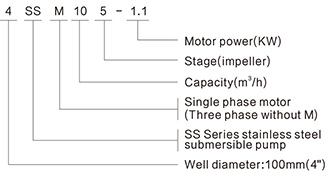

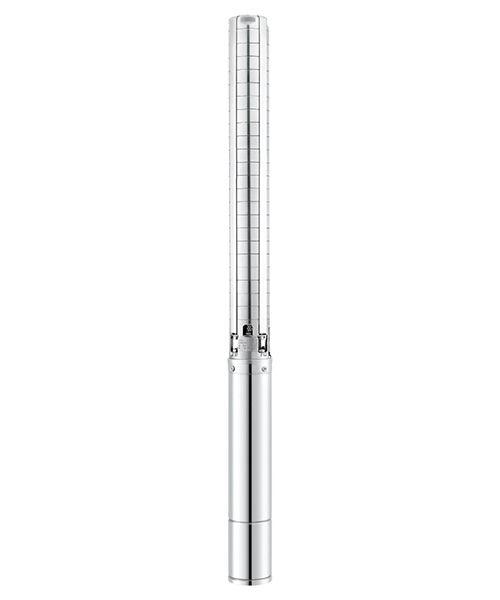

4SSM10
TECHNICAL DATA:
-Pump/Motor
Qmax: 14.5(m³/h)
Adopted the NEMA standard
lnsulation class: B
Protection grade: IP 68
Maximum diameter: φ100mm
Highest temperature of liquid: 35℃
Options of different materials are available.
| Type |
Motor power |
Capacity and head | Length | |||||||||||
|
single phase 220-240V~ Hz50 |
Three phase 380-415V~ Hz50 |
|||||||||||||

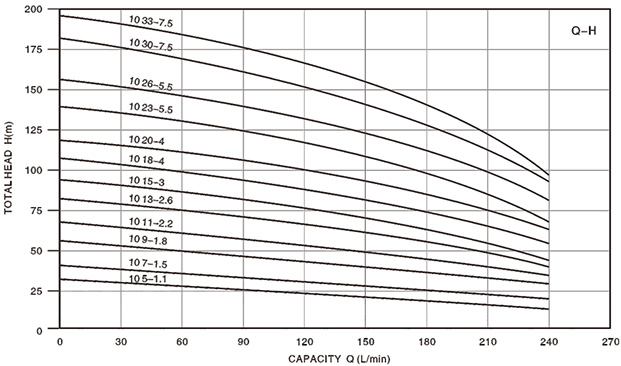

| L/ min | 0 | 30 | 60 | 90 | 120 | 150 | 180 | 210 | 240 | |||||
| KW | HP | m³/h | 0 | 1.8 | 3.6 | 5.4 | 7.2 | 9.0 | 10.8 | 12.6 | 14.4 | mm | ||
| 4SSM10 5-1.1 | 4SS10 5-1.1 | 1.1 | 1.5 |
Head (m) |
30 | 29 | 28 | 27 | 26 | 24 | 22 | 19 | 15 | 889 |
| 4SSM10 7-1.5 | 4SS10 7-1.5 | 1.5 | 2 | 42 | 41 | 39 | 38 | 37 | 34 | 30 | 26 | 21 | 1049 | |
| 4SSM10 9-1.8 | 4SS10 9-1.8 | 1.8 | 2.5 | 54 | 52 | 51 | 49 | 47 | 44 | 39 | 34 | 27 | 1189 | |
| 4SSM10 11-2.2 | 4SS10 11-2.2 | 2.2 | 3 | 66 | 64 | 62 | 60 | 58 | 54 | 47 | 41 | 33 | 1339 | |
| 4SSM10 13-2.6 | 4SS10 13-2.6 | 2.6 | 3.5 | 78 | 76 | 73 | 71 | 69 | 63 | 56 | 49 | 39 | 1446 | |
| 4SSM10 15-3 | 4SS10 15-3 | 3 | 4 | 90 | 87 | 85 | 82 | 79 | 73 | 65 | 56 | 45 | 1596 | |
| — | 4SS10 18-4 | 4 | 5.5 | 108 | 105 | 101 | 98 | 95 | 88 | 77 | 68 | 54 | 1800 | |
| — | 4SS10 20-4 | 4 | 5.5 | 120 | 116 | 113 | 109 | 105 | 98 | 86 | 75 | 60 | 1900 | |
| — | 4SS10 23-5.5 | 5.5 | 7.5 | 138 | 134 | 130 | 125 | 121 | 112 | 99 | 86 | 69 | 2140 | |
| — | 4SS10 26-5.5 | 5.5 | 7.5 | 156 | 151 | 147 | 142 | 137 | 127 | 112 | 98 | 78 | 2290 | |
| — | 4SS10 30-7.5 | 7.5 | 10 | 180 | 175 | 169 | 164 | 158 | 146 | 129 | 113 | 90 | 2580 | |
| — | 4SS10 33-7.5 | 7.5 | 10 | 198 | 192 | 186 | 180 | 174 | 161 | 142 | 124 | 99 | 2730 | |
rpm:2850 Outlet:1½"~G2"
| N0. | Description | N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|---|---|
| 1 |
Clamping spring |
14 |
O-ring |
27 |
Suction support |
40 |
Bearing bush |
| 2 |
End cover |
15 |
Oil chamber |
28 |
Strainer |
41 |
Screw |
| 3 |
Rubber cup |
16 | O-ring | 29 |
Screw |
42 |
Screw |
| 4 |
Motor body |
17 |
Screw |
30 |
Screw |
43 | Diffuser |
| 5 |
Screw |
18 |
Sand proof sheath |
31 |
Coupling |
44 |
Guide bush |
| 6 |
Washer |
19 |
Washer |
32 |
Bearing bush |
45 |
Valve seat |
| 7 |
Bearing seat |
20 |
Sand proof cap |
33 |
Intermediate support |
46 |
Check valve |
| 8 |
Stator |
21 |
Screw |
34 |
Guide bush |
47 | Screw |
| 9 |
Ball bearing |
22 |
Oil chamber cover |
35 |
Shaft |
48 |
Holder pipe |
| 10 |
Rotor |
23 |
Cable |
36 |
Shaft ring |
49 |
Cable cover |
| 11 |
Ball bearing |
24 |
Stud |
37 |
Diffuser cover |
50 |
Pump bod |
| 12 |
Gasket |
25 |
washer |
38 |
Impeller |
51 |
Outlet |
| 13 |
Thrust bearing |
26 |
Nut |
39 |
Diffuser |
52 |
Control box |
