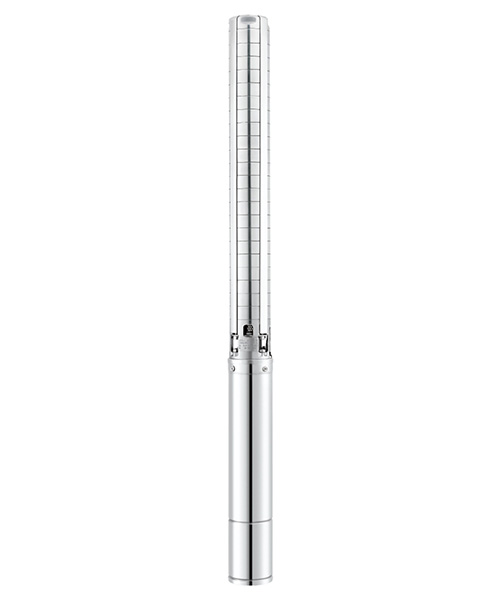

4SSM14
TECHNICAL DATA:
-Pump/Motor
Qmax: 19(m³/h)
Adopted the NEMA standard
lnsulation class: B
Protection grade: IP 68
Maximum diameter: φ100mm
Highest temperature of liquid: 35℃
Options of different materials are available.

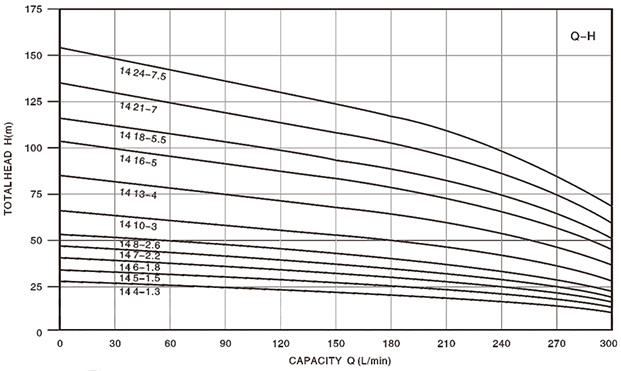

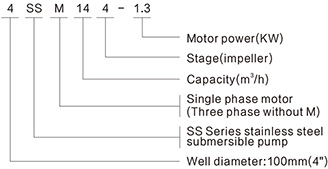

| Type |
Motor power |
Capacity and head | Length | |||||||||||||
|
single phase 220-240V~ Hz50 |
Three phase 380-415V~ Hz50 |
|||||||||||||||
| L/ min | 0 | 30 | 60 | 90 | 120 | 150 | 180 | 210 | 240 | 270 | 300 | |||||
| KW | HP | m³/h | 0 | 1.8 | 3.6 | 5.4 | 7.2 | 9.0 | 10.8 | 12.6 | 14.4 | 16.2 | 18 | mm | ||
| 4SSM14 4-1.3 | 4SS14 4-1.3 | 1.3 | 1.75 |
Head (m) |
26 | 25 | 24 | 23 | 22 | 21 | 20 | 18 | 16 | 14 | 11 | 963 |
| 4SSM14 5-1.5 | 4SS14 5-1.5 | 1.5 | 2 | 32 | 31 | 29 | 28 | 27 | 26 | 24 | 23 | 20 | 18 | 14 | 1047 | |
| 4SSM14 6-1.8 | 4SS14 6-1.8 | 1.8 | 2.5 | 38 | 37 | 35 | 34 | 32 | 31 | 29 | 27 | 25 | 21 | 17 | 1263 | |
| 4SSM14 7-2.2 | 4SS14 7-2.2 | 2.2 | 3 | 45 | 43 | 41 | 39 | 38 | 36 | 34 | 32 | 29 | 25 | 20 | 1347 | |
| 4SSM14 8-2.6 | 4SS14 8-2.6 | 2.6 | 3.5 | 51 | 49 | 47 | 45 | 43 | 41 | 39 | 36 | 33 | 28 | 23 | 1471 | |
| 4SSM14 10-3 | 4SS14 10-3 | 3 | 4 | 64 | 62 | 59 | 56 | 54 | 51 | 49 | 45 | 41 | 35 | 28 | 1595 | |
| — | 4SS14 13-4 | 4 | 5.5 | 83 | 80 | 76 | 73 | 70 | 67 | 63 | 59 | 53 | 46 | 37 | 1922 | |
| — | 4SS14 16-5 | 5 | 7 | 102 | 99 | 94 | 90 | 86 | 82 | 78 | 73 | 65 | 57 | 45 | 2214 | |
| — | 4SS14 18-5.5 | 5.5 | 7.5 | 115 | 111 | 106 | 101 | 97 | 92 | 88 | 82 | 74 | 64 | 51 | 2461 | |
| — | 4SS14 21-7 | 7 | 10 | 134 | 130 | 123 | 118 | 113 | 108 | 102 | 95 | 86 | 74 | 60 | 2773 | |
| 4SS14 24-7.5 | 7.5 | 10 | 153 | 148 | 141 | 135 | 129 | 123 | 117 | 109 | 97 | 85 | 68 | 3085 | ||
rpm:2850 Outlet:G2"
| N0. | Description | N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|---|---|
| 1 |
Clamping spring |
14 |
O-ring |
27 |
Suction support |
40 |
Bearing bush |
| 2 |
End cover |
15 |
Oil chamber |
28 |
Strainer |
41 |
Screw |
| 3 |
Rubber cup |
16 | O-ring | 29 |
Screw |
42 |
Screw |
| 4 |
Motor body |
17 |
Screw |
30 |
Screw |
43 | Diffuser |
| 5 |
Screw |
18 |
Sand proof sheath |
31 |
Coupling |
44 |
Guide bush |
| 6 |
Washer |
19 |
Washer |
32 |
Bearing bush |
45 |
Valve seat |
| 7 |
Bearing seat |
20 |
Sand proof cap |
33 |
Intermediate support |
46 |
Check valve |
| 8 |
Stator |
21 |
Screw |
34 |
Guide bush |
47 | Screw |
| 9 |
Ball bearing |
22 |
Oil chamber cover |
35 |
Shaft |
48 |
Holder pipe |
| 10 |
Rotor |
23 |
Cable |
36 |
Shaft ring |
49 |
Cable cover |
| 11 |
Ball bearing |
24 |
Stud |
37 |
Diffuser cover |
50 |
Pump bod |
| 12 |
Gasket |
25 |
washer |
38 |
Impeller |
51 |
Outlet |
| 13 |
Thrust bearing |
26 |
Nut |
39 |
Diffuser |
52 |
Control box |
