6SS17

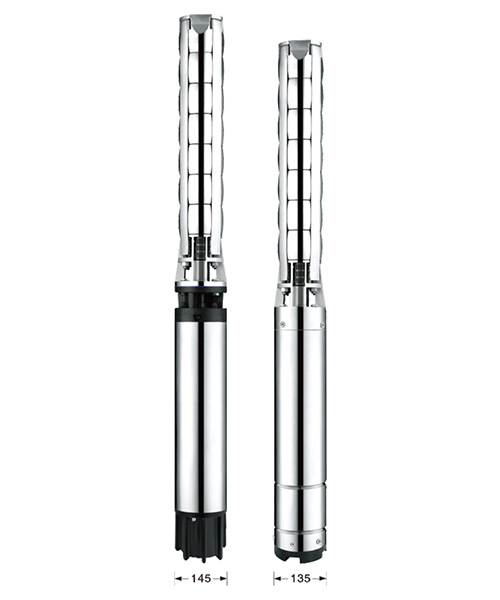

TECHNICAL DATA:
-Pump/Motor
Qmax: 28(m³/h)
Adopted the NEMA standard
lnsulation class: B
Protection grade: IP 68
Maximum diameter: φ150mm
Highest temperature of liquid: 35℃
Options of different materials are available.

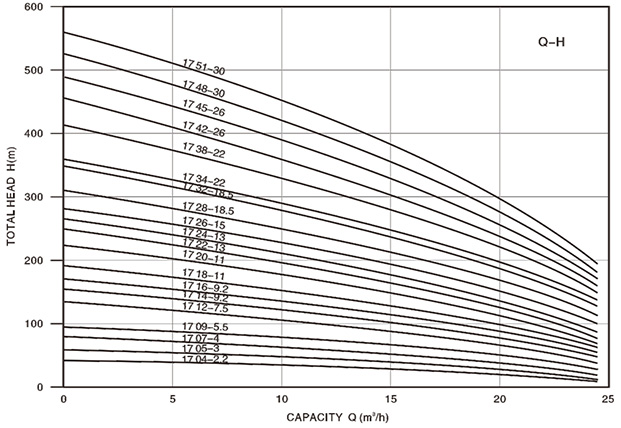

| Type |
Motor power |
Capacity and head | Length | |||||||||||
|
single phase 220-240V~ Hz50 |
Three phase 380-415V~ Hz50 |
|||||||||||||
| L/ min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | |||||
| KW | HP | m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | mm | ||

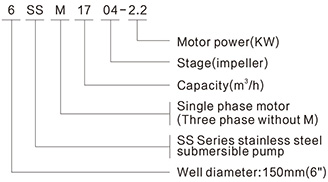

| 6SSM17 04-2.2 | 6SS17 04-2.2 | 2.2 | 3 |
Head (m) |
44 | 44 | 43 | 42 | 39 | 35 | 30 | 23 | 15 | 1115 |
| 6SSM17 05-3 | 6SS17 05-3 | 3 | 4 | 55 | 55 | 54 | 52 | 49 | 44 | 37 | 29 | 19 | 1216 | |
| 6SSM17 07-4 | 6SS17 07-4 | 4 | 5.5 | 77 | 77 | 75 | 73 | 68 | 61 | 52 | 40 | 27 | 1367 | |
| 6SSM17 09-5.5 | 6SS17 09-5.5 | 5.5 | 7.5 | 99 | 99 | 97 | 94 | 88 | 79 | 67 | 52 | 35 | 1533 | |
| — | 6SS17 12-7.5 | 7.5 | 10 | 132 | 132 | 129 | 125 | 117 | 105 | 90 | 69 | 46 | 1769 | |
| — | 6SS17 14-9.2 | 9.2 | 12.5 | 154 | 153 | 151 | 146 | 136 | 122 | 105 | 81 | 54 | 1891 | |
| — | 6SS17 16-9.2 | 9.2 | 12.5 | 176 | 175 | 172 | 167 | 156 | 140 | 120 | 92 | 61 | 2091 | |
| — | 6SS17 18-11 | 11 | 15 | 198 | 197 | 194 | 188 | 175 | 157 | 134 | 104 | 69 | 2252 | |
| — | 6SS17 20-11 | 11 | 15 | 220 | 219 | 215 | 209 | 195 | 175 | 149 | 115 | 77 | 2373 | |
| — | 6SS17 22-13 | 13 | 17.5 | 242 | 241 | 237 | 229 | 214 | 192 | 164 | 127 | 85 | 2574 | |
| — | 6SS17 24-13 | 13 | 17.5 | 264 | 263 | 258 | 250 | 233 | 209 | 179 | 138 | 92 | 2713 | |
| — | 6SS17 26-15 | 15 | 20 | 286 | 285 | 280 | 271 | 253 | 227 | 194 | 150 | 100 | 2876 | |
| — | 6SS17 28-18.5 | 18.5 | 25 | 308 | 307 | 301 | 292 | 272 | 244 | 209 | 161 | 108 | 3007 | |
| — | 6SS17 32-18.5 | 18.5 | 25 | 352 | 351 | 344 | 334 | 311 | 279 | 239 | 184 | 123 | 3249 | |
| — | 6SS17 34-22 | 22 | 30 | 374 | 373 | 366 | 355 | 331 | 297 | 254 | 196 | 131 | 3445 | |
| — | 6SS17 38-22 | 22 | 30 | 418 | 417 | 409 | 396 | 370 | 332 | 284 | 219 | 146 | 3687 | |
| — | 6SS17 42-26 | 26 | 35 | 462 | 460 | 452 | 438 | 408 | 366 | 314 | 242 | 161 | 4004 | |
| — | 6SS17 45-26 | 26 | 35 | 495 | 493 | 484 | 469 | 438 | 393 | 336 | 259 | 173 | 4186 | |
| — | 6SS17 48-30 | 30 | 40 | 528 | 526 | 517 | 501 | 467 | 419 | 359 | 277 | 184 | 4442 | |
| — | 6SS17 51-30 | 30 | 40 | 561 | 559 | 549 | 532 | 496 | 445 | 381 | 294 | 196 | 4624 | |
rpm:2850 Outlet:G3"~G4"
| N0. | Description | N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|---|---|
| 1 |
Clamping spring |
14 |
O-ring |
27 |
Suction support |
40 |
Bearing bush |
| 2 |
End cover |
15 |
Oil chamber |
28 |
Strainer |
41 |
Screw |
| 3 |
Rubber cup |
16 | O-ring | 29 |
Screw |
42 |
Screw |
| 4 |
Motor body |
17 |
Screw |
30 |
Screw |
43 | Diffuser |
| 5 |
Screw |
18 |
Sand proof sheath |
31 |
Coupling |
44 |
Guide bush |
| 6 |
Washer |
19 |
Washer |
32 |
Bearing bush |
45 |
Valve seat |
| 7 |
Bearing seat |
20 |
Sand proof cap |
33 |
Intermediate support |
46 |
Check valve |
| 8 |
Stator |
21 |
Screw |
34 |
Guide bush |
47 | Screw |
| 9 |
Ball bearing |
22 |
Oil chamber cover |
35 |
Shaft |
48 |
Holder pipe |
| 10 |
Rotor |
23 |
Cable |
36 |
Shaft ring |
49 |
Cable cover |
| 11 |
Ball bearing |
24 |
Stud |
37 |
Diffuser cover |
50 |
Pump bod |
| 12 |
Gasket |
25 |
washer |
38 |
Impeller |
51 |
Outlet |
| 13 |
Thrust bearing |
26 |
Nut |
39 |
Diffuser |
52 |
Control box |
