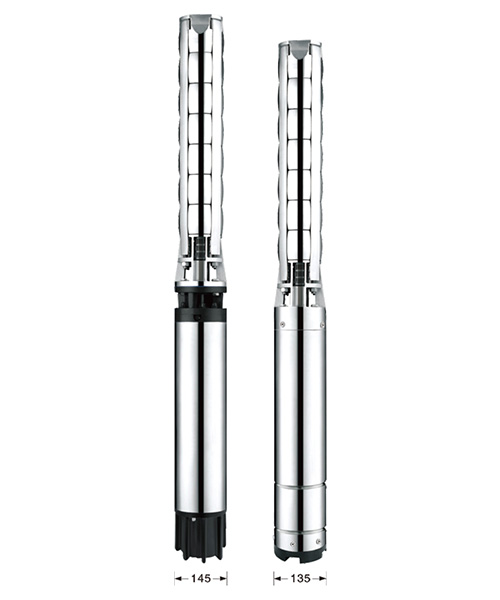

6SS30
TECHNICAL DATA:
-Pump/Motor
Qmax: 50(m³/h)
Adopted the NEMA standard
lnsulation class: B
Protection grade: IP 68
Maximum diameter: φ150mm
Highest temperature of liquid: 35℃
Options of different materials are available.

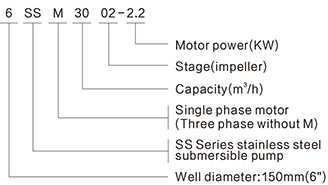

| Type |
Motor power |
Capacity and head | Length | ||||||||||
|
single phase 220-240V~ Hz50 |
Three phase 380-415V~ Hz50 |
||||||||||||

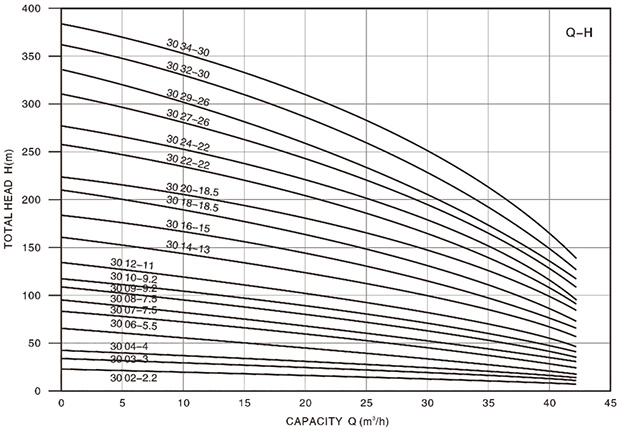

| L/ min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | |||||
| KW | HP | m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | mm | ||
| 6SSM30 02-2.2 | 6SS30 02-2.2 | 2.2 | 3 |
Head (m) |
23 | 22 | 21 | 20 | 18 | 16 | 12 | 8 | 1065 |
| 6SSM30 03-3 | 6SS30 03-3 | 3 | 4 | 34 | 33 | 32 | 30 | 28 | 24 | 19 | 12 | 1201 | |
| 6SSM30 04-4 | 6SS30 04-4 | 4 | 5.5 | 46 | 44 | 42 | 40 | 37 | 32 | 25 | 16 | 1327 | |
| 6SSM30 06-5.5 | 6SS30 06-5.5 | 5.5 | 7.5 | 69 | 66 | 63 | 60 | 55 | 47 | 37 | 24 | 1564 | |
| — | 6SS30 07-7.5 | 7.5 | 10 | 80 | 77 | 74 | 70 | 64 | 55 | 43 | 28 | 1715 | |
| — | 6SS30 08-7.5 | 7.5 | 10 | 92 | 89 | 85 | 80 | 74 | 63 | 50 | 33 | 1811 | |
| — | 6SS30 09-9.2 | 9.2 | 12.5 | 103 | 100 | 95 | 89 | 83 | 71 | 56 | 37 | 1987 | |
| — | 6SS30 10-9.2 | 9.2 | 12.5 | 114 | 111 | 106 | 99 | 92 | 79 | 62 | 41 | 2083 | |
| — | 6SS30 12-11 | 11 | 15 | 137 | 133 | 127 | 119 | 110 | 95 | 74 | 49 | 2315 | |
| — | 6SS30 14-13 | 13 | 17.5 | 160 | 155 | 148 | 139 | 129 | 110 | 87 | 57 | 2587 | |
| — | 6SS30 16-15 | 15 | 20 | 183 | 177 | 169 | 159 | 147 | 126 | 99 | 65 | 2839 | |
| — | 6SS30 18-18.5 | 18.5 | 25 | 206 | 199 | 190 | 179 | 165 | 142 | 111 | 73 | 3041 | |
| — | 6SS3020-18.5 | 18.5 | 25 | 229 | 221 | 211 | 199 | 184 | 158 | 124 | 81 | 3233 | |
| — | 6SS30 22-22 | 22 | 30 | 252 | 243 | 232 | 219 | 202 | 173 | 136 | 89 | 3500 | |
| — | 6SS30 24-22 | 22 | 30 | 275 | 266 | 254 | 239 | 221 | 189 | 149 | 98 | 3692 | |
| — | 6SS30 27-26 | 26 | 35 | 309 | 299 | 285 | 268 | 248 | 213 | 167 | 110 | 4055 | |
| — | 6SS30 29-26 | 26 | 35 | 332 | 321 | 306 | 288 | 266 | 228 | 179 | 118 | 4247 | |
| — | 6SS30 32-30 | 30 | 40 | 366 | 354 | 338 | 318 | 294 | 252 | 198 | 130 | 4610 | |
| — | 6SS30 34-30 | 30 | 40 | 389 | 376 | 359 | 338 | 312 | 268 | 210 | 138 | 4802 | |
rpm:2850 Outlet:G3"~G4"
| N0. | Description | N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|---|---|
| 1 |
Clamping spring |
14 |
O-ring |
27 |
Suction support |
40 |
Bearing bush |
| 2 |
End cover |
15 |
Oil chamber |
28 |
Strainer |
41 |
Screw |
| 3 |
Rubber cup |
16 | O-ring | 29 |
Screw |
42 |
Screw |
| 4 |
Motor body |
17 |
Screw |
30 |
Screw |
43 | Diffuser |
| 5 |
Screw |
18 |
Sand proof sheath |
31 |
Coupling |
44 |
Guide bush |
| 6 |
Washer |
19 |
Washer |
32 |
Bearing bush |
45 |
Valve seat |
| 7 |
Bearing seat |
20 |
Sand proof cap |
33 |
Intermediate support |
46 |
Check valve |
| 8 |
Stator |
21 |
Screw |
34 |
Guide bush |
47 | Screw |
| 9 |
Ball bearing |
22 |
Oil chamber cover |
35 |
Shaft |
48 |
Holder pipe |
| 10 |
Rotor |
23 |
Cable |
36 |
Shaft ring |
49 |
Cable cover |
| 11 |
Ball bearing |
24 |
Stud |
37 |
Diffuser cover |
50 |
Pump bod |
| 12 |
Gasket |
25 |
washer |
38 |
Impeller |
51 |
Outlet |
| 13 |
Thrust bearing |
26 |
Nut |
39 |
Diffuser |
52 |
Control box |
