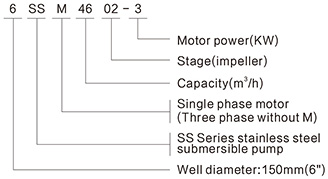

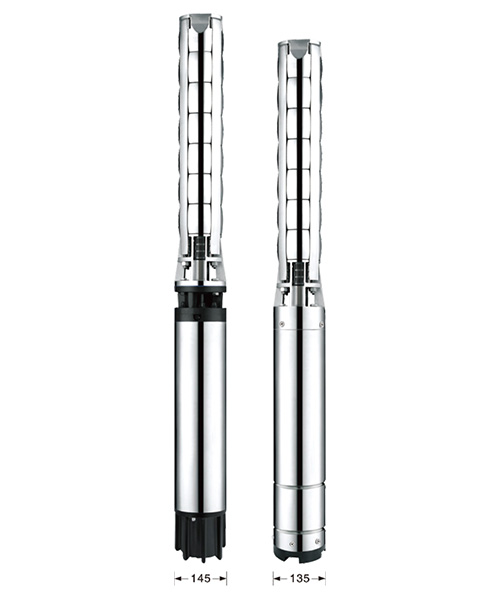

6SS46
TECHNICAL DATA:
-Pump/Motor
Qmax: 75(m³/h)
Adopted the NEMA standard
lnsulation class: B
Protection grade: IP 68
Maximum diameter: φ150mm
Highest temperature of liquid: 35℃
Options of different materials are available.
| Type | Motor | Capacity and head | Length | ||||||||||||||
|
single phase 220-240V~ Hz50 |
Three phase 380-415V~ Hz50 |
power | |||||||||||||||

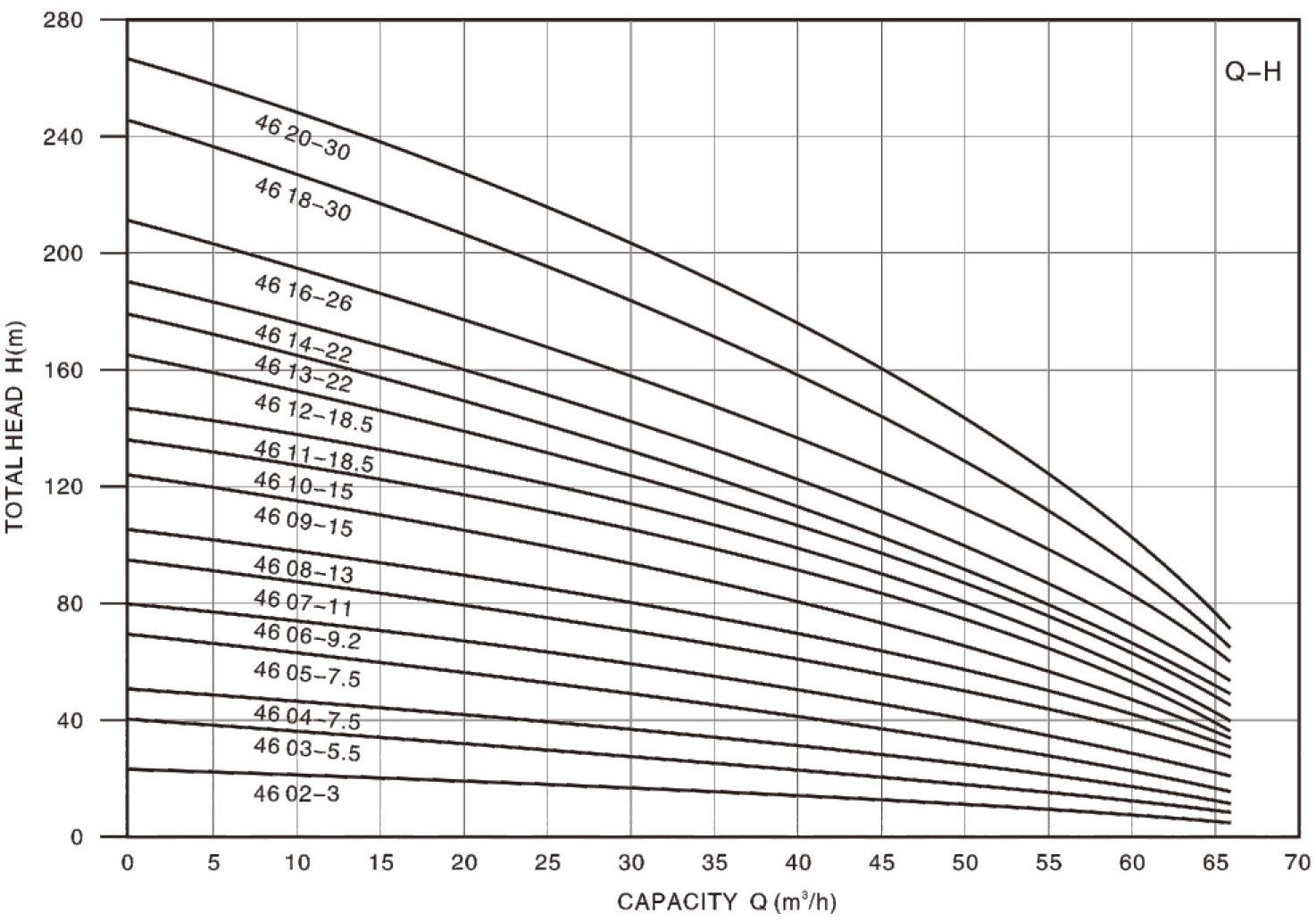

| L/ min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | |||||
| KW | HP | m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 | mm | ||
| 6SSM46 02-3 | 6SS46 02-3 | 3 | 4 |
Head (m) |
27 | 26 | 26 | 25 | 23 | 22 | 20 | 18 | 16 | 14 | 11 | 7 | 1139 |
| 6SSM46 03-5.5 | 6SS46 03-5.5 | 5.5 | 7.5 | 40 | 39 | 38 | 37 | 35 | 32 | 30 | 27 | 24 | 21 | 16 | 11 | 1327 | |
| — | 6SS46 04-7.5 | 7.5 | 10 | 54 | 52 | 51 | 49 | 46 | 43 | 40 | 36 | 32 | 28 | 22 | 14 | 1495 | |
| — | 6SS46 05-7.5 | 7.5 | 10 | 67 | 66 | 64 | 62 | 58 | 54 | 50 | 46 | 41 | 35 | 27 | 18 | 1608 | |
| — | 6SS46 06-9.2 | 9.2 | 12.5 | 80 | 79 | 77 | 74 | 70 | 65 | 60 | 55 | 49 | 41 | 32 | 22 | 1801 | |
| — | 6SS46 07-11 | 11 | 15 | 94 | 92 | 90 | 86 | 81 | 76 | 70 | 64 | 57 | 48 | 38 | 25 | 1954 | |
| — | 6SS46 08-13 | 13 | 17.5 | 107 | 105 | 102 | 98 | 93 | 86 | 80 | 73 | 65 | 55 | 43 | 29 | 2147 | |
| — | 6SS46 09-15 | 15 | 20 | 121 | 118 | 115 | 111 | 104 | 97 | 90 | 82 | 73 | 62 | 49 | 32 | 2320 | |
| — | 6SS46 10-15 | 15 | 20 | 134 | 131 | 128 | 123 | 116 | 108 | 100 | 91 | 81 | 69 | 54 | 36 | 2433 | |
| — | 6SS46 11-18.5 | 18.5 | 25 | 147 | 144 | 141 | 135 | 128 | 119 | 110 | 100 | 89 | 76 | 59 | 40 | 2556 | |
| — | 6SS46 12-18.5 | 18.5 | 25 | 161 | 157 | 154 | 148 | 139 | 130 | 120 | 109 | 97 | 83 | 65 | 43 | 2669 | |
| — | 6SS46 13-22 | 22 | 30 | 174 | 170 | 166 | 160 | 151 | 140 | 130 | 118 | 105 | 90 | 70 | 47 | 2857 | |
| — | 6SS46 14-22 | 22 | 30 | 188 | 183 | 179 | 172 | 162 | 151 | 140 | 127 | 113 | 97 | 76 | 50 | 2970 | |
| — | 6SS46 16-26 | 26 | 35 | 214 | 210 | 205 | 197 | 186 | 173 | 160 | 146 | 130 | 110 | 86 | 58 | 3271 | |
| — | 6SS46 18-30 | 30 | 40 | 241 | 236 | 230 | 221 | 209 | 194 | 180 | 164 | 146 | 124 | 97 | 65 | 3572 | |
| — | 6SS46 20-30 | 30 | 40 | 268 | 262 | 256 | 246 | 232 | 216 | 200 | 182 | 162 | 138 | 108 | 72 | 3798 | |
rpm:2850 Outlet:G3"~G4"
| N0. | Description | N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|---|---|
| 1 |
Clamping spring |
14 |
O-ring |
27 |
Suction support |
40 |
Bearing bush |
| 2 |
End cover |
15 |
Oil chamber |
28 |
Strainer |
41 |
Screw |
| 3 |
Rubber cup |
16 | O-ring | 29 |
Screw |
42 |
Screw |
| 4 |
Motor body |
17 |
Screw |
30 |
Screw |
43 | Diffuser |
| 5 |
Screw |
18 |
Sand proof sheath |
31 |
Coupling |
44 |
Guide bush |
| 6 |
Washer |
19 |
Washer |
32 |
Bearing bush |
45 |
Valve seat |
| 7 |
Bearing seat |
20 |
Sand proof cap |
33 |
Intermediate support |
46 |
Check valve |
| 8 |
Stator |
21 |
Screw |
34 |
Guide bush |
47 | Screw |
| 9 |
Ball bearing |
22 |
Oil chamber cover |
35 |
Shaft |
48 |
Holder pipe |
| 10 |
Rotor |
23 |
Cable |
36 |
Shaft ring |
49 |
Cable cover |
| 11 |
Ball bearing |
24 |
Stud |
37 |
Diffuser cover |
50 |
Pump bod |
| 12 |
Gasket |
25 |
washer |
38 |
Impeller |
51 |
Outlet |
| 13 |
Thrust bearing |
26 |
Nut |
39 |
Diffuser |
52 |
Control box |
