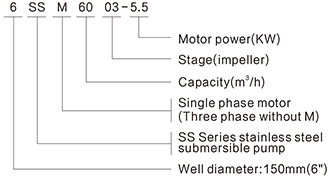

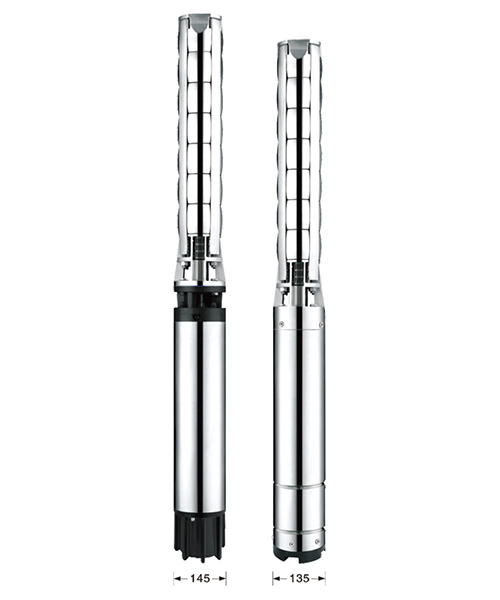

6SS60
TECHNICAL DATA:
-Pump/Motor
Qmax: 84(m³/h)
Adopted the NEMA standard
lnsulation class: B
Protection grade: IP 68
Maximum diameter: φ150mm
Highest temperature of liquid: 35℃
Options of different materials are available.
| Type |
Motor power |
Capacity and head | Length | ||||||||||||||||
|
single phase 220-240V~ Hz50 |
Three phase 380-415V~ Hz50 |
||||||||||||||||||

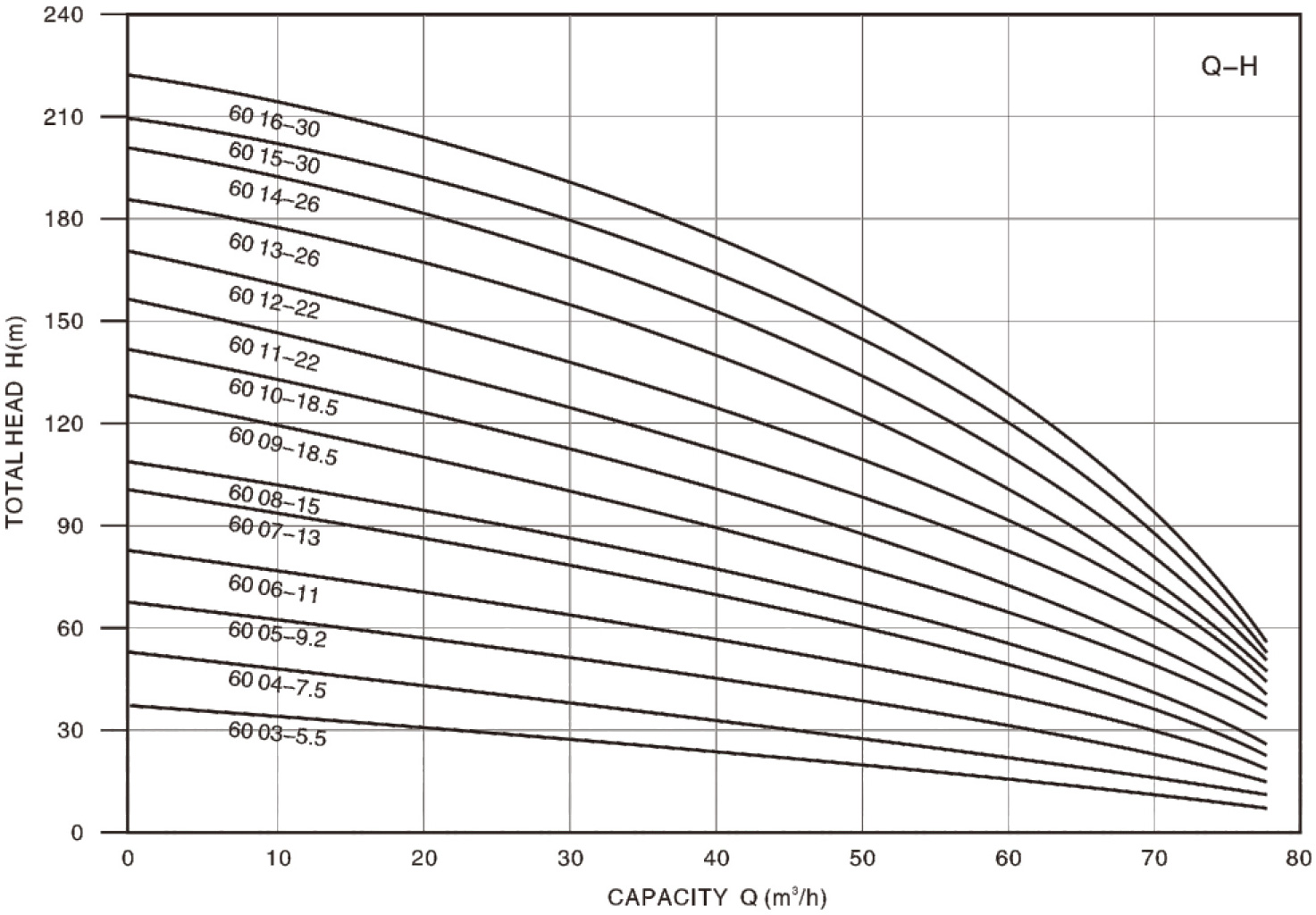

| L/ min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | |||||
| KW | HP | m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 | 72 | 78 | mm | ||
| 6SSM60 03-5.5 | 6SS60 03-5.5 | 5.5 | 7.5 |
Head (m) |
42 | 42 | 42 | 41 | 39 | 36 | 33 | 31 | 29 | 26 | 23 | 20 | 16 | 11 | 1327 |
| — | 6SS60 04-7.5 | 7.5 | 10 | 56 | 56 | 56 | 55 | 52 | 48 | 44 | 41 | 38 | 35 | 31 | 26 | 21 | 15 | 1495 | |
| — | 6SS60 05-9.2 | 9.2 | 12.5 | 70 | 70 | 69 | 68 | 65 | 60 | 55 | 52 | 48 | 44 | 39 | 33 | 26 | 18 | 1688 | |
| — | 6SS60 06-11 | 11 | 15 | 84 | 84 | 83 | 82 | 78 | 72 | 66 | 62 | 58 | 53 | 47 | 40 | 31 | 22 | 1841 | |
| — | 6SS60 07-13 | 13 | 17.5 | 98 | 98 | 97 | 95 | 91 | 84 | 77 | 72 | 67 | 62 | 55 | 46 | 36 | 25 | 2034 | |
| — | 6SS60 08-15 | 15 | 20 | 112 | 112 | 111 | 109 | 104 | 96 | 89 | 83 | 77 | 71 | 63 | 53 | 42 | 29 | 2207 | |
| — | 6SS60 09-18.5 | 18.5 | 25 | 126 | 125 | 125 | 123 | 116 | 108 | 100 | 93 | 87 | 79 | 70 | 60 | 47 | 33 | 2330 | |
| — | 6SS60 10-18.5 | 18.5 | 25 | 140 | 139 | 139 | 136 | 129 | 120 | 111 | 103 | 96 | 88 | 78 | 66 | 52 | 36 | 2443 | |
| — | 6SS60 11-22 | 22 | 30 | 154 | 153 | 153 | 150 | 142 | 132 | 122 | 113 | 106 | 97 | 86 | 73 | 57 | 40 | 2631 | |
| — | 6SS60 12-22 | 22 | 30 | 168 | 167 | 167 | 164 | 155 | 144 | 133 | 124 | 116 | 106 | 94 | 80 | 62 | 44 | 2744 | |
| — | 6SS60 13-26 | 26 | 35 | 182 | 181 | 180 | 177 | 168 | 156 | 144 | 134 | 125 | 115 | 102 | 86 | 67 | 47 | 2932 | |
| — | 6SS60 14-26 | 26 | 35 | 196 | 195 | 194 | 191 | 181 | 168 | 155 | 144 | 135 | 123 | 109 | 93 | 73 | 51 | 3045 | |
| — | 6SS60 15-30 | 30 | 40 | 210 | 209 | 208 | 204 | 194 | 180 | 166 | 155 | 144 | 132 | 117 | 99 | 78 | 54 | 3233 | |
| — | 6SS60 16-30 | 30 | 40 | 224 | 223 | 222 | 218 | 207 | 192 | 177 | 165 | 154 | 141 | 125 | 106 | 83 | 58 | 3346 | |
rpm:2850 Outlet:G3"~G4"
| N0. | Description | N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|---|---|
| 1 |
Clamping spring |
14 |
O-ring |
27 |
Suction support |
40 |
Bearing bush |
| 2 |
End cover |
15 |
Oil chamber |
28 |
Strainer |
41 |
Screw |
| 3 |
Rubber cup |
16 | O-ring | 29 |
Screw |
42 |
Screw |
| 4 |
Motor body |
17 |
Screw |
30 |
Screw |
43 | Diffuser |
| 5 |
Screw |
18 |
Sand proof sheath |
31 |
Coupling |
44 |
Guide bush |
| 6 |
Washer |
19 |
Washer |
32 |
Bearing bush |
45 |
Valve seat |
| 7 |
Bearing seat |
20 |
Sand proof cap |
33 |
Intermediate support |
46 |
Check valve |
| 8 |
Stator |
21 |
Screw |
34 |
Guide bush |
47 | Screw |
| 9 |
Ball bearing |
22 |
Oil chamber cover |
35 |
Shaft |
48 |
Holder pipe |
| 10 |
Rotor |
23 |
Cable |
36 |
Shaft ring |
49 |
Cable cover |
| 11 |
Ball bearing |
24 |
Stud |
37 |
Diffuser cover |
50 |
Pump bod |
| 12 |
Gasket |
25 |
washer |
38 |
Impeller |
51 |
Outlet |
| 13 |
Thrust bearing |
26 |
Nut |
39 |
Diffuser |
52 |
Control box |
