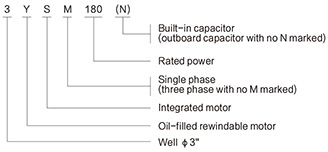

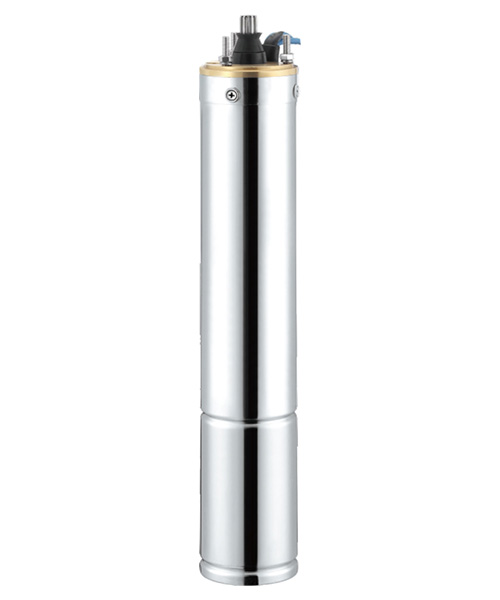

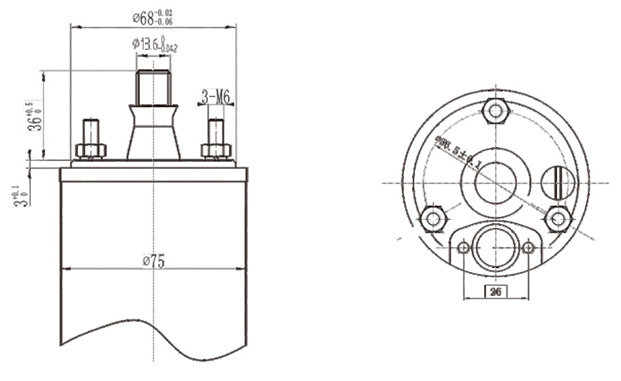

3YSM
TECHNICAL DATA:
-Pump/Motor
Speed: 2850rpm
lnsulation class: F
Protection grade: IP 68
Maximum fluid temperature up to +35℃
Minimum well diameter: 3"
Rewindable motor
Single-phase: 220-240V/50HZ
Equip with start control box or digital auto-control box
| MODEL | P₂ | N≈2850 L/ min | |||||||
| KW | HP |
Voltage (V) |
Ph |
1n (A) |
C0s φ |
η (%) |
L (mm) |
We1ght (kg) |
|
| 3YSM180 | 0.18 | 0.25 | 220-240V | 1 | 2.1 | 0.93 | 51 | 326 | 4.0 |
| 3YSM250 | 0.25 | 0.33 | 2.5 | 0.93 | 53 | 341 | 4.8 | ||
| 3YSM370 | 0.37 | 0.5 | 3.3 | 0.93 | 56 | 361 | 5.6 | ||
| 3YSM550 | 0.55 | 0.75 | 4.5 | 0.93 | 58 | 411 | 6.4 | ||
| 3YSM750 | 0.75 | 1 | 6.0 | 0.93 | 62 | 451 | 7.5 | ||
| 3YSM920 | 0.92 | 1.25 | 7.0 | 0.93 | 63 | 481 | 8.7 | ||
| 3YSM1100 | 1.1 | 1.5 | 7.8 | 0.93 | 64 | 496 | 10.0 | ||
| 3YSM1500 | 1.5 | 2 | 10.0 | 0.93 | 65 | 531 | 11.3 | ||
| N0. | Description | N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|---|---|
| 1 |
Clamping spring |
14 |
O-ring |
27 |
Suction support |
40 |
Bearing bush |
| 2 |
End cover |
15 |
Oil chamber |
28 |
Strainer |
41 |
Screw |
| 3 |
Rubber cup |
16 | O-ring | 29 |
Screw |
42 |
Screw |
| 4 |
Motor body |
17 |
Screw |
30 |
Screw |
43 | Diffuser |
| 5 |
Screw |
18 |
Sand proof sheath |
31 |
Coupling |
44 |
Guide bush |
| 6 |
Washer |
19 |
Washer |
32 |
Bearing bush |
45 |
Valve seat |
| 7 |
Bearing seat |
20 |
Sand proof cap |
33 |
Intermediate support |
46 |
Check valve |
| 8 |
Stator |
21 |
Screw |
34 |
Guide bush |
47 | Screw |
| 9 |
Ball bearing |
22 |
Oil chamber cover |
35 |
Shaft |
48 |
Holder pipe |
| 10 |
Rotor |
23 |
Cable |
36 |
Shaft ring |
49 |
Cable cover |
| 11 |
Ball bearing |
24 |
Stud |
37 |
Diffuser cover |
50 |
Pump bod |
| 12 |
Gasket |
25 |
washer |
38 |
Impeller |
51 |
Outlet |
| 13 |
Thrust bearing |
26 |
Nut |
39 |
Diffuser |
52 |
Control box |
