From ltaly to serve the world

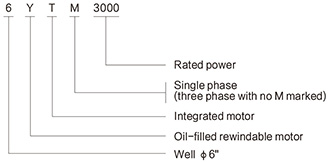

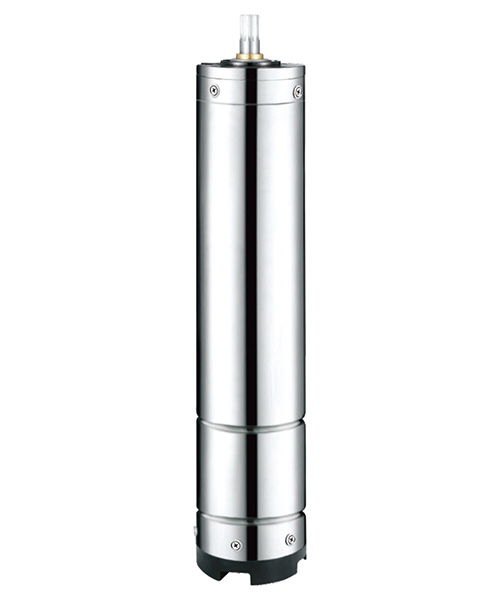

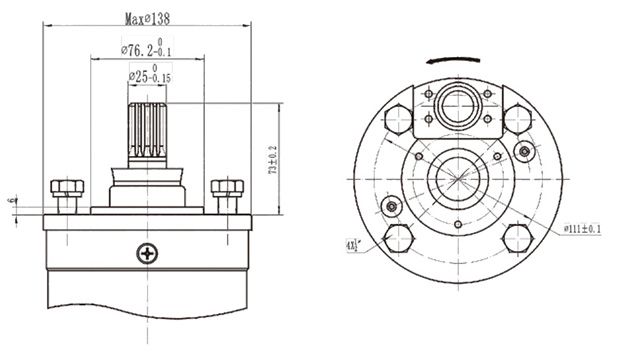

6YTM
TECHNICAL DATA:
-Pump/Motor
Speed: 2850rpm
lnsulation class: F
Protection grade: IP 68
Maximum fluid temperature up to +35℃
Minimum well diameter: 6"
Rewindable motor
Single-phase: 220-240V/50HZ
Three-phase: 380-415V/50HZ
Equip with start control box or digital auto-control box
| MODEL | P₂ | N≈2850 L/ min | |||||||
| KW | HP |
Voltage (V) |
Ph |
1n (A) |
C0s φ |
η (%) |
L (mm) |
We1ght (kg) |
|
| 6YTM1500 | 1.5 | 2 | 220-240V | 1 | 11.5 | 0.93 | 65 | 569.5 | 22.8 |
| 6YTM2200 | 2.2 | 3 | 15.5 | 0.93 | 67 | 627.5 | 24.9 | ||
| 6YTM3000 | 3 | 4 | 22.5 | 0.93 | 67 | 653.5 | 28.1 | ||
| 6YTM4000 | 4 | 5.5 | 29.5 | 0.93 | 68 | 703.5 | 33.9 | ||
| 6YTM5000 | 5.5 | 7.5 | 37.5 | 0.93 | 69 | 763.5 | 40.2 | ||
| 6YT1500 | 1.5 | 2 | 380-415V | 3 | 4.5 | 0.80 | 72 | 549.5 | 21.3 |
| 6YT2200 | 2.2 | 3 | 6.5 | 0.80 | 73 | 569.5 | 23 | ||
| 6YT3000 | 3 | 4 | 7.8 | 0.80 | 74 | 627.5 | 25.1 | ||
| 6YT4000 | 4 | 5.5 | 10.0 | 0.80 | 75 | 653.5 | 28.9 | ||
| 6YT5500 | 5.5 | 7.5 | 13.7 | 0.80 | 76 | 703.5 | 33.9 | ||
| 6YT7500 | 7.5 | 10 | 17.3 | 0.81 | 76 | 763.5 | 40.2 | ||
| 6YT9200 | 9.2 | 12.5 | 21.3 | 0.81 | 77 | 853.5 | 46.5 | ||
| 6YT11000 | 11 | 15 | 25.1 | 0.82 | 78 | 913.5 | 53.5 | ||
| 6YT15000 | 15 | 20 | 31.6 | 0.83 | 79 | 1013.5 | 67.7 | ||
| N0. | Description | N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|---|---|
| 1 |
Clamping spring |
14 |
O-ring |
27 |
Suction support |
40 |
Bearing bush |
| 2 |
End cover |
15 |
Oil chamber |
28 |
Strainer |
41 |
Screw |
| 3 |
Rubber cup |
16 | O-ring | 29 |
Screw |
42 |
Screw |
| 4 |
Motor body |
17 |
Screw |
30 |
Screw |
43 | Diffuser |
| 5 |
Screw |
18 |
Sand proof sheath |
31 |
Coupling |
44 |
Guide bush |
| 6 |
Washer |
19 |
Washer |
32 |
Bearing bush |
45 |
Valve seat |
| 7 |
Bearing seat |
20 |
Sand proof cap |
33 |
Intermediate support |
46 |
Check valve |
| 8 |
Stator |
21 |
Screw |
34 |
Guide bush |
47 | Screw |
| 9 |
Ball bearing |
22 |
Oil chamber cover |
35 |
Shaft |
48 |
Holder pipe |
| 10 |
Rotor |
23 |
Cable |
36 |
Shaft ring |
49 |
Cable cover |
| 11 |
Ball bearing |
24 |
Stud |
37 |
Diffuser cover |
50 |
Pump bod |
| 12 |
Gasket |
25 |
washer |
38 |
Impeller |
51 |
Outlet |
| 13 |
Thrust bearing |
26 |
Nut |
39 |
Diffuser |
52 |
Control box |
