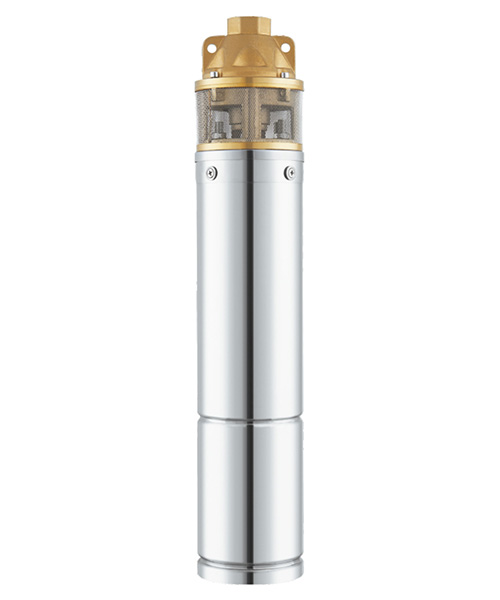

TECHNICAL DATA:
-Pump/Motor
Continuous service.
Qmax: 3.5(m³/h)
lnsulation class: B
Protection grade: IP 68
Maximum diameter: φ98mm
Highest temperature of liquid: 35℃
Options of different materials are available.

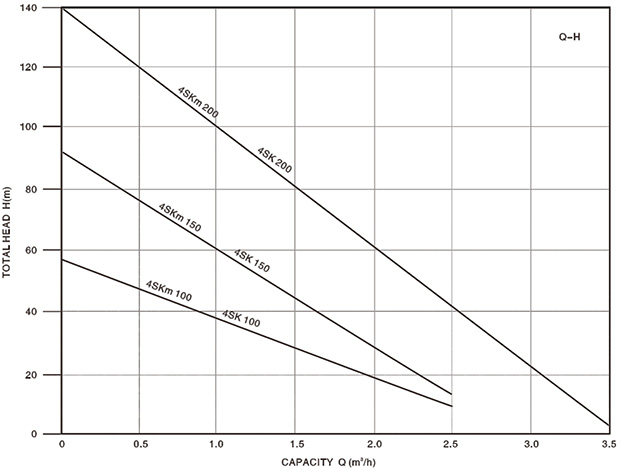

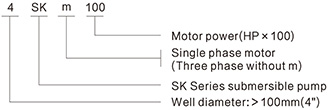

| Type | Motor power | Capacity and head | Length | |||||||||
| single phase 220-240V~ Hz50 | Three phase 380-415V~ Hz50 | m³/h | 0 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3.5 | |||
| KW | HP | L/ min | 0 | 8 | 17 | 25 | 33 | 42 | 58 | mm | ||
| 4SKm 100 | 4SK 100 | 0.75 | 1 | Head (m) | 57 | 49 | 39 | 30 | 19 | 10 | 一 | 485 |
| 4SKm 150 | 4SK 150 | 1.1 | 1.5 | 91 | 77 | 60 | 45 | 29 | 13 | 一 | 552 | |
| 4SKm 200 | 4SK 200 | 1.5 | 2 | 140 | 120 | 100 | 81 | 60 | 37 | 3 | 606 | |
rpm:2900 Outlet:G1"
| N0. | Description | N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|---|---|
| 1 | Clamping spring | 11 | Screw | 21 | Screw | 31 | Pump cover |
| 2 | End cover | 12 | Rotor | 22 | Cable sheld sleeve | 32 | Gasket |
| 3 | Rubber cup | 13 | Key | 23 | Screw | 33 | Discharge shamber |
| 4 | Motor case | 14 | Bearing | 24 | Oil chamber cover | 34 | Dutlet |
| 5 | Screw | 15 | Plain washer | 25 | Suction support | 35 | Screw |
| 6 | Locking ring | 16 | Mechanical seal | 26 | Strainer | 36 | Cable cover |
| 7 | Bearing seat | 17 | O-ring | 27 | Mechanical seal | 37 | Screw |
| 8 | Stator | 18 | Oil chamber | 28 | Circlip | 38 | Controller |
| 9 | Bearing | 19 | O-ring | 29 | Impeller | 39 | |
| 10 | O-ring | 20 | Oil seal | 30 | Pump body | 40 |
