TECHNICAL DATA:

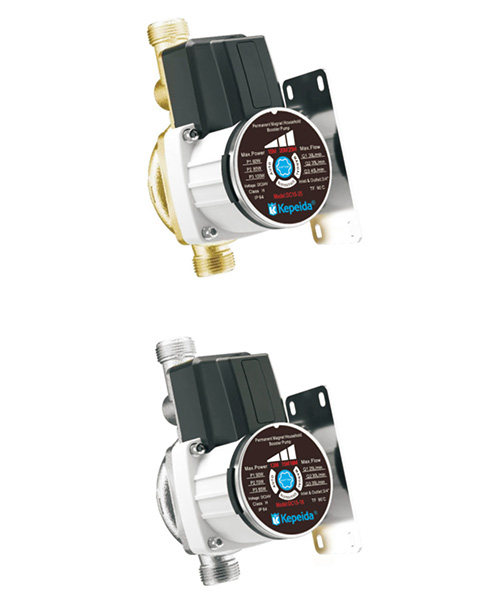

24V DC VARIABLE FREQUENCY

HOUSEHOLD BOOSTER PUMP

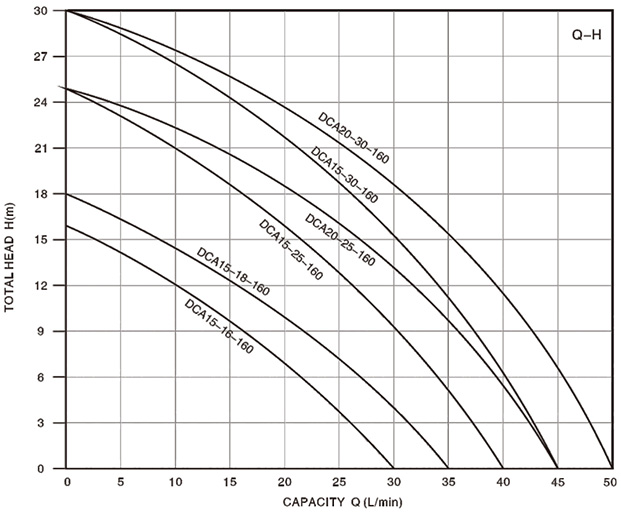

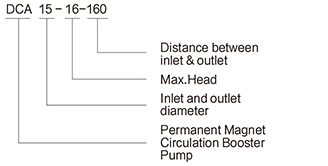

 Model Power(W) Lift(m) Flow(L/ min) Power supply
         (V-A)
Ⅲ filesⅡ f11esⅠ f11esⅢ filesⅠ 1 f11esⅠ f11esⅢ filesⅡ f11esⅠ f11es
DCA15-16-160/6045/1612/3025DC24V-3A
DCA15-18-160857050181512353025DC24V-3.5A
DCA15-25-1601008560252015403530DC24V-5.0A
DCA20-25-1601008560252015454035DC24V-5.0A
DCA15-30-1601309560302215453530DC24V-5.0A
DCA20-30-1601309560302215504035DC24V-5.0A



Home Booster Circulating Pump
1.The top discharging point (tap or shower head must be at least 1 meter below the water level in the tank.
2.Take care not to instal tapping point on the pump suction side. Accident opening may cause water backfow or air infow into the pipe work,
where pump does not perform stably.
3.Take care not to install pump on the boiler discharging side, so that to avoid damage or life loss caused by hot water.
4.Keep the inlet pressure no less than 0.01 MPa and no more than 0.6MPa.
5.Install the pump indoor and maintain protecting works against water, dripping, or frostbite
6.lf long suction pipe is installed, keep the tap open for 5 to 6 seconds then pump starts is suggested in the case of exceeding the storage
time limit.
7.Note:

7.1 Before installation, keep the pump in a place no more than 1 year, where temperature is -10°C to 40°C , humidity is
 below 80%, and free of corrosive gas, Regular inspection by professional

7.2 Pressure testing or leakage testing is strictly prohibited for pump with connected pipe work, taking due account of
 preventing pump from obsolescence,damages, or life loss

7.3 All home booster products are marked as IP code 42(ingress protection rating), and apply for 0.6Mpa max,system
 pressure. Products are manufactured and delivered with 1.5m wire as factory standard ,Operating instruction Install the
 pump. Switch the shift-knob onto ll (Auto) position and keep the flow rate at 2.5L/min(1.5m/h) so that pump starts
 automatically according to tapping point start-stop. Pump works uninterrupted when shift-knob is onto lll (manual)
 position. Before starting maintenance work on the pump, keep the shift-knob onto l (stop) position. In the case of faulted
 auto function, it is suggested to keep the shift-knob onto lll (manual) position for emergency.

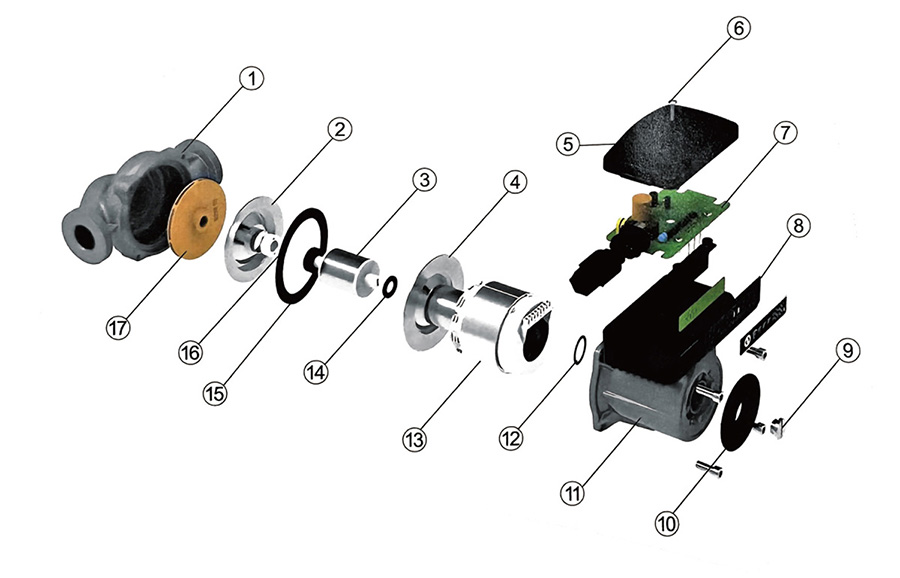

N0.DescriptionN0.DescriptionN0.Description
1Pump Body
7Mcu Board

13Stator

2Ceramic Bearing Seat8Control Box Seat14Gasket
3Rotor9Venting Screw15Thrust Bearing
4Stator S.s Shield10Name Plate16Gasket
5Control Box Cover11Motor Housing17Impeller
6Screw12Gasket
