From ltaly to serve the world
1. Special anti-rust treatment for cast iron pump body
and support
2. Anti-block system for impeller
3. Brass impeller
3. AISI 304 shaft
4. Max.liquid temperature: +40℃
5. Max.suction: +8 m
1. High efficiency bearing
2. Built-in thermal protector for single phase motor
(≤1.5 kW)
3. Insulation class: F
4. Protection class: IPX4
5. Max.ambient temperature: +40℃
MODEL | POWER | AMPERE |
MAX. FLOW L/ Min |
MAX. HEAD (m) |
SUCT. MAX (m) |
PIPE |
G. W (kg) |

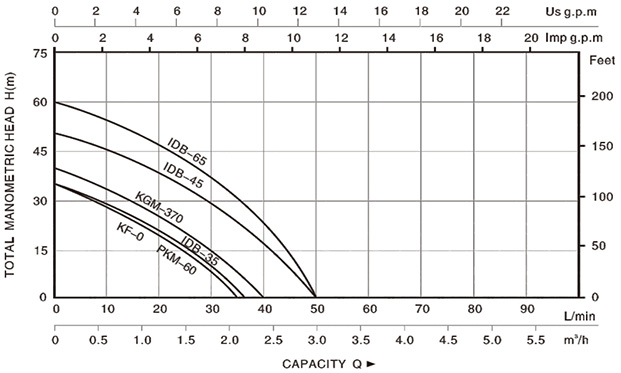

Q(m³/h) | 0 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | |
KW | HP | Q(L/ min) | 0 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | |||||||

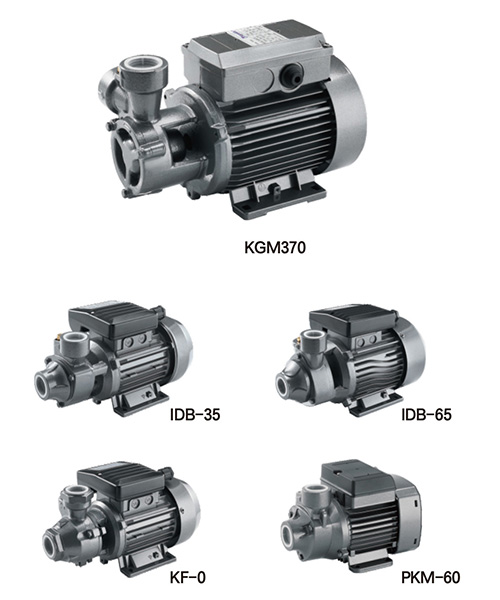

KGM-370 | 0.37 | 0.5 | 2.7 | 40 | 40 | 8 | 1"x1" | 9.5 |
H (m) |
40 | 30 | 25 | 20 | 15 | 10 | 6 | |
KF-0 | 0.37 | 0.5 | 2.7 | 35 | 35 | 8 | 1"x1" | 6 | 35 | 26 | 21 | 15 | 10 | 6 | |||
PKM-60 | 0.37 | 0.5 | 2.7 | 35 | 35 | 8 | 1"x1" | 5.5 | 35 | 26 | 21 | 15 | 10 | 6 | |||
IDB-35 | 0.37 | 0.50 | 2.7 | 36 | 35 | 8 | 1"x1" | 5.3 | 36 | 27 | 21 | 16 | 11 | 6 | 12 | ||
IDB-45 | 0.55 | 0.75 | 4.2 | 50 | 50 | 8 | 1"x1" | 8.2 | 50 | 40 | 35 | 30 | 26 | 21 | 16 | 13 | |
IDB-65 | 0.75 | 1.0 | 5.2 | 50 | 60 | 8 | 1"x1" | 9 | 60 | 49 | 43 | 36 | 30 | 25 | 19 |

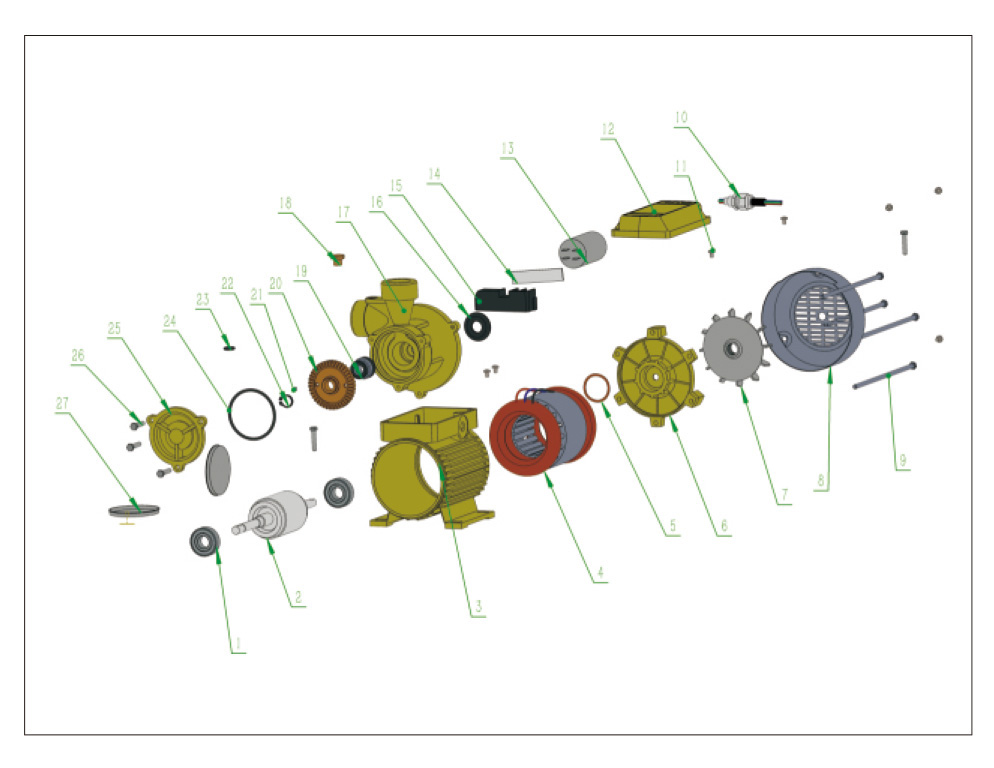

No. | Description | No. | Description | No. | Description |
1 | Bearing | 18 | Screw | 35 | |
2 | Rotor | 19 | Mechanical seal | 36 | |
3 | Motor case | 20 | Impeller | 37 | |
4 | Motor | 21 | Washer | 38 | |
5 | Wave gasket | 22 | Circlips | 39 | |
6 | End plate | 23 | O ring | 40 | |
7 | Fan | 24 | O ring | 41 | |
8 | Fan cover | 25 | Pump cover | 42 | |
9 | Screw | 26 | Screw | 43 | |
10 | Cabtyre sheath | 27 | Dust cap | 44 | |
11 | Screw | 28 | 45 | ||
12 | Terminal box | 29 | 46 | ||
13 | Capacitor | 30 | 47 | ||
14 | Capacitor slot | 31 | 48 | ||
15 | Terminal board | 32 | 49 | ||
16 | Water retaining ring | 33 | 50 | ||
17 | Pump body | 34 | 51 |
