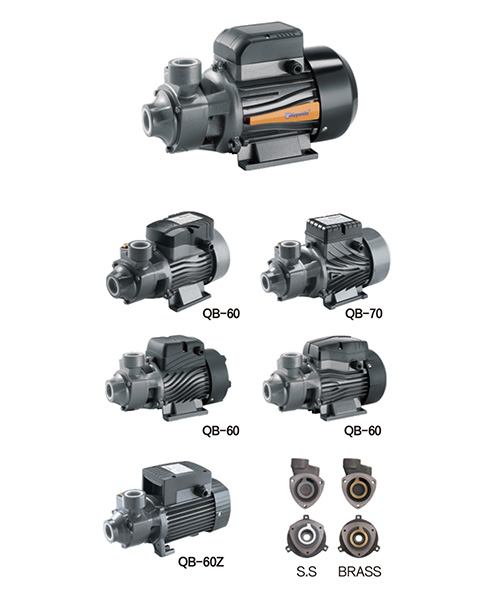

QB

QB

TECHNICAL DATA:

-Pump

1. Special anti-rust treatment for cast iron pump body

    and support

2. Anti-block system for impeller

3. Brass impeller

3. AISI 304 shaft

4. Max.liquid temperature: +40℃

5. Max.suction: +8 m


-Motor

1. High efficiency bearing

2. Built-in thermal protector for single phase motor

    (≤1.5 kW)

3. Insulation class: F

4. Protection class: IPX4

5. Max.ambient temperature: +40℃


MODEL POWER AMPERE MAX. FLOW
L/ Min
MAX. HEAD
(m)
SUCT. MAX
(m)
PIPE G. W
(kg)

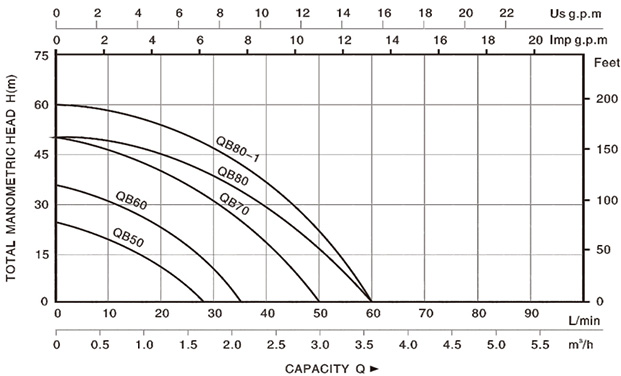

Q(m³/h) 0 0.6 0.9 1.2 1.5 1.8 2.1 2.4 3.0
KW HP Q(L/ min) 0 10 15 20 25 30 35 40 50
QB50 0.25 0.3 2.3 28 23 8 1"x1" 4.2 H
(m)
23 15 10 7 3
QB60 0.37 0.50 2.7 35 35 8 1"x1" 5.5 35 25 21 18 14 11
QB70 0.55 0.75 4.2 50 50 8 1"x1" 8.5 50 40 35 30 26 21 16 12
QB80 0.75 1.0 5.2 50 60 8 1"x1" 8.8 60 49 43 36 30 25 19 13
QB80-1 0.75 1.0 5.2 60 60 8 1.5"x1.5" 9 60 50 45 41 35 30 26 21 10

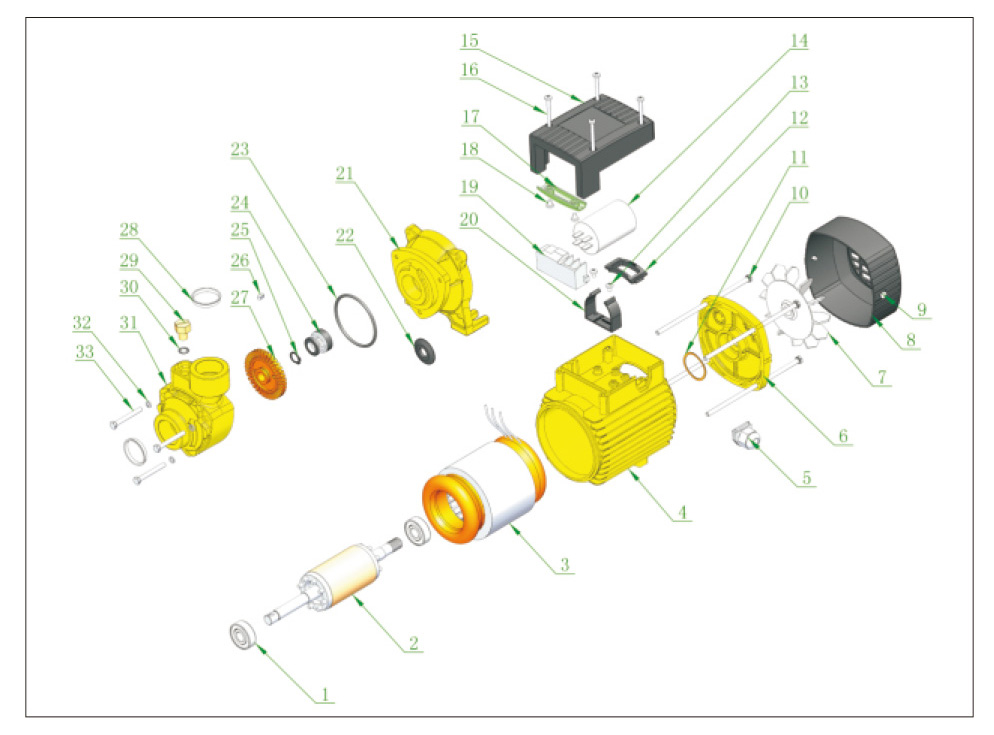

No. Description No. Description No. Description
1 Bearing 18 Screw 35
2 Rotor 19 Terminal board 36
3 Stator 20 Capacitor holder 37
4 Motor case 21 Motor front bracket 38
5 Water proof fairlead 22 Splash guard 39
6 Motor end cover 23 O-ring 40
7 Fan 24 Mechanical seal 41
8 Fan cover 25 Circlip 42
9 Screw 26 Key 43
10 Motor tie-rod 27 Impeller 44
11 Adjusting ring 28 Dust cap 45
12 Cable sheath 29 Air screw 46
13 Screw 30 O-ring 47
14 Capacitor 31 Pump body 48
15 Terminal box 32 Washer 49
16 Screw 33 Screw 50
17 Handle sheath 34 51
