From ltaly to serve the world
1. 3-second time delay of pump start after plugging into the socket to avoid potential danger caused by electric sparks
2. Automatic stop in 6 minutes in case of no water inside
3. Automatic switching to small flow control system in condition of small water flow
4. Automatic 10-second operation every 72 hours for anti-block protection in case of no use for long time
5. Anti-freezing in low temperature environment by automatic start and stop control to maintain the water temperature inside pump between 4℃ and 60℃
6. LCD screen with on/off pressure setting,operation status and malfunction alam
7. Remote monitoring and controlling by computer or mobile phone
1. High efficiency bearing
2. Motor with copper winding
3. Built-in thermal protector for single phase motor(≤1.5 kW)
4. Insulation class: F
5. Protection class: IPX4
6. Max.ambient temperature: +40℃
MODEL | POWER | AMPERE |
MAX. FLOW L/ Min |
MAX. HEAD (m) |
SUCT. MAX (m) |
PIPE |
G. W (kg) |

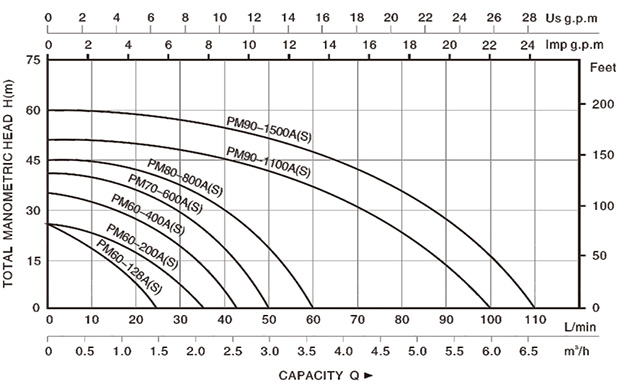

Q(m³/h) | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | 5.4 | |
KW | HP | Q(L/ min) | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | |||||||
PM60-128A(S) | 0.12 | 0.16 | 1.5 | 25 | 25 | 8 | 1"x1" | 8.0 |
H (m) |
25 | 15 | 6 | |||||||
PM60-200A(S) | 0.2 | 0.27 | 2.0 | 35 | 25 | 8 | 1"x1" | 9.6 | 25 | 18 | 11 | 5 | |||||||
PM60-400A(S) | 0.4 | 0.53 | 2.7 | 42 | 35 | 8 | 1"x1" | 10.1 | 35 | 26 | 19 | 10 | |||||||
PM70-600A(S) | 0.6 | 0.8 | 4.2 | 50 | 40 | 8 | 1"x1" | 12.8 | 40 | 32 | 25 | 16 | 8 | ||||||
PM80-800A(S) | 0.8 | 1.1 | 5.2 | 60 | 45 | 8 | 1"x1" | 14.0 | 45 | 37 | 30 | 23 | 15 | 8 | |||||
PM90-1100A(S) | 1.1 | 1.5 | 8.0 | 100 | 50 | 8 | 1.5"×1.5" | 20.7 | 50 | 45 | 40 | 35 | 29 | 24 | 20 | 15 | 11 | 7 | |
PM90-1500A(S) | 1.5 | 2 | 9.2 | 110 | 60 | 8 | 1.5"×1.5" | 22.1 | 60 | 54 | 49 | 43 | 37 | 32 | 28 | 22 | 17 | 11 |
No. | Description | No. | Description | No. | Description |
1 | Hex bolt | 18 | Screw | 35 | Dust cap |
2 | Washer | 19 | Capacitor | 36 | Key |
3 | Pump body | 20 | Terminal box cover | 37 | Impeller |
4 | O-ring | 21 | Screw | 38 | Flange pad |
5 | Filling plug | 22 | Screw | 39 | Strainer |
6 | O-ring | 23 | Fan cover | 40 | Flange |
7 | Splash guard | 24 | Fan | 41 | Washer |
8 | Screw | 25 | Motor case | 42 | Screw |
9 | Motor front bracket | 26 | Pressure tank | 43 | |
10 | Bearing | 27 | Pressure switch | 44 | |
11 | Rotor | 28 | O-ring | 45 | |
12 | Adjusting ring | 29 | O-ring | 46 | |
13 | Stator | 30 | Washer | 47 | |
14 | Water proof fairlead | 31 | Circlip | 48 | |
15 | Cable clip | 32 | Mechanical seal | 49 | |
16 | Terminal box | 33 | Flow switch | 50 | |
17 | Screw | 34 | Water injection | 51 |
