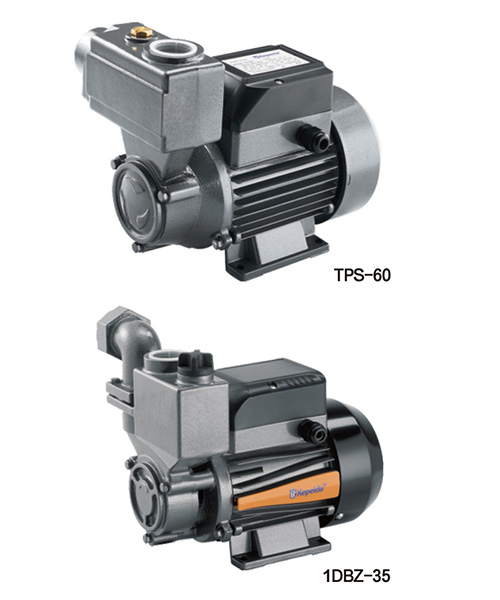

1. Special anti-rust treatment for cast iron pump body and support
2. Anti-block system for impeller
3. Brass impeller
3. AISI 304 shaft
4. Max.liquid temperature: +40℃
5. Max.suction: +8 m
1. High efficiency bearing
2. Built-in thermal protector for single phase motor(≤1.5 kW)
3. Insulation class: F
4. Protection class: IPX4
5. Max.ambient temperature: +40℃

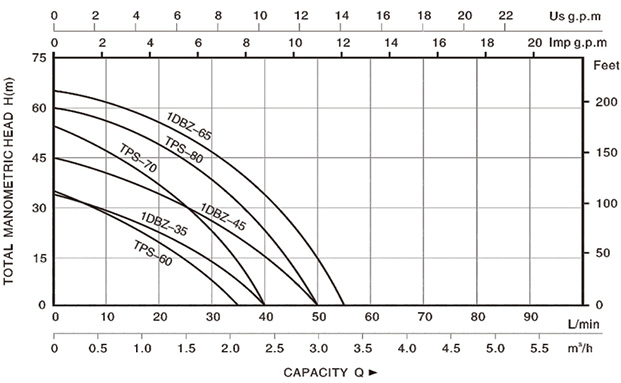

MODEL | POWER | AMPERE |
MAX. FLOW L/ Min |
MAX. HEAD (m) |
SUCT. MAX (m) |
PIPE |
G. W (kg) |
Q(m³/h) | 0 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 3.0 | |
KW | HP | Q(L/ min) | 0 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | |||||||
TPS-60 | 0.37 | 0.50 | 2.7 | 35 | 36 | 8 | 1"x1" | 6.5 |
H (m) |
36 | 27 | 21 | 15 | 10 | 6 | |||
TPS-70 | 0.55 | 0.75 | 4.2 | 40 | 55 | 8 | 1"x1" | 8.7 | 55 | 42 | 35 | 28 | 21 | 14 | 7 | |||
TPS-80 | 0.75 | 1 | 5.2 | 50 | 60 | 8 | 1"x1" | 9.5 | 78 | 57 | 50 | 44 | 37 | 31 | 25 | 18 | 5 | |
1DBZ-35 | 0.37 | 0.50 | 2.7 | 40 | 35 | 8 | 1"x1" | 8 | 35 | 27 | 22 | 18 | 14 | 9 | 5 | |||
1DBZ-45 | 0.55 | 0.75 | 4.2 | 50 | 45 | 8 | 1"x1" | 10 | 45 | 36 | 31 | 28 | 23 | 19 | 14 | 9 | ||
1DBZ-65 | 0.75 | 1.0 | 5.2 | 55 | 65 | 8 | 1"x1" | 11 | 65 | 53 | 47 | 41 | 35 | 29 | 23 | 17 | 5 |

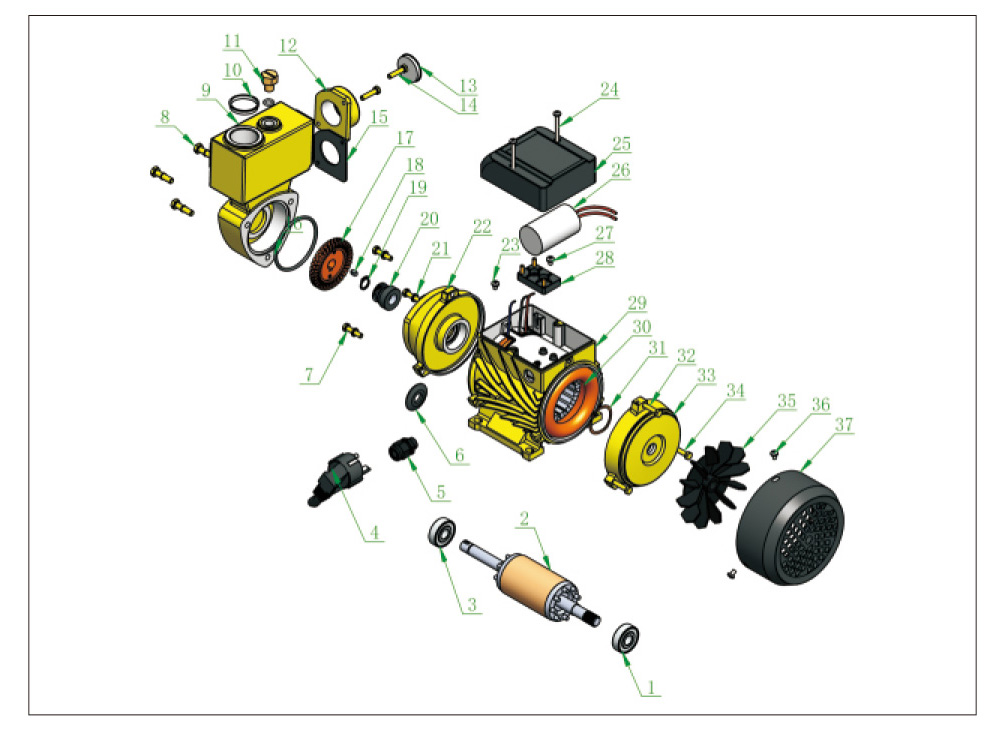

No. | Description | No. | Description | No. | Description |
1 | Bearing | 18 | Key | 35 | Fan |
2 | Rotor | 19 | Spring | 36 | Screw |
3 | Bearing | 20 | Mechanical seal | 37 | Fan cover |
4 | Cable line | 21 | Washer | 38 | |
5 | Water proof fairlead | 22 | Motor font bracket | 39 | |
6 | Water blocking ring | 23 | Screw | 40 | |
7 | Screw | 24 | Screw | 41 | |
8 | Screw | 25 | Terminal box cover | 42 | |
9 | Pump body | 26 | Capacitor | 43 | |
10 | Dust cap | 27 | Screw | 44 | |
11 | Water injection | 28 | Binding post | 45 | |
12 | Flange | 29 | Motor case | 46 | |
13 | Dust cap | 30 | Stator | 47 | |
14 | Screw | 31 | Adjusting ring | 48 | |
15 | Flange pad | 32 | Screw | 49 | |
16 | O-ring | 33 | Motor end cover | 50 | |
17 | Impeller | 34 | Screw | 51 |
