From ltaly to serve the world
1. Special anti-rust treatment for cast iron pump body and support
2. Anti-block system for impeller
3. Brass impeller
3. AISI 304 shaft
4. Max.liquid temperature: +40℃
5. Max.suction: +8 m
1. High efficiency bearing
2. Built-in thermal protector for single phase motor(≤1.5 kW)
3. Insulation class: F
4. Protection class: IPX4
5. Max.ambient temperature: +40℃
MODEL | POWER | AMPERE |
MAX. FLOW L/ Min |
MAX. HEAD (m) |
SUCT. MAX (m) |
PIPE |
G. W (kg) |

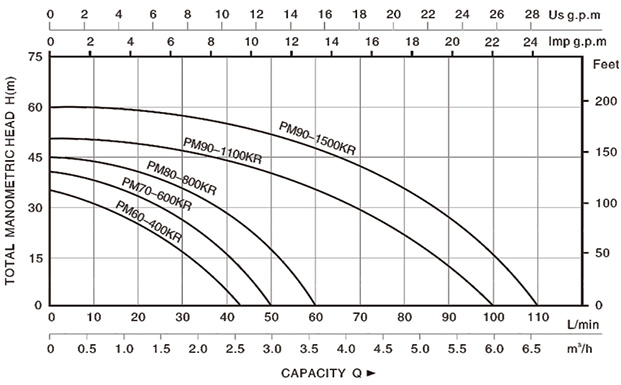

Q(m³/h) | 0 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 3.0 | 3.6 | |
KW | HP | Q(L/ min) | 0 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 50 | 60 | |||||||
PM60-400KR | 0.4 | 0.53 | 2.7 | 42 | 35 | 8 | 1"x1" | 10.1 |
H (m) |
35 | 31 | 26 | 22 | 19 | 14 | 10 | 6 | ||
PM70-600KR | 0.6 | 0.8 | 4.2 | 50 | 40 | 8 | 1"x1" | 12.8 | 40 | 32 | 28 | 25 | 20 | 16 | 12 | 8 | 5 | ||
PM80-800KR | 0.8 | 1.1 | 5.2 | 60 | 45 | 8 | 1"x1" | 14 | 45 | 37 | 34 | 30 | 27 | 23 | 18 | 15 | 8 | ||
PM90-1100KR | 1.1 | 1.5 | 8 | 100 | 50 | 8 | 1.5"x1.5" | 20.7 | 50 | 45 | 42 | 40 | 37 | 35 | 32 | 29 | 24 | 20 | |
PM90-1500KR | 1.5 | 2 | 9.2 | 110 | 60 | 8 | 1.5"x1.5" | 22.1 | 60 | 54 | 52 | 49 | 46 | 43 | 40 | 37 | 32 | 28 |

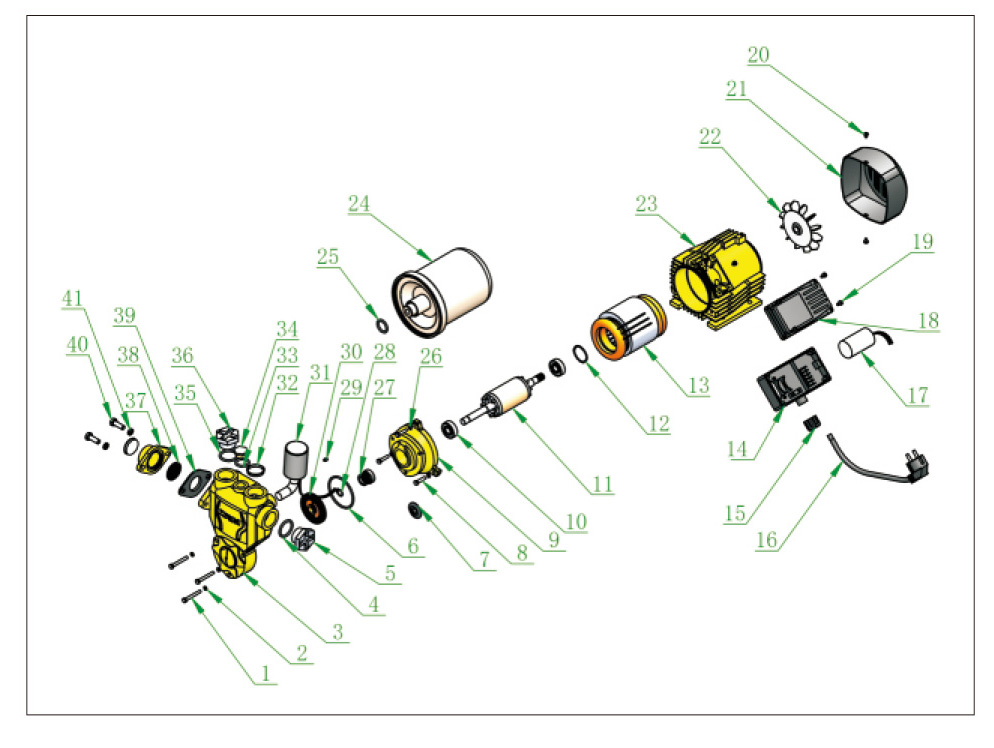

No. | Description | No. | Description | No. | Description |
1 | Screw | 18 | Terminal box cover | 35 | O-ring |
2 | Washer | 19 | Screw | 36 | Filling plug |
3 | Pump body | 20 | Screw | 37 | Flange |
4 | O-ring | 21 | Fan cover | 38 | Strainer |
5 | Filling plug | 22 | Fan | 39 | Flange pad |
6 | O-ring | 23 | Motor case | 40 | Screw |
7 | Water blocking ring | 24 | Pressure tank | 41 | Washer |
8 | Screw | 25 | O-ring | 42 | |
9 | Motor font bracket | 26 | Washer | 43 | |
10 | Bearing | 27 | Mechanical seal | 44 | |
11 | Rotor | 28 | Spring | 45 | |
12 | Adjusting ring | 29 | Key | 46 | |
13 | Stator | 30 | Impeller | 47 | |
14 | Terminal box | 31 | Pressure switch | 48 | |
15 | Water proof fairlead | 32 | Dust cap | 49 | |
16 | Cable line | 33 | O-ring | 50 | |
17 | Capacitor | 34 | Water injection | 51 |
