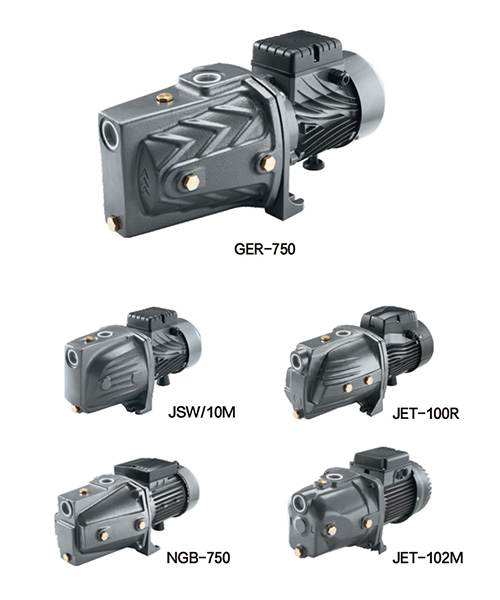

TECHNICAL DATA:

-Pump

1. Cast iron pump body and support under special anti-rust treatment

2. Stainless steel impeller / Brass impeller

3. AISI 304 shaft

4. Max.liquid temperature: +40℃

5. Max.suction: +9 m


-Motor

1. High efficiency bearing

2. Motor with copper winding

3. Built-in thermal protector for single phase motor

4. Insulation class: F

5. Protection class: IPX4

6. Max.ambient temperature: +40℃


MODELPOWERAMPEREMAX. FLOW
L/ Min
MAX. HEAD
(m)
SUCT. MAX
(m)
PIPEG.W
(kg)

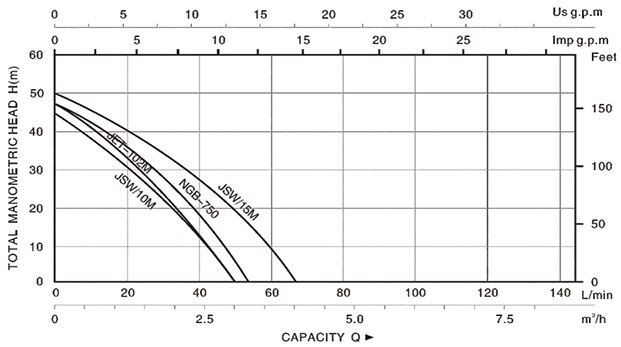

Q(m³/h)00.60.91.21.51.82.12.43.03.64.2
KWHPQ(L/ min)010152025303540506070
NGB-7500.751.04.6524891"x1"17H
(m)
48413633272217122

JET-102M0.751.04.6504891"x1"164839332925201510


JSW/10M0.751.04.6504591"x1"144541332823191410


JSW/15M1.11.58.5655091"x1"165043393531272419125

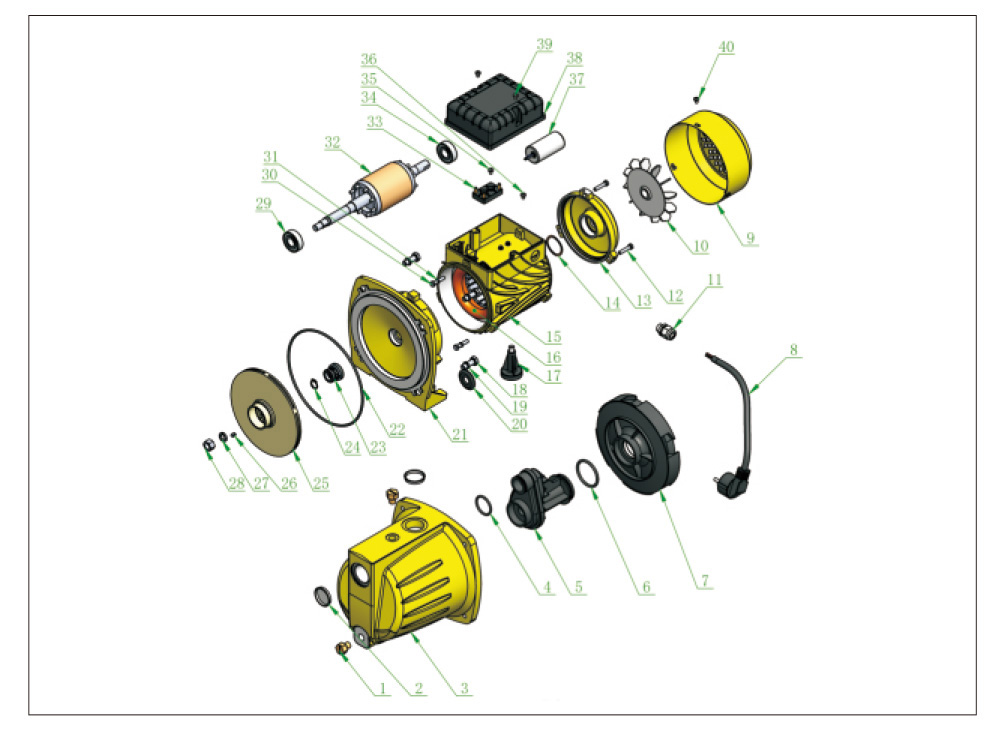

No.DescriptionNo.DescriptionNo.Description
1Screw18Screw35Screw
2Dust cap19Washer36Screw
3Pump body20Water blocking ring37Capacitor
4O-ring21Motor font bracket38Terminal box cover
5Venturi tube22O-ring39Screw
6O-ring23Mechanical l seal40Screw
7Diffuser24Circlip41
8Cable line25Impeller42
9Fan cover26Key43
10Fan27Washer44
11Water proof fairlead28Nut cap45
12Screw29Bearing46
13Motor end case30Screw47
14Adjusting ring31Washer48
15Motor case32Rotor49
16Stator33Binding post50
17Support your feet34Bearing51
