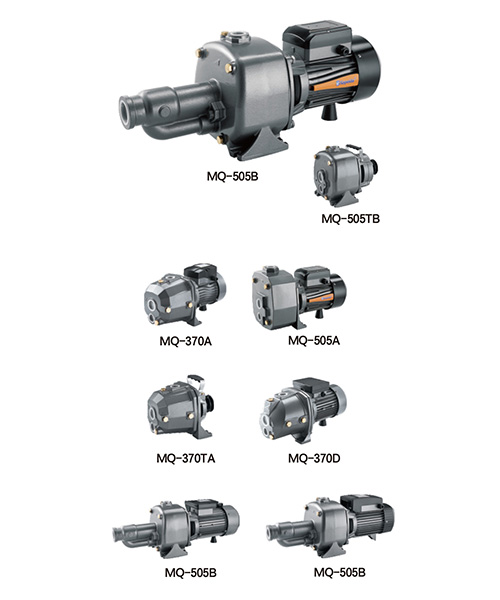

1. Cast iron pump body and support under special anti-rust treatment
2. Stainless steel impeller / Brass impeller
3. AISI 304 shaft
4. Max.liquid temperature: +40℃
5. Max.suction: +35 m
1. High efficiency bearing
2. Motor with copper winding
3. Built-in thermal protector for single phase motor
4. Insulation class: F
5. Protection class: IPX4
6. Max.ambient temperature: +40℃
MODEL | POWER | AMPERE | MAX. FLOW L/ Min | MAX. HEAD (m) | SUCT. MAX (m) | PIPE | G. W (kg) | Q(m³/h) | 0 | 0.6 | 1.2 | 1.8 | 2.1 | 2.4 | 3.0 | 3.3 | 3.6 | 4.2 | |
KW | HP | Q(L/ min) | 0 | 10 | 20 | 30 | 35 | 40 | 50 | 55 | 60 | 70 | |||||||
MQ-255 | 0.55 | 0.75 | 3.5 | 35 | 40 | 15 | 1.25"×1" | 16 | H (m) | 40 | 34 | 25 | 4 | — | — | — | — | — | — |
MQ-370 | 0.75 | 1 | 4 | 40 | 50 | 20 | 1.25"×1" | 17 | 50 | 42 | 33 | 12 | 8 | — | — | — | — | — | |
MQ-505 | 1.1 | 1.5 | 7.9 | 75 | 60 | 25 | 1.25"×1" | 24 | 60 | 56 | 50 | 44 | 43 | 41 | 38 | 35 | 34 | 22 | |
MQ-605 | 1.5 | 2 | 8.5 | 80 | 65 | 30 | 1.25"×1" | 25 | 65 | 62 | 55 | 48 | 47 | 42 | 39 | 36 | 34 | 30 | |
MQ-705 | 2.2 | 3 | 9 | 85 | 70 | 35 | 1.25"×1" | 26 | 70 | 66 | 58 | 53 | 51 | 48 | 44 | 40 | 36 | 31 |

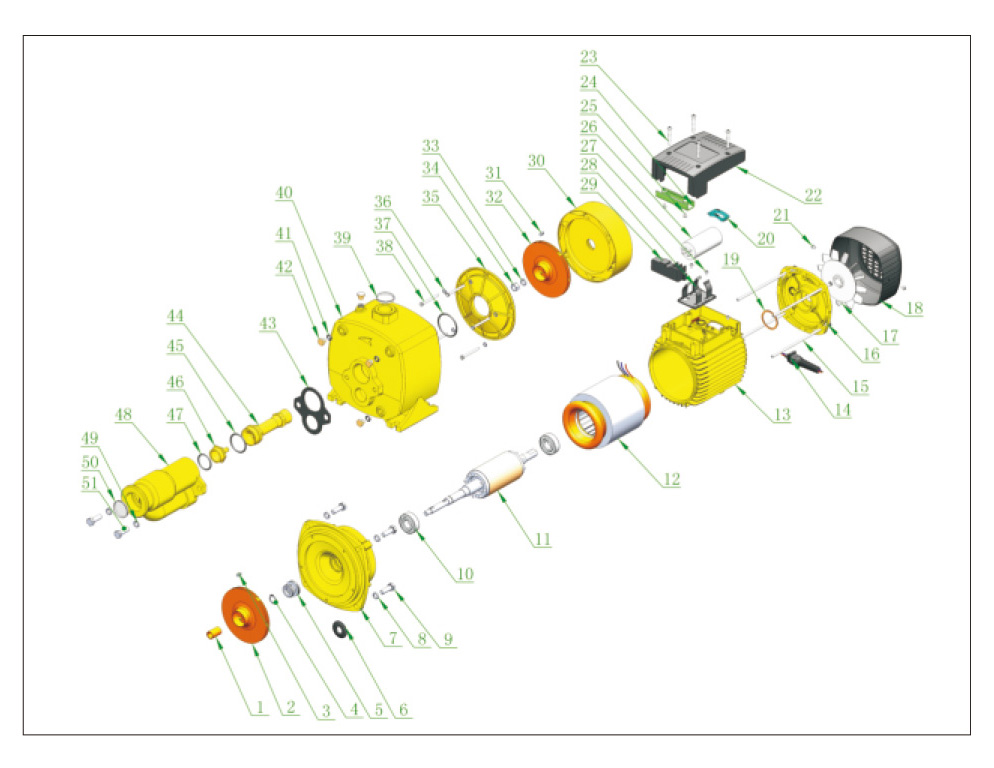

No. | Description | No. | Description | No. | Description |
1 | Coupling | 18 | Fan cover | 35 | Hdding disc |
2 | Impeller | 19 | Adjusting ring | 36 | Washer |
3 | Key | 20 | Cable sheath | 37 | O-ring |
4 | Spring | 21 | Screw | 38 | Screw |
5 | Mechanical seal | 22 | Terminal box | 39 | Dust cap |
6 | Splash guard | 23 | Terminal box screw | 40 | Pump body |
7 | Motor front bracket | 24 | Handle cover plate | 41 | Washer |
8 | Washer | 25 | Screw | 42 | Screw |
9 | Screw | 26 | Capacitor | 43 | Ejector seal |
10 | Bearing | 27 | Screw | 44 | Venturitube |
11 | Rotor | 28 | Capacitor holder | 45 | O-ring |
12 | Stator | 29 | Terminal board | 46 | Nozzle |
13 | Motor case | 30 | Diffuser | 47 | O-ring |
14 | Water proof fairlead | 31 | Key | 48 | Ejector |
15 | Motor tie-rod | 32 | Impeller | 49 | Washer |
16 | Motor end cover | 33 | Plain washer | 50 | Dust cap |
17 | Fan | 34 | Impeller nut | 51 | Screw |
