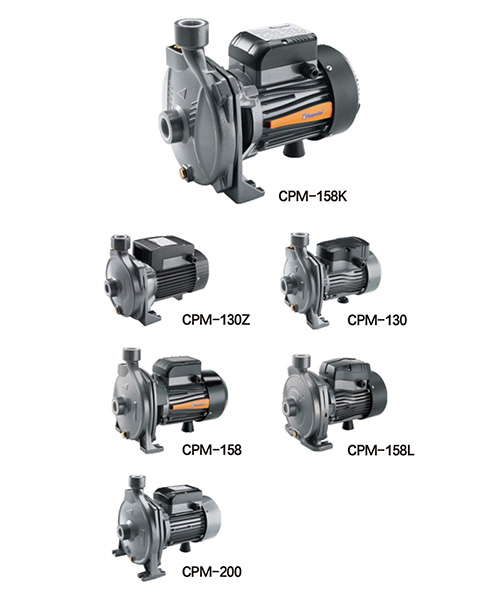

CPM
TECHNICAL DATA:
-Pump
1. Cast iron pump body and support under special anti-rust treatment
2. Stainless steel impeller / Brass impeller
3. AISI 304 shaft
4. Max.liquid temperature: +40℃
5. Max.suction: +8 m
-Motor
1. High efficiency bearing
2. Motor with copper winding
3. Built-in thermal protector for single phase motor
4. Insulation class: F
5. Protection class: IPX4
6. Max.ambient temperature: +40℃

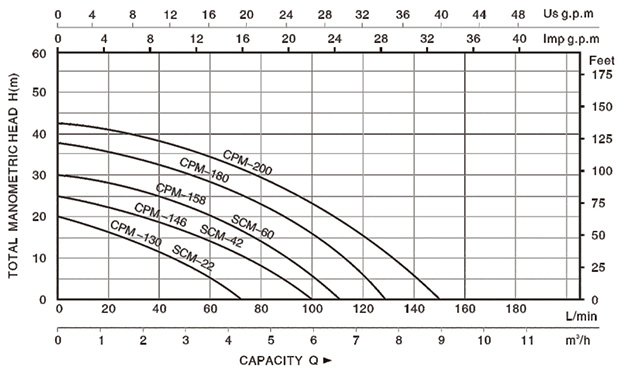

| MODEL | POWER | AMPERE |
MAX. FLOW L/ Min |
MAX. HEAD (m) |
SUCT. MAX (m) |
PIPE |
G. W (kg) |
Q(m³/h) | 0 | 0.6 | 1.2 | 2.4 | 3.6 | 4.5 | 6.0 | 7.8 | 9.6 | 12.6 | |
| KW | HP | Q(L/ min) | 0 | 10 | 20 | 40 | 60 | 75 | 100 | 130 | 160 | 200 | |||||||
| CPM-130 | 0.37 | 0.5 | 2.3 | 72 | 20 | 8 | 1"x1" | 8.4 |
H (m) |
20 | 18 | 16 | 14.5 | 12.5 | 9.5 | — | — | — | — |
| CPM-146 | 0.55 | 0.75 | 4 | 100 | 25 | 8 | 1"x1" | 12 | 25 | 24 | 23 | 21 | 20 | 15.5 | — | — | — | — | |
| CPM-158 | 0.75 | 1.0 | 5.8 | 110 | 30 | 8 | 1"x1" | 14 | 30 | 28 | 26 | 24 | 22 | 17 | 16 | — | — | — | |
| CPM-180 | 1.1 | 1.5 | 8.5 | 130 | 38 | 8 | 1.25"x1" | 20 | 38 | 36 | 35 | 33 | 31 | 28 | 26 | 10 | — | — | |
| CPM-200 | 1.5 | 2 | 9 | 150 | 42 | 8 | 1.25"x1" | 22 | 42 | 40 | 38 | 36 | 34 | 30 | 14 | 7 | — | — | |
| SCM-22 | 0.37 | 0.5 | 2.3 | 72 | 20 | 8 | 1"x1" | 9.2 | 20 | 18 | 16 | 14.5 | 12 | 9.5 | |||||
| SCM-42 | 0.55 | 0.75 | 4 | 100 | 25 | 8 | 1"x1" | 12 | 25 | 24 | 23 | 21 | 20 | 15.5 | |||||
| SCM-60 | 0.75 | 1.0 | 5.8 | 110 | 30 | 8 | 1"x1" | 12.5 | 30 | 28 | 26 | 24 | 22 | 17 | 10 | ||||

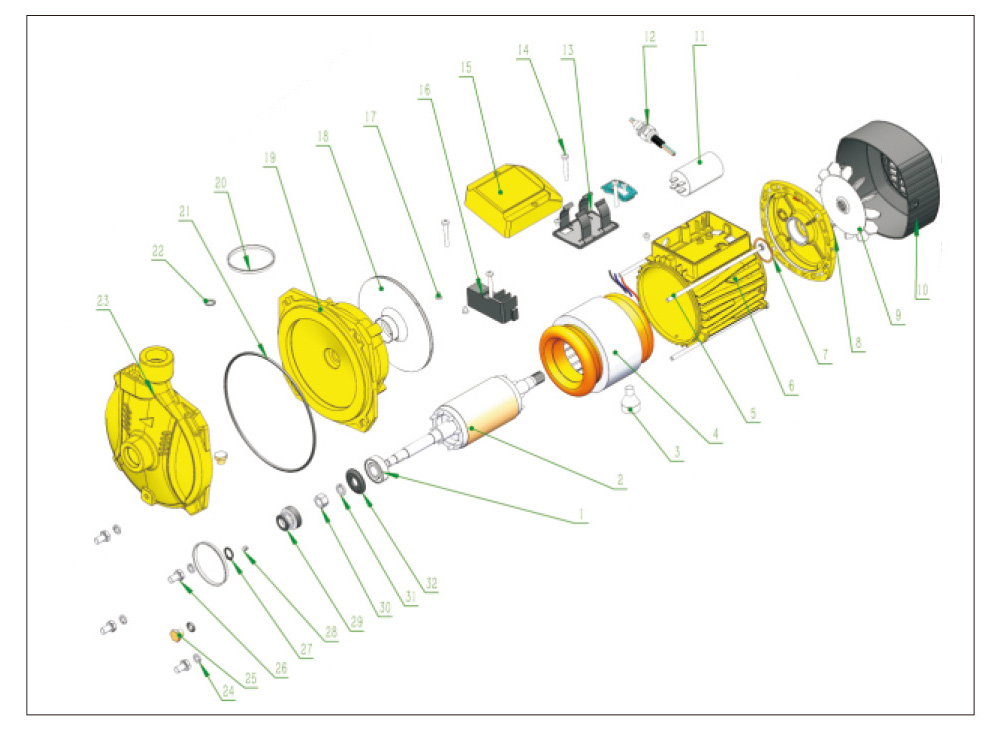

| No. | Description | No. | Description | No. | Description |
| 1 | Bearing | 18 | Impeller | 35 | Pump body |
| 2 | Rotor shaft | 19 | Connection | 36 | |
| 3 | Base | 20 | Dust cap | 37 | |
| 4 | Stator | 21 | O ring | 38 | |
| 5 | Drawbow screw | 22 | O ring | 39 | |
| 6 | Motor case | 23 | Pump body | 40 | |
| 7 | Wave gasket | 24 | Gasket | 41 | |
| 8 | End plate | 25 | Screw | 42 | |
| 9 | Fan | 26 | Screw | 43 | |
| 10 | Fan cover | 27 | Jump ring | 44 | |
| 11 | Capacitor | 28 | Key | 45 | |
| 12 | Cabty re sheath | 29 | Oil seal | 46 | |
| 13 | Capacitor slot | 30 | Nut | 47 | |
| 14 | Screw | 31 | Spring washer | 48 | |
| 15 | Capacitor cover | 32 | Water retaining ring | 49 | |
| 16 | Wire clip | 33 | 50 | ||
| 17 | Screw | 34 | 51 |
