From ltaly to serve the world

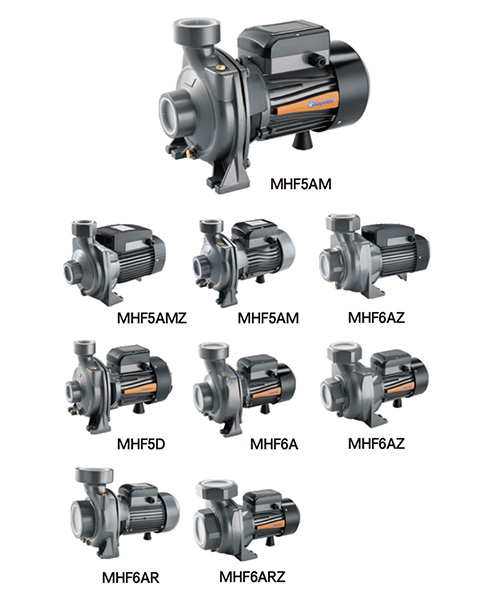

MHF
TECHNICAL DATA:
-Pump
1. Cast iron pump body and support under special anti-rust treatment
2. Stainless steel impeller / Brass impeller
3. AISI 304 shaft
4. Max.liquid temperature: +40℃
5. Max.suction: +8 m
-Motor
1. High efficiency bearing
2. Motor with copper winding
3. Built-in thermal protector for single phase motor
4. Insulation class: F
5. Protection class: IPX4
6. Max.ambient temperature: +40℃

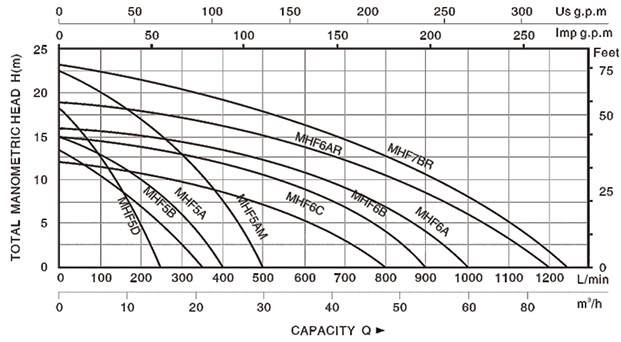

| MODEL | POWER | AMPERE |
MAX. FLOW L/ Min |
MAX. HEAD (m) |
SUCT. MAX (m) |
PIPE |
G. W (kg) |
Q(m³/h) | 0 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 30 | |
| KW | HP | Q(L/ min) | 0 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | |||||||
| MHF5D | 0.75 | 1.0 | 5.8 | 250 | 18 | 8 | 1.5"x1.5" | 13 |
H (m) |
18 | 13.5 | 10 | 7 | 3 | ||||
| MHF5B | 0.75 | 1.0 | 5.8 | 350 | 13.5 | 8 | 2"x2" | 15 | 13.5 | 11 | 10 | 9 | 8 | 7 | 5.5 | 4.5 | 2 | |
| MHF5A | 1.1 | 1.5 | 8.5 | 400 | 15 | 8 | 2"x2" | 16 | 15 | 12.5 | 11.5 | 10.5 | 9 | 7.5 | 6.5 | 5 | 3 | |
| MHF5AM | 1.5 | 2.0 | 11 | 500 | 22.5 | 8 | 2"x2" | 21 | 22.5 | 18.5 | 16.5 | 14.5 | 13 | 11 | 9.5 | 7.5 | 4 | |
| MHF6C | 1.1 | 1.5 | 8.5 | 800 | 12 | 8 | 3"x3" | 25 | 12 | 11 | 10.5 | 10 | 9.5 | 9 | 8.5 | 8 | 7.5 | |
| MHF6B | 1.5 | 2.0 | 9.5 | 900 | 15 | 8 | 3"x3" | 28.5 | 15 | 14 | 13.5 | 12.5 | 11.5 | 11 | 10.5 | 9.5 | 8.5 | |
| MHF6A | 2.2 | 3.0 | 11 | 1000 | 16.5 | 8 | 3"x3" | 31 | 16.5 | 14.5 | 14 | 13.5 | 13 | 12 | 11 | 10.5 | 9.5 | |
| MHF6AR | 2.2 | 3.0 | 11 | 1200 | 18.5 | 8 | 4"x4" | 37.5 | 18.5 | 16.5 | 15.5 | 14.5 | 14 | 13.8 | 13.3 | 13 | 12 | |
| MHF7BR | 3.0 | 4.0 | 17 | 1250 | 21 | 8 | 4"x4" | 42 | 21 | 20 | 19.5 | 19 | 18.5 | 18 | 17.5 | 17 | 16.5 | |

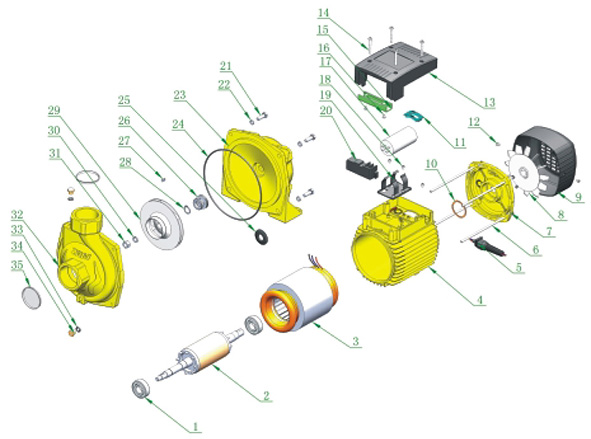

| No. | Description | No. | Description | No. | Description |
| 1 | Bearing | 18 | Screw | 35 | Dust cap |
| 2 | Rotor | 19 | Capacitor holder | 36 | |
| 3 | Stator | 20 | Terminal board | 37 | |
| 4 | Motor case | 21 | Screw | 38 | |
| 5 | Water proof fairlead | 22 | Washer | 39 | |
| 6 | Motor tie-rod | 23 | Motor front bracket | 40 | |
| 7 | Motor end cover | 24 | O-ring | 41 | |
| 8 | Fan | 25 | Oil seal | 42 | |
| 9 | Fan cover | 26 | Mechanical seal | 43 | |
| 10 | O-ring | 27 | Key | 44 | |
| 11 | Cable sheath | 28 | Circlip | 45 | |
| 12 | Screw | 29 | Impeller | 46 | |
| 13 | Terminal box | 30 | Plain washer | 47 | |
| 14 | Screw | 31 | Impeller nut | 48 | |
| 15 | Handle sheath | 32 | Pump body | 49 | |
| 16 | Screw | 33 | Washer | 50 | |
| 17 | Capacitor | 34 | Air screw | 51 |
