From ltaly to serve the world

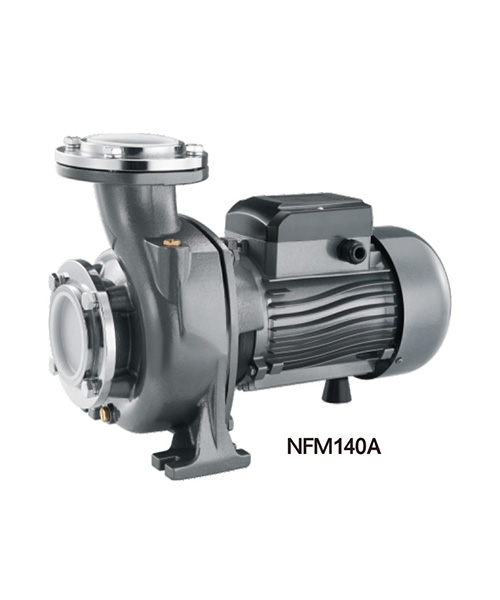

NFM
TECHNICAL DATA:
-Pump
1. Cast iron pump body and support under special anti-rust treatment
2. Stainless steel impeller / Brass impeller
3. AISI 304 shaft
4. Max.liquid temperature: +40℃
5. Max.suction: +8 m
-Motor
1. High efficiency bearing
2. Motor with copper winding
3. Built-in thermal protector for single phase motor
4. Insulation class: F
5. Protection class: IPX4
6. Max.ambient temperature: +40℃

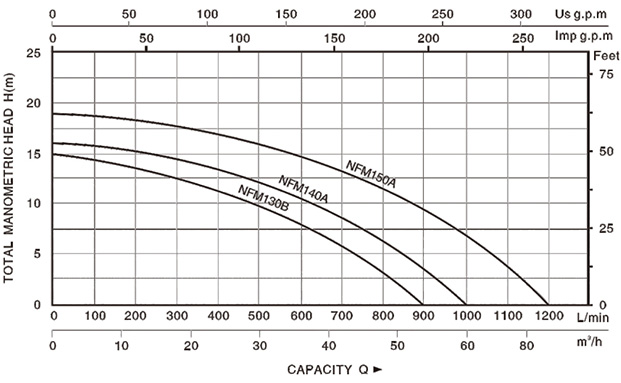

| MODEL | POWER | AMPERE |
MAX. FLOW L/ Min |
MAX. HEAD (m) |
SUCT. MAX (m) |
PIPE |
G. W (kg) |
Q(m³/h) | 0 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | |
| KW | HP | Q(L/ min) | 0 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | |||||||
| NFM130B | 1.5 | 2 | 9.5 | 900 | 15 | 8 | 3"x3" | 28 |
H (m) |
15 | 14.5 | 14 | 13.7 | 13.3 | 13 | 12 | 11 | 10 |
| NFM140A | 2.2 | 3 | 11 | 1000 | 16.5 | 8 | 3"x3" | 35 | 16.5 | 16 | 15 | 14.5 | 14 | 13.7 | 13.3 | 13 | 12.7 | |
| NFM150A | 3 | 4 | 17 | 1200 | 18.5 | 8 | 3"x3" | 38 | 18.5 | 18 | 17.5 | 17 | 16.5 | 16 | 15.5 | 15 | 14.5 | |

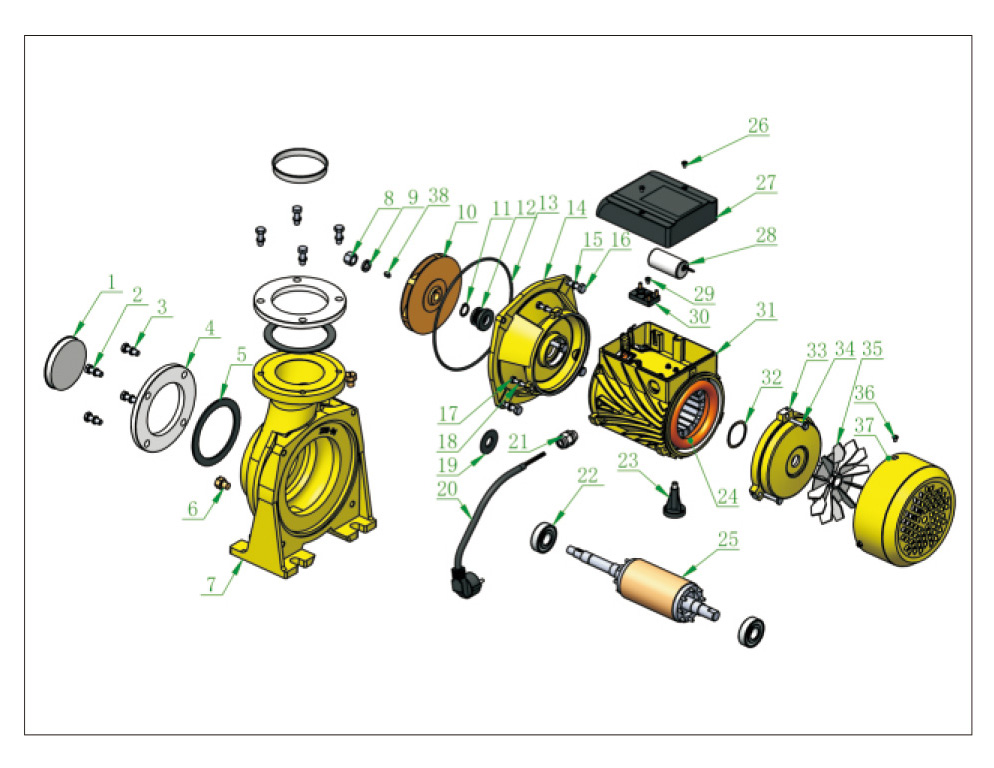

| No. | Description | No. | Description | No. | Description |
| 1 | Dust cap | 18 | Washer | 35 | Fan |
| 2 | Screw | 19 | Water blocking ring | 36 | Screw |
| 3 | Washer | 20 | Cable line | 37 | Fan cover |
| 4 | Flange | 21 | Water proof fairlead | 38 | Key |
| 5 | Flange pad | 22 | Bearing | 39 | |
| 6 | Screw | 23 | Support your feet | 40 | |
| 7 | Pump body | 24 | Stator | 41 | |
| 8 | Nut cap | 25 | Rotor | 42 | |
| 9 | Washer | 26 | Screw | 43 | |
| 10 | Impeller | 27 | Terminal box cover | 44 | |
| 11 | Circlip | 28 | Capacitor | 45 | |
| 12 | Mechanical l seal | 29 | Screw | 46 | |
| 13 | O-ring | 30 | Binding post | 47 | |
| 14 | Motor font bracket | 31 | Motor case | 48 | |
| 15 | Washer | 32 | Adjusting ring | 49 | |
| 16 | Screw | 33 | Motor end cover | 50 | |
| 17 | Screw | 34 | Screw | 51 |
