From ltaly to serve the world
2MCP
TECHNICAL DATA:
-Pump
1. Cast iron pump body and support under special anti-rust treatment
2. Stainless steel impeller / Brass impeller
3. AISI 304 shaft
4. Max.liquid temperature: +40℃
5. Max.suction: +8 m
-Motor
1. High efficiency bearing
2. Motor with copper winding
3. Built-in thermal protector for single phase motor
4. Insulation class: F
5. Protection class: IPX4
6. Max.ambient temperature: +40℃
| MODEL | POWER | AMPERE |
MAX. FLOW L/ Min |
MAX. HEAD (m) |
SUCT. MAX (m) |
PIPE |
G. W (kg) |

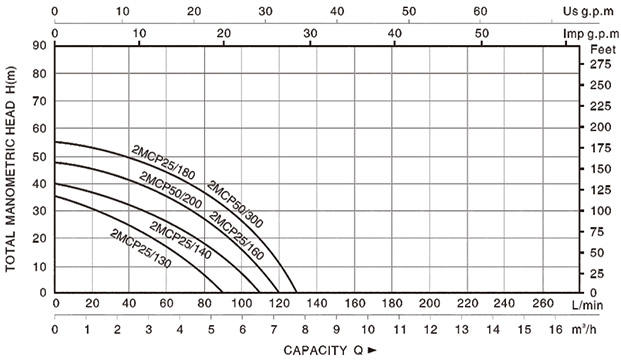

Q(m³/h) | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6.0 | 6.6 | 7.5 | 8.4 | 9.6 | |
| KW | HP | Q(L/ min) | 0 | 20 | 40 | 60 | 80 | 100 | 110 | 125 | 140 | 160 | |||||||
| 2MCP25/130 | 0.75 | 1 | 7.5 | 90 | 35 | 8 | 1.25"x1" | 19 |
H (m) |
35 | 30 | 25 | 19 | 10 | |||||
| 2MCP25/140 | 1.1 | 1.5 | 9.5 | 110 | 40 | 8 | 1.25"x1" | 23 | 40 | 37 | 34 | 31 | 27 | 19 | 15 | ||||
| 2MCP25/160 | 1.5 | 2.0 | 11 | 120 | 48 | 8 | 1.25"x1" | 25 | 48 | 46 | 44 | 40 | 35 | 25 | 19 | ||||
| 2MCP25/180 | 2.2 | 3.0 | 13 | 130 | 55 | 8 | 1.25"x1" | 30 | 55 | 53 | 49 | 45 | 40 | 30 | 25 | 15 | |||
| 2MCP50/200 | 1.5 | 2.0 | 11 | 120 | 48 | 8 | 1.5"x1.25" | 25 | 48 | 46 | 44 | 40 | 35 | 25 | 19 | ||||
| 2MCP50/300 | 2.2 | 3.0 | 13 | 130 | 55 | 8 | 1.5"x1.25" | 27 | 55 | 53 | 49 | 45 | 40 | 30 | 25 | 15 | |||

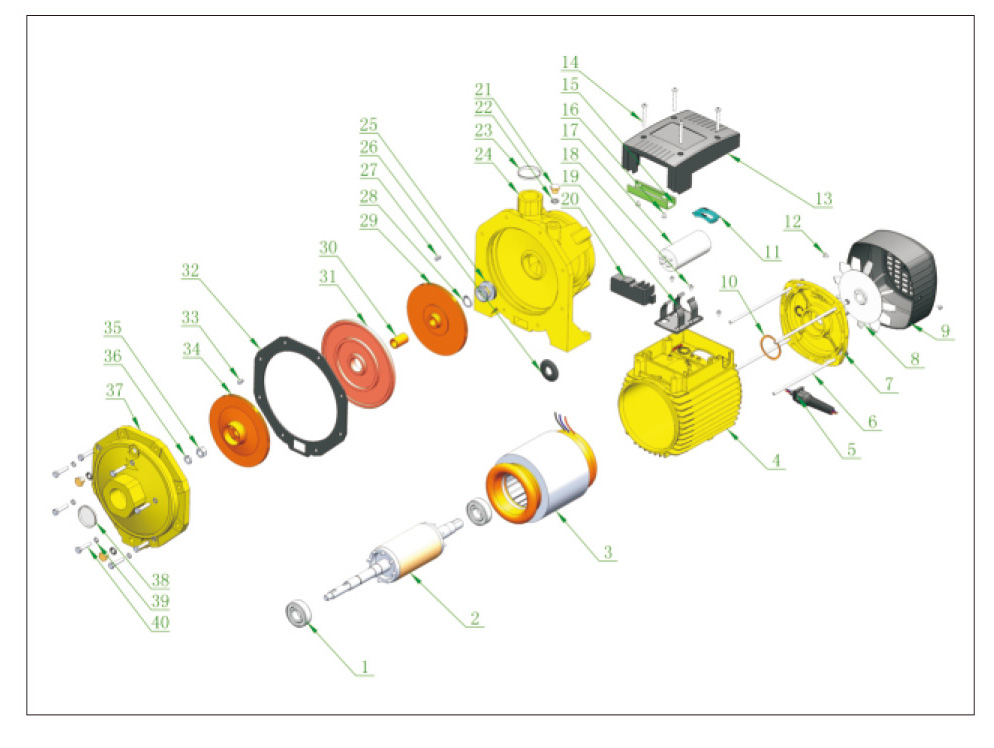

| No. | Description | No. | Description | No. | Description |
| 1 | Bearing | 18 | Screw | 35 | Impeller nut |
| 2 | Rotor | 19 | Capacitor holder | 36 | Circlip |
| 3 | Stator | 20 | Terminal board | 37 | Pump body |
| 4 | Motor case | 21 | Air screw | 38 | Dust cap |
| 5 | Water proof fairlead | 22 | Washer | 39 | Bolt |
| 6 | Motor tie-rod | 23 | Dust cap | 40 | Pump body screw |
| 7 | Motor end cover | 24 | Motor front bracket | 41 | |
| 8 | Fan | 25 | Mechanical seal | 42 | |
| 9 | Fan cover | 26 | Oil seal | 43 | |
| 10 | Adjusting ring | 27 | Key | 44 | |
| 11 | Cable sheath | 28 | Plain washer | 45 | |
| 12 | Screw for fan cover | 29 | Impeller | 46 | |
| 13 | Terminal box | 30 | Coupling | 47 | |
| 14 | Screw for terminal box | 31 | Impeller sepatator | 48 | |
| 15 | Terminal board | 32 | Gasket | 49 | |
| 16 | Screw | 33 | Key | 50 | |
| 17 | Capacitor | 34 | Impeller | 51 |
