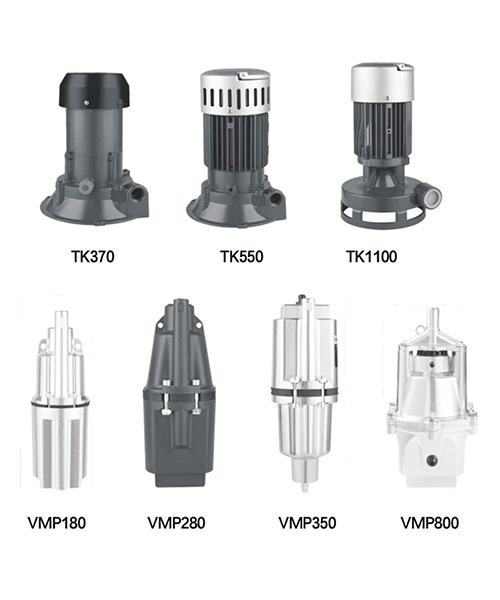

TK/VMP
| MODEL | POWER |
INLET/OUTLET (Inch) |
N. W (Kg) |
L×W×H (mm) |

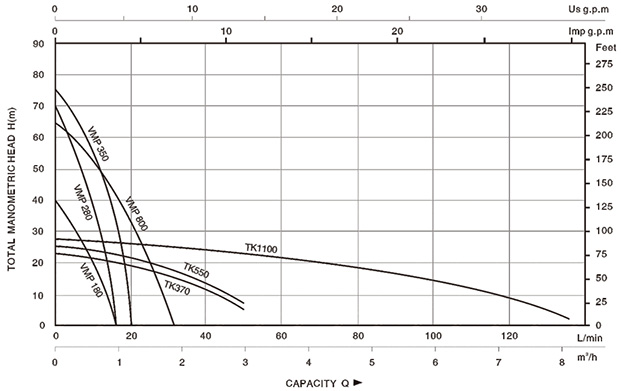

Q(m³/h) | 0 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 6 | 7.5 | 8.2 | |
| KW | HP | Q(L/ min) | 0 | 17 | 25 | 33 | 42 | 50 | 67 | 100 | 125 | 137 | ||||
| TK370 | 0.37 | 0.50 | 3/4"×3/4" | 5.7 | 240×240×300 |
H (m) |
22 | 20 | 18 | 15 | 11 | 6 | ||||
| TK550 | 0.55 | 0.75 | 3/4"×3/4" | 7.5 | 245×245×325 | 24 | 22 | 20 | 17 | 13 | 8 | |||||
| TK1100 | 1.1 | 1.5 | 11/4"×11/4" | 10 | 245×245×385 | 26 | 25 | 23.5 | 22 | 20 | 18 | 15 | 1.5 | 7 | 3 | |
| MODEL | POWER |
MAX. FLOW L/ Min |
MAX. HEAD (m) |
OUTLET (mm) |
G. W (kg) |
PUMP DIAMETER (mm) |
PACKING SIZE (mm) |
QUANTITY (Set) |
|
| KW | HP | ||||||||
| VMP 180 | 0.18 | 0.24 | 18 | 40 | 17 | 3.0 | 76 | 345×220×265/4PCS | 6000 |
| VMP 280 | 0.28 | 0.38 | 18 | 70 | 19 | 4.0 | 98 | 380×250×320/4PCS | 4000 |
| VMP 350 | 0.35 | 0.5 | 20 | 75 | 19 | 4.5 | 98 | 360×260×330/4PCS | 3900 |
| VMP 800 | 0.37 | 0.5 | 33 | 65 | 19 | 5.8 | 165 | 300×150×165/4PCS | 3300 |
