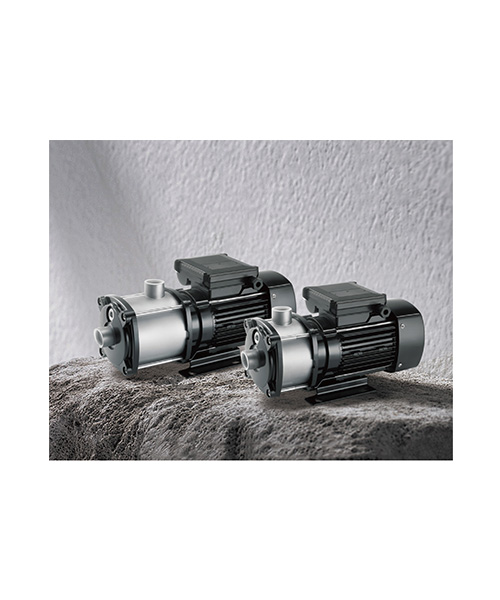

MH(M)
TECHNICAL DATA:
Advantages & Features
◎ Fully enclosed,air-cooled,squirrel-cage motor
◎ Working mode:S1
◎ Protection class:IPX4
◎ Insulation class:F
◎ Standard voltage:Single phase 220V/50Hz;
Three phase 380V/50Hz
◎ Single phase motor equip with a built-in thermal
overload protector,three phase motor must be connected
to motor starter according to localregulations
◎ Impeller,pump body,diffusor:Stainless steel 304
(Stainless steel 316 for selection)
Working conditions
◎ Thin and clean liquid that cannot react chemically with the pump material,non
inflammable and explosive liquid without solid particles and fibers.
◎ When the density of the conveying medium is bigger than clean water,a big
power motor is required
◎ Medium temperature range:0℃-60℃
◎ Maximum ambient temperature:+40℃
◎ Maximum installation height:related to factors such as pump NPSH(cavitation
margin),medium temperature,sea level height of installation location,and inlet
pipeline loss and so on
◎ Maximum working pressure:10Bar
◎ Maximum inlet pressure:limited by the maximum working pressure

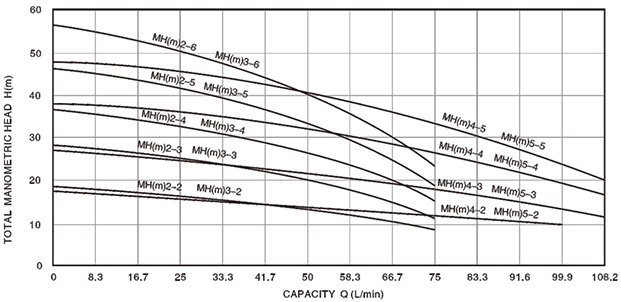

| MODEL | POWER | Inlet/ Outlet | Q(m³/h) | 0 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | |
| KW | HP | In | Q(L/ min) | 0 | 8.3 | 16.7 | 25 | 33.3 | 41.7 | 50 | 58.3 | 66.7 | 75 | |
| MH(m)2-2 | 0.25 | 0.3 | 1〞×1〞 | H (m) | 19.5 | 18.5 | 18 | 17.5 | 16.5 | 15 | 14.5 | 13 | 11 | 9 |
| MH(m)2-3 | 0.37 | 0.5 | 1〞×1〞 | 28.5 | 27.5 | 26 | 25.5 | 24.5 | 23 | 21 | 18 | 16 | 12 | |
| MH(m)2-4 | 0.55 | 0.75 | 1〞×1〞 | 37.5 | 36.5 | 35.5 | 34 | 32 | 30.5 | 28 | 25 | 21 | 15 | |
| MH(m)2-5 | 0.55 | 0.75 | 1〞×1〞 | 47.5 | 46 | 44.5 | 42.5 | 40 | 37.5 | 35 | 30 | 25 | 19 | |
| MH(m)2-6 | 0.75 | 1.0 | 1〞×1〞 | 57.5 | 55.5 | 53.5 | 52 | 48 | 45 | 41 | 35 | 31 | 23 | |
| MODEL | POWER | Inlet/ Outlet | Q(m³/h) | 0 | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | |
| KW | HP | In | Q(L/ min) | 0 | 8.3 | 16.7 | 25 | 33.3 | 41.7 | 50 | 58.3 | 66.7 | 75 | |
| MH(m)3-2 | 0.25 | 0.3 | 1〞×1〞 | H (m) | 19.5 | 18.5 | 18 | 17.5 | 16.5 | 15 | 14.5 | 13 | 11 | 9 |
| MH(m)3-3 | 0.37 | 0.5 | 1〞×1〞 | 28.5 | 27.5 | 26 | 25.5 | 24.5 | 23 | 21 | 18 | 16 | 12 | |
| MH(m)3-4 | 0.55 | 0.75 | 1〞×1〞 | 37.5 | 36.5 | 35.5 | 34 | 32 | 30.5 | 28 | 25 | 21 | 15 | |
| MH(m)3-5 | 0.55 | 0.75 | 1〞×1〞 | 47.5 | 46 | 44.5 | 42.5 | 40 | 37.5 | 35 | 30 | 25 | 19 | |
| MH(m)3-6 | 0.75 | 1.0 | 1〞×1〞 | 57.5 | 55.5 | 53.5 | 52 | 48 | 45 | 41 | 35 | 31 | 23 | |
| MODEL | POWER | Inlet/ Outlet | Q(m³/h) | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 6.5 | |
| KW | HP | In | Q(L/ min) | 0 | 16.7 | 33.3 | 50 | 66.7 | 83.3 | 100 | 108 | |
| MH(m)4-2 | 0.37 | 0.5 | 1〞×1〞 | H (m) | 19 | 18 | 17.5 | 16.5 | 15.5 | 13 | 10 | |
| MH(m)4-3 | 0.55 | 0.75 | 1〞×1〞 | 28 | 26.5 | 25 | 23 | 21.5 | 18 | 14 | 11 | |
| MH(m)4-4 | 0.75 | 1.0 | 1〞×1〞 | 38 | 36 | 35 | 33 | 30 | 25 | 18 | 16 | |
| MH(m)4-5 | 0.75 | 1.0 | 1〞×1〞 | 48 | 46 | 43 | 40 | 37.5 | 32 | 24 | 20 | |
| MODEL | POWER | Inlet/ Outlet | Q(m³/h) | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 6.5 | |
| KW | HP | In | Q(L/ min) | 0 | 16.7 | 33.3 | 50 | 66.7 | 83.3 | 100 | 108 | |
| MH(m)5-2 | 0.37 | 0.5 | 1〞×1〞 | H (m) | 19 | 18 | 17.5 | 16.5 | 15.5 | 13 | 10 | |
| MH(m)5-3 | 0.55 | 0.75 | 1〞×1〞 | 28 | 26.5 | 25 | 23 | 21.5 | 18 | 14 | 11 | |
| MH(m)5-4 | 0.75 | 1.0 | 1〞×1〞 | 38 | 36 | 35 | 33 | 30 | 25 | 18 | 16 | |
| MH(m)5-5 | 0.75 | 1.0 | 1〞×1〞 | 48 | 46 | 43 | 40 | 37.5 | 32 | 24 | 20 | |
