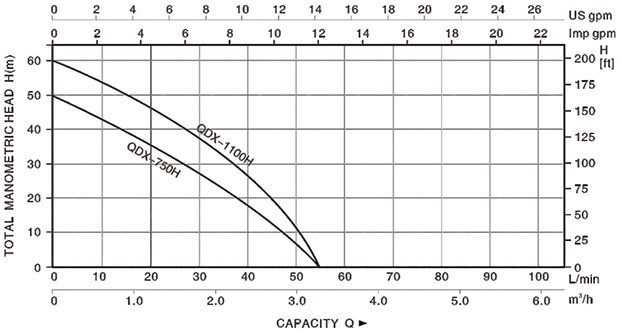

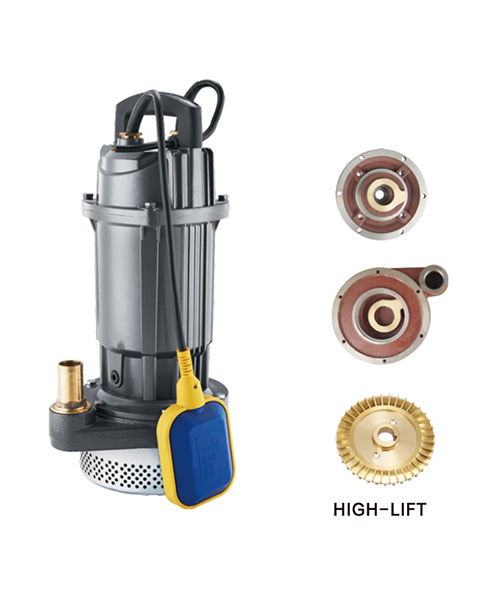

QDX-H

QDX-H

TECHNICAL DATA:

-Pump

Cast iron pump body under special

anti-rust treatment

Max.immersion depth: 5 m

Max.liquid temperature: + 40 ℃

Liquid pH value: 6.5-8


-Motor

Copper winding

Built-in thermal protector

Stainless steel welded shaft

Insulation class: B

Protection class: IP68

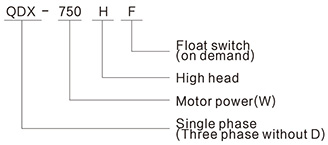

MODELPOWERAMPEREFLOW
(L/ Min)
HEAD
(m)
PIPEVOLTAGE
(V/HZ)
G. W
(kg)
PACKING DIMENSION
(mm)
KWHP
QDX-750H0.751.05.255501"220/5013420×230×200
QDX-1100H1.11.55.855601"220/5014.5420×230×200

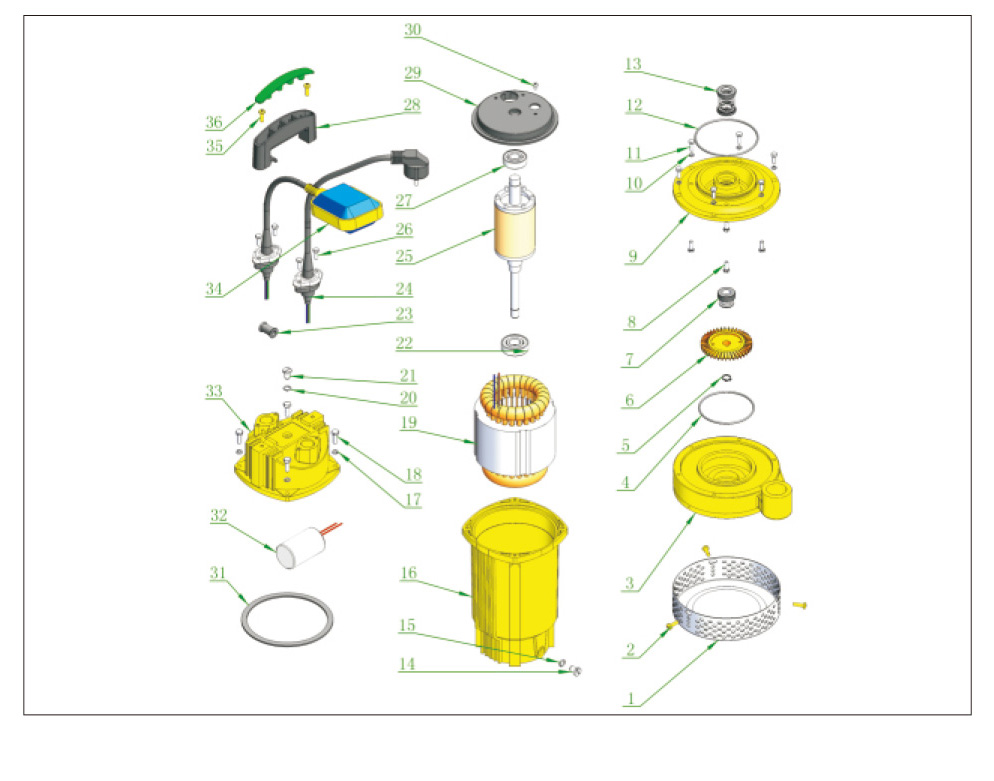

 No. Description No. Description No. Description
1 Strainer18 Screw35 Screw
2 Screw19 Stator36 Handle cover
3 Pump base20O-ring37
4O-ring21 Screw38
5 Plain washer22 Bearing39
6 Impeller23 Cable sheath40
7 Mechanical seal24 Cable and plug41
8 Screw25 Rotor42
9 Motor fore cover26 Screw43
10 Washer27 Bearing44
11 Screw28 Handle45
12O-ring29 Motor upper cover46
13 Mechanical seal30 Screw47
14 Air screw31 Rubber washer48
15O-ring32 Capacitor49
16 Motor case33 Upper cover50
17O-ring34 Float switch51
