TECHNICAL DATA:

-Pump

Cast iron pump body under special

anti-rust treatment

Max.immersion depth: 5 m

Max.liquid temperature: + 40 ℃

Liquid pH value: 6.5-8


-Motor

Copper winding

Built-in thermal protector

Stainless steel welded shaft

Insulation class: B

Protection class: IP68


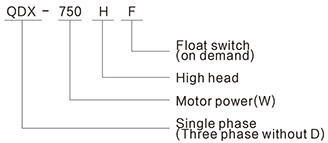

MODELPOWERAMPEREFLOW
(L/ Min)
HEAD
(m)
PIPEVOLTAGE
(V/HZ)
G. W
(kg)
PACKING DIMENSION
(mm)
KWHP

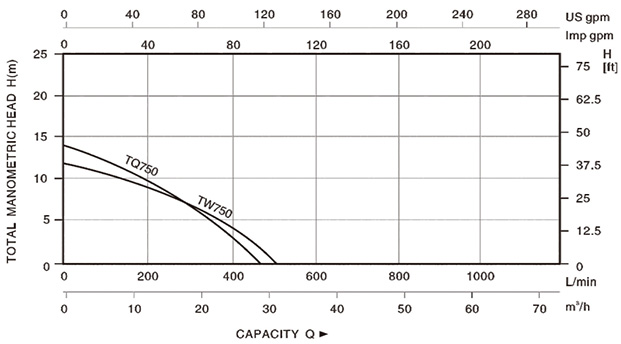

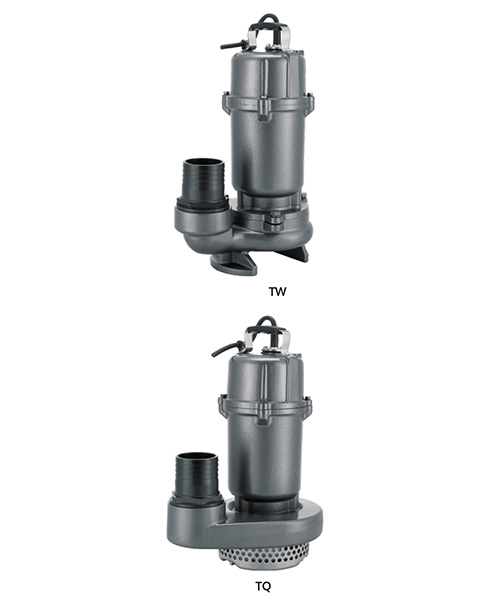

TQ7500.751.04.9450143"220/5020435×235×285
TW7500.751.05.2500123"220/5021435×235×305

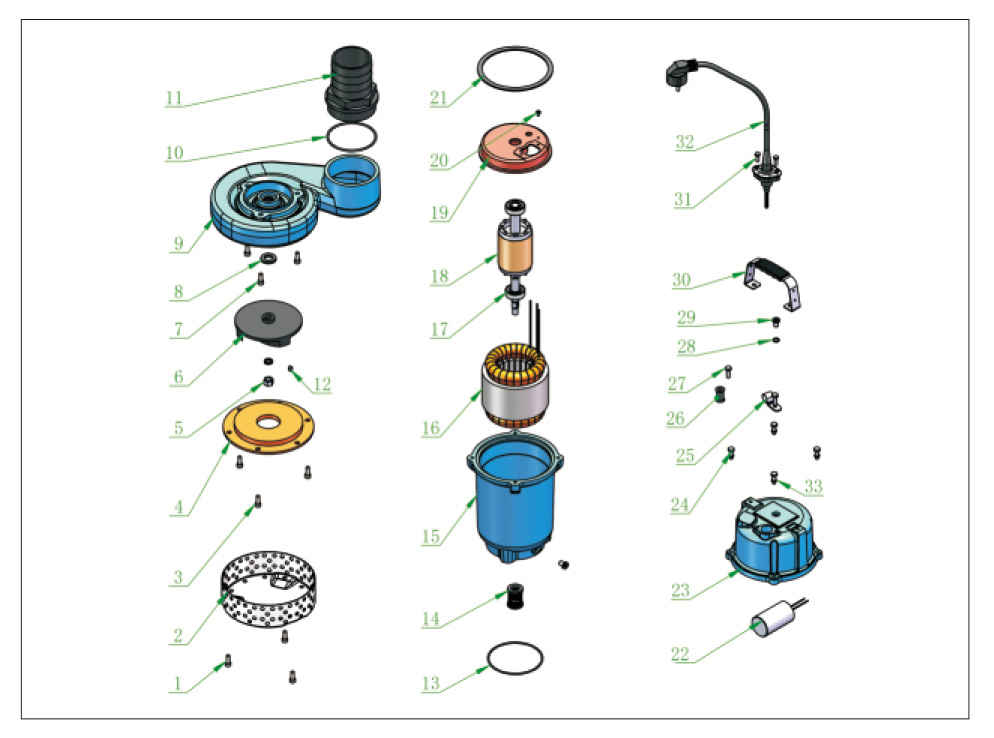

 No. Description No. Description No. Description
1 Screw18 Rotor

2 Strainer19 Motor cover

3 Screw20 Screw

4 Pump foot21 Rubber washer

5 Impleller nut22 Capacitor

6 Impeller23 Upper cover

7 Screw24 Screw

8 Skeleton oil seal25 Cable sheath

9 Pump body26 Rubber sheath

10O-ring27 Screw

11 Flange28O-ring

12 Key29 Screw

13O-ring30 Handle

14 Mechanical seal31 Screw

15 Motor case32 Cable line

16 Stator33 Washer

17 Bearing34
