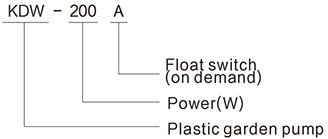

KDW
TECHNICAL DATA:
-Pump
Engineering plastic pump body
Float switch ensures automatic cut-in and cut-out
Max.immersion depth: 5 m
Max.liquid temperature: + 35 ℃
Max.diameter of particle: 5 mm
-Motor
Motor with copper winding
Built-in thermal protector
Insulation class: F
Protection class: IPX8

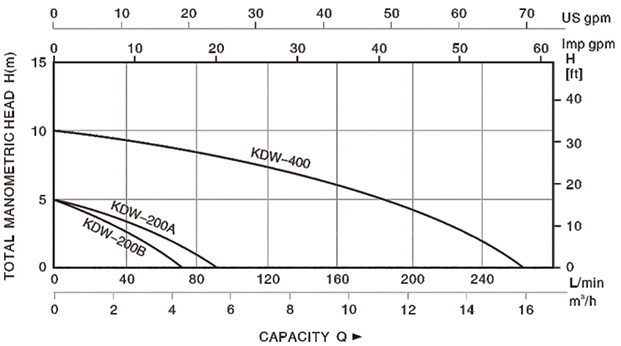

| MODEL | POWER | AMPERE | Max. FLOW (L/ Min) | Max. HEAD (m) | INLET/OUTLET IN | G. W (kg) | PACKING DIMENSION (mm) | QTY/20FT Set | |
| KW | HP | ||||||||

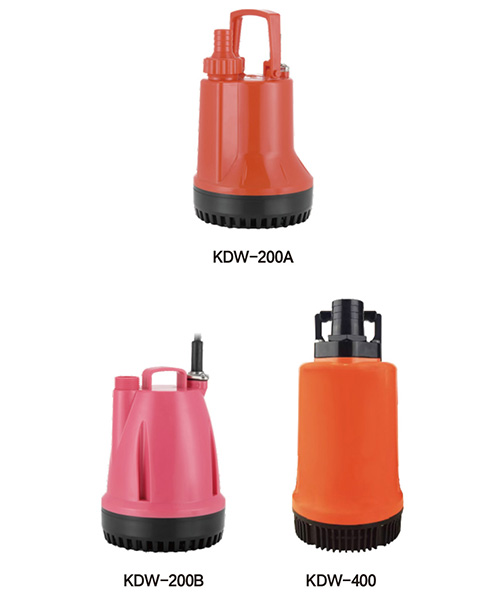

| KDW-200A | 0.2 | 0.27 | 0.9 | 95 | 5 | 1.25" | 3.2 | 205×180×325 | 2050 |
| KDW-200B | 0.2 | 0.27 | 0.9 | 70 | 5 | 1" | 3.2 | 205×180×325 | 2050 |
| KDW-400 | 0.4 | 0.53 | 4 | 260 | 10 | 2" | 5.6 | 420×210×350 | 1000 |

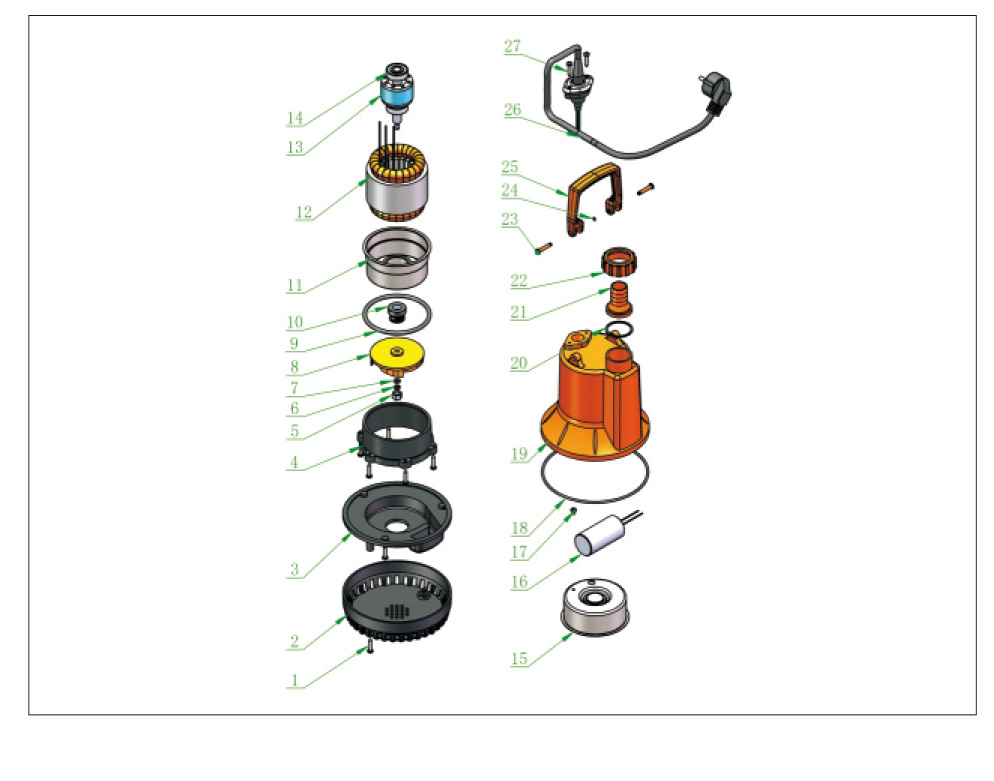

| No. | Description | No. | Description | No. | Description |
| 1 | Screw | 18 | O-ring | ||
| 2 | Strainer | 19 | Pump body | ||
| 3 | Pump foot | 20 | Rubber washer | ||
| 4 | Compression sleeve | 21 | Flange | ||
| 5 | Impeller nut | 22 | Nut cap | ||
| 6 | Plain washer | 23 | Pin | ||
| 7 | Flat washer | 24 | Retaining ring | ||
| 8 | Impleller | 25 | Handle | ||
| 9 | O-ring | 26 | Cable line | ||
| 10 | Mechanical seal | 27 | Screw | ||
| 11 | Motor case | ||||
| 12 | Stator | ||||
| 13 | Rotor | ||||
| 14 | Bearing | ||||
| 15 | Motor rear cover | ||||
| 16 | Capacitor | ||||
| 17 | Screw |
