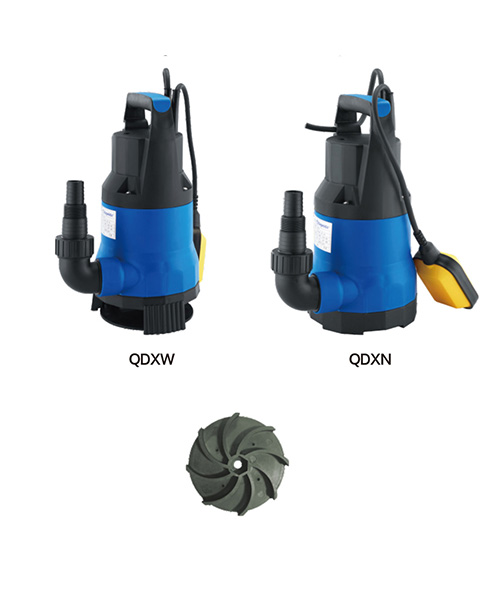

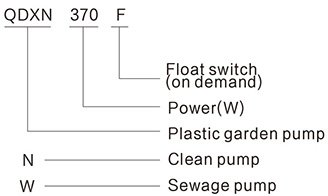

QDXN
TECHNICAL DATA:
-Pump
Engineering plastic pump body
Float switch ensures automatic cut-in and cut-out
Max.immersion depth: 5 m
Max.liquid temperature: + 35 ℃
Max.diameter of particle: 5 mm
-Motor
Motor with copper winding
Built-in thermal protector
Insulation class: F
Protection class: IPX8

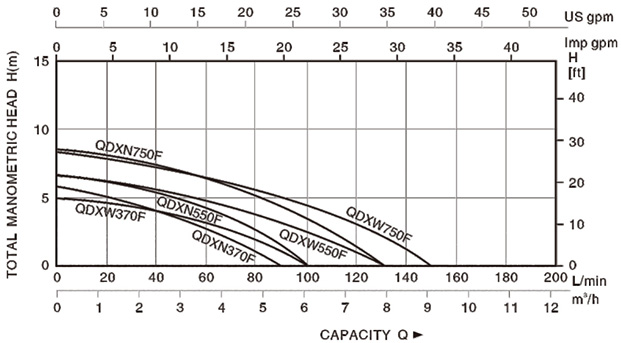

| MODEL | POWER | AMPERE | Max. FLOW (L/ Min) | Max. HEAD (m) | INLET/OUTLET IN | G. W (kg) | PACKING DIMENSION (mm) | QTY/20FT Set | |
| KW | HP | ||||||||
| QDXN370F | 0.37 | 0.5 | 1.2 | 90 | 6 | 1" | 3.5 | 205x180x325 | 2050 |
| QDXN550F | 0.55 | 0.75 | 1.5 | 100 | 7 | 1" | 4.0 | 205x180x325 | 2050 |
| QDXN750F | 0.75 | 1.0 | 2 | 130 | 8.5 | 1" | 4.2 | 205x180x325 | 2050 |
| QDXW370F | 0.37 | 0.5 | 1.6 | 100 | 5 | 1" | 4.0 | 220x160x350 | 2000 |
| QDXW550F | 0.55 | 0.75 | 1.8 | 130 | 7 | 1" | 4.2 | 220x160x350 | 2000 |
| QDXW750F | 0.75 | 1.0 | 2.5 | 150 | 8 | 1" | 4.5 | 220x160x350 | 2000 |

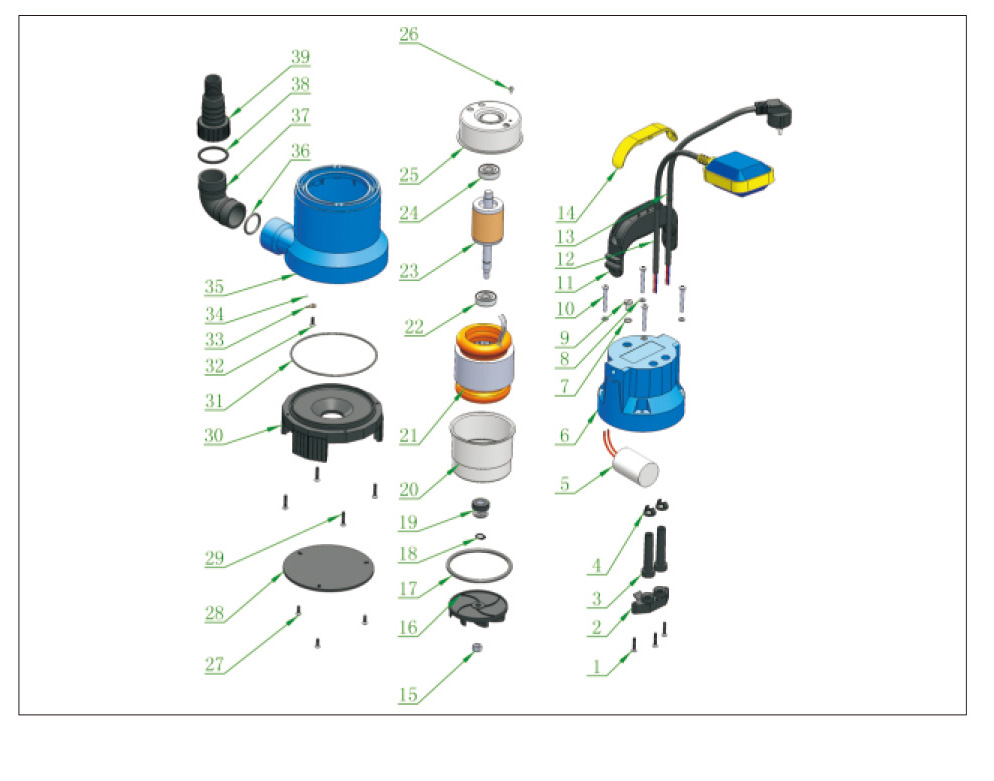

| No. | Description | No. | Description | No. | Description |
| 1 | Screw | 18 | Oil seal | 35 | Pump body |
| 2 | Pressplate | 19 | Mechanical seal | 36 | O-ring |
| 3 | Cable gland | 20 | Motor case | 37 | Elbow fitting |
| 4 | Cable clip | 21 | Stator | 38 | O-ring |
| 5 | Capacitor | 22 | Bearing | 39 | Outlet |
| 6 | Cover | 23 | Rotor | 40 | |
| 7 | Plain washer | 24 | Bearing | 41 | |
| 8 | Washer | 25 | Motor rearcover | 42 | |
| 9 | Nut | 26 | Screw | 43 | |
| 10 | Bolt | 27 | Screw | 44 | |
| 11 | Handle | 28 | Base board | 45 | |
| 12 | Float switch | 29 | Screw | 46 | |
| 13 | Cable and plug | 30 | Base | 47 | |
| 14 | Handle cover | 31 | O-ring | 48 | |
| 15 | Impeller nut | 32 | Screw | 49 | |
| 16 | Impeller | 33 | Plain washer | 50 | |
| 17 | O-ring | 34 | Steel ball | 51 |
