From ltaly to serve the world
SPA
TECHNICAL DATA:
-Pump
Max.immersion depth: 5 m
Max.liquid temperature: + 40 ℃
Liquid pH value: 6.5-8
-Motor
Copper winding
Built-in thermal protector
Insulation class: B
Protection class: IP68
| MODEL | POWER | AMPERE |
OUTLET (inch) |
VOLTAGE (V/HZ) |
MAX. FLOW (L/MIN) |
MAX. HEAD (M) |
G. W. (Kg) |
DIMENSIONS. (mm) |
|
| KW | HP | ||||||||
| SPA6-28/2-1.1F | 1.1 | 1.5 | 7.4 | 2" | 220/50 | 220 | 30 | 22 | 505×190×235 |
| SPA6-39/3-1.5F | 1.5 | 2.0 | 9.4 | 2" | 220/50 | 220 | 42 | 26.5 | 560×190×235 |
| SPA6-50/4-1.8F | 1.8 | 2.5 | 12.8 | 2" | 220/50 | 220 | 52 | 31.5 | 620×190×235 |

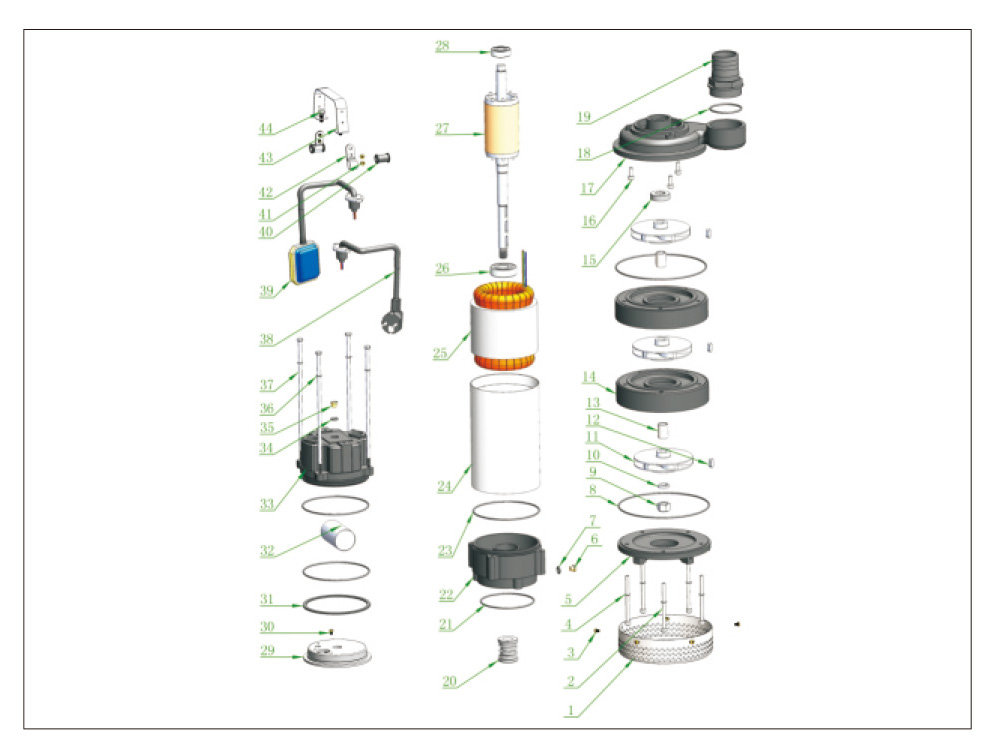

| N0. | Description | N0. | Description | N0. | Description |
|---|---|---|---|---|---|
| 1 | Strainer | 18 | O-ring | 35 | Screw |
| 2 | Bolt | 19 | Outlet | 36 | Washer |
| 3 | Screw | 20 | Mechanical seal | 37 | Hexagon screw |
| 4 | Washer | 21 | O-ring | 38 | Cable and plug |
| 5 | Pump foot | 22 | Oil chamber | 39 | Float switch |
| 6 | Screw | 23 | O-ring | 40 | Cable sheath |
| 7 | Washer | 24 | Motor bracket | 41 | Screw |
| 8 | O-ring | 25 | Stator | 42 | Cable gland |
| 9 | Impeller nut | 26 | Bearing | 43 | Handle |
| 10 | Plain washer | 27 | Rotor | 44 | Handle screw |
| 11 | Impeller | 28 | Bearing | 45 | |
| 12 | Key | 29 | Motor rear cover | 46 | |
| 13 | Cou pling | 30 | Screw | 47 | |
| 14 | Diffuser | 31 | Rubber washer | 48 | |
| 15 | Oil seal | 32 | Capacitor | 49 | |
| 16 | Screw | 33 | Upper cover | 50 | |
| 17 | Pump base | 34 | O-ring | 51 |
